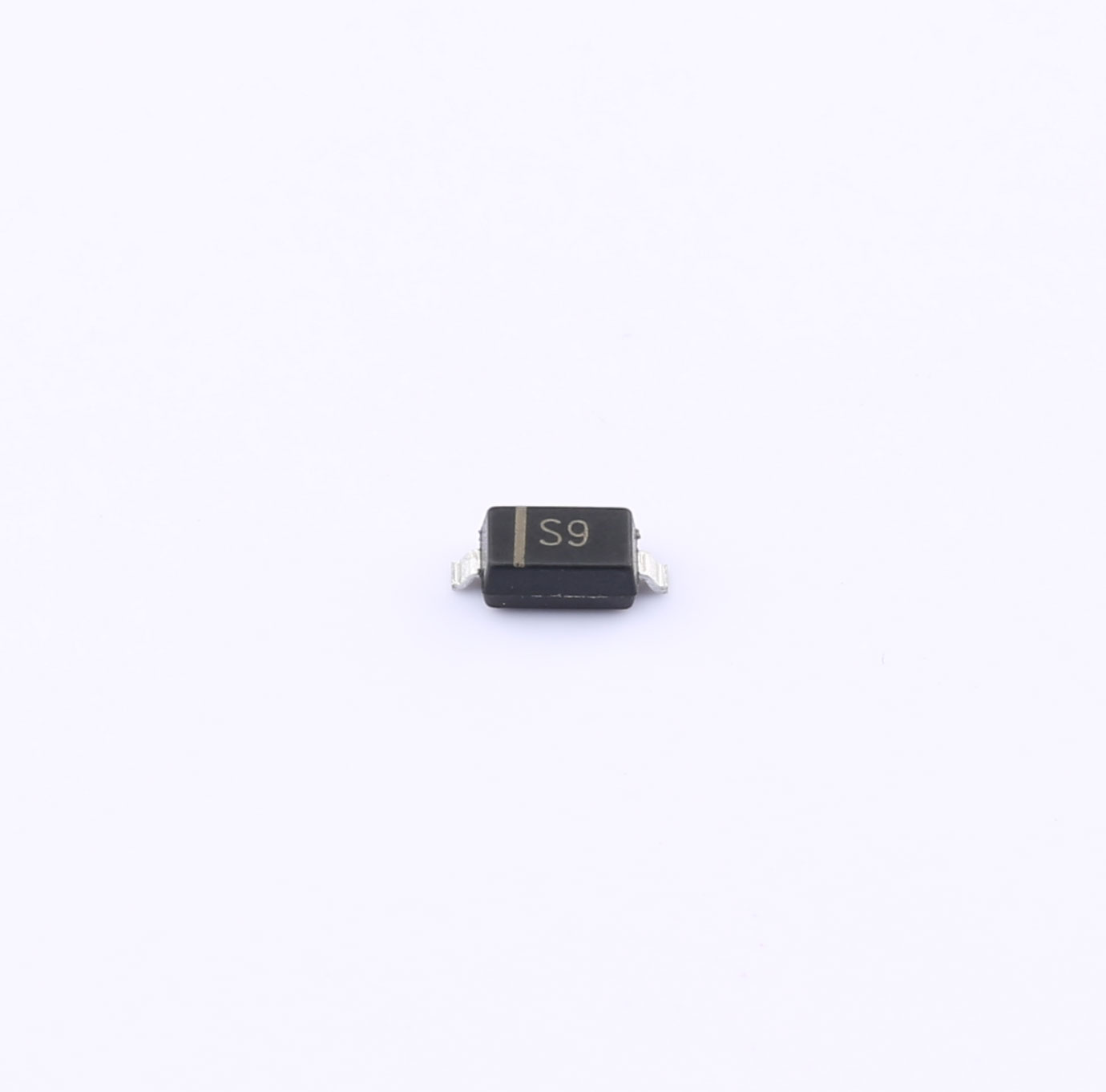

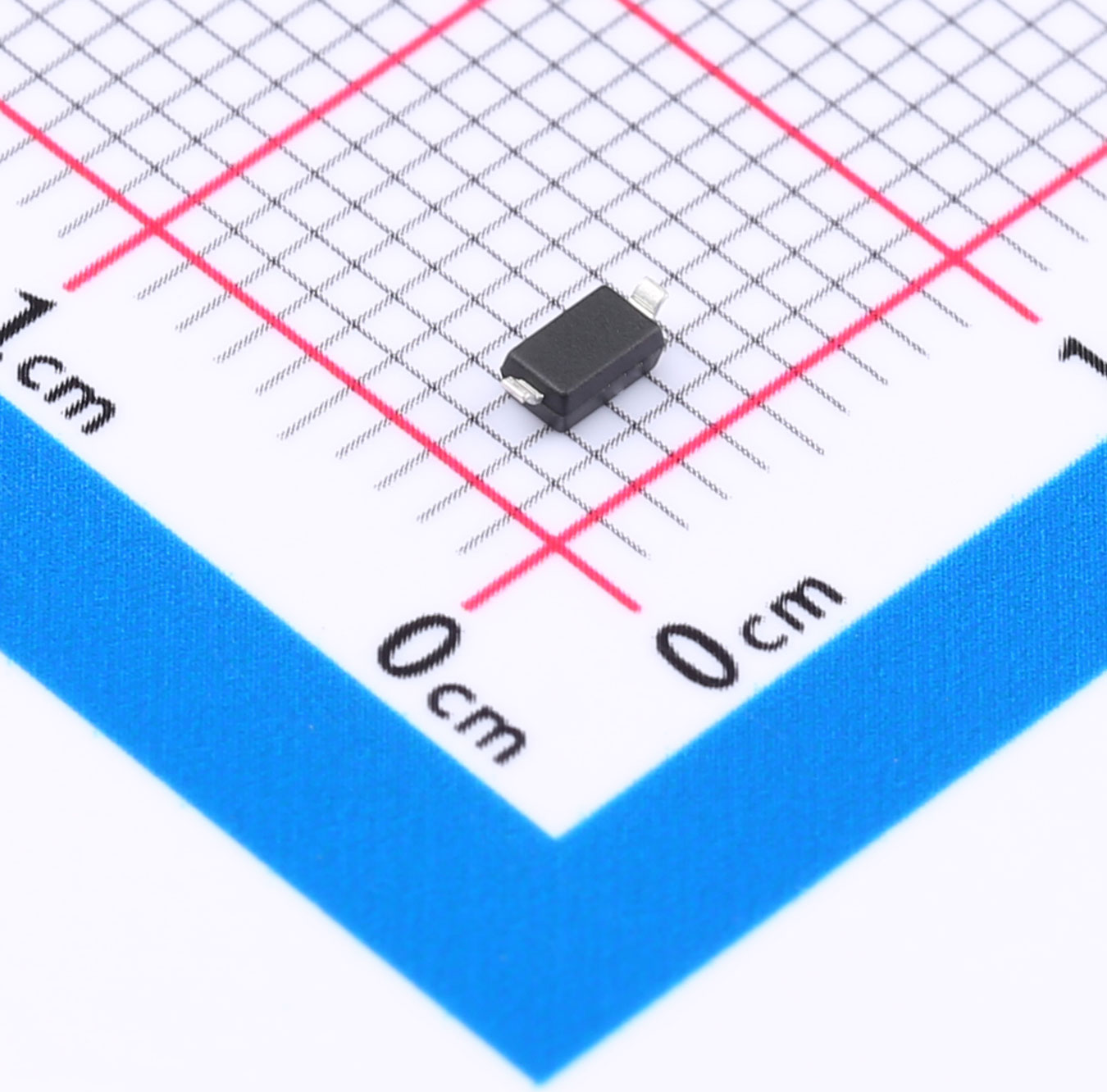

BAT46W Schottky Barrier Diodes SOD-123
Download datasheet Inquiry
FEATURES
? Low turn-on voltage
? Guard ring construction for transient protection
? High breakdown voltage
MECHANICAL DATA
? Case: SOD-123
? Terminals: Solderable per MIL-STD-750, Method 2026
? Approx. Weight:16mg/0.00056oz
| File Name | Title | Description |
|---|---|---|

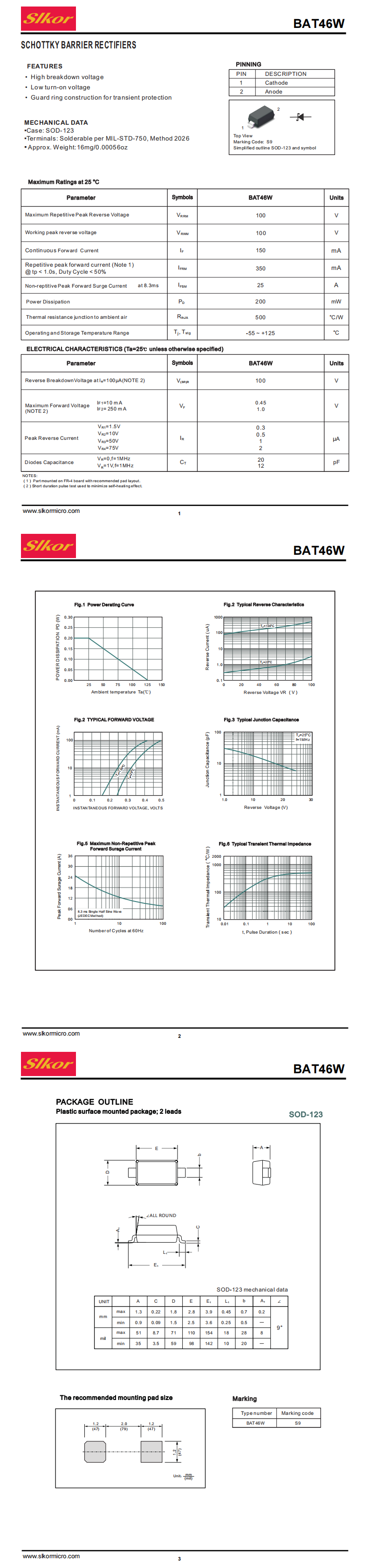

| BAT46W SOD-123.pdf | BAT46W SOD-123 | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
The Polar Low-Current Rectifier Diode is a compact and efficient component designed for applications requiring reliable rectification with low power consumption. It supports a continuous forward current of 350mA and has a maximum reverse voltage rating of 40V, making it suitable for various low-current applications. With a forward voltage drop of only 0.37V and a minimal reverse leakage current of 5μA, this diode ensures optimal performance and energy efficiency. The diode is housed in a SOD-123 package, offering a small footprint ideal for space-constrained designs.
