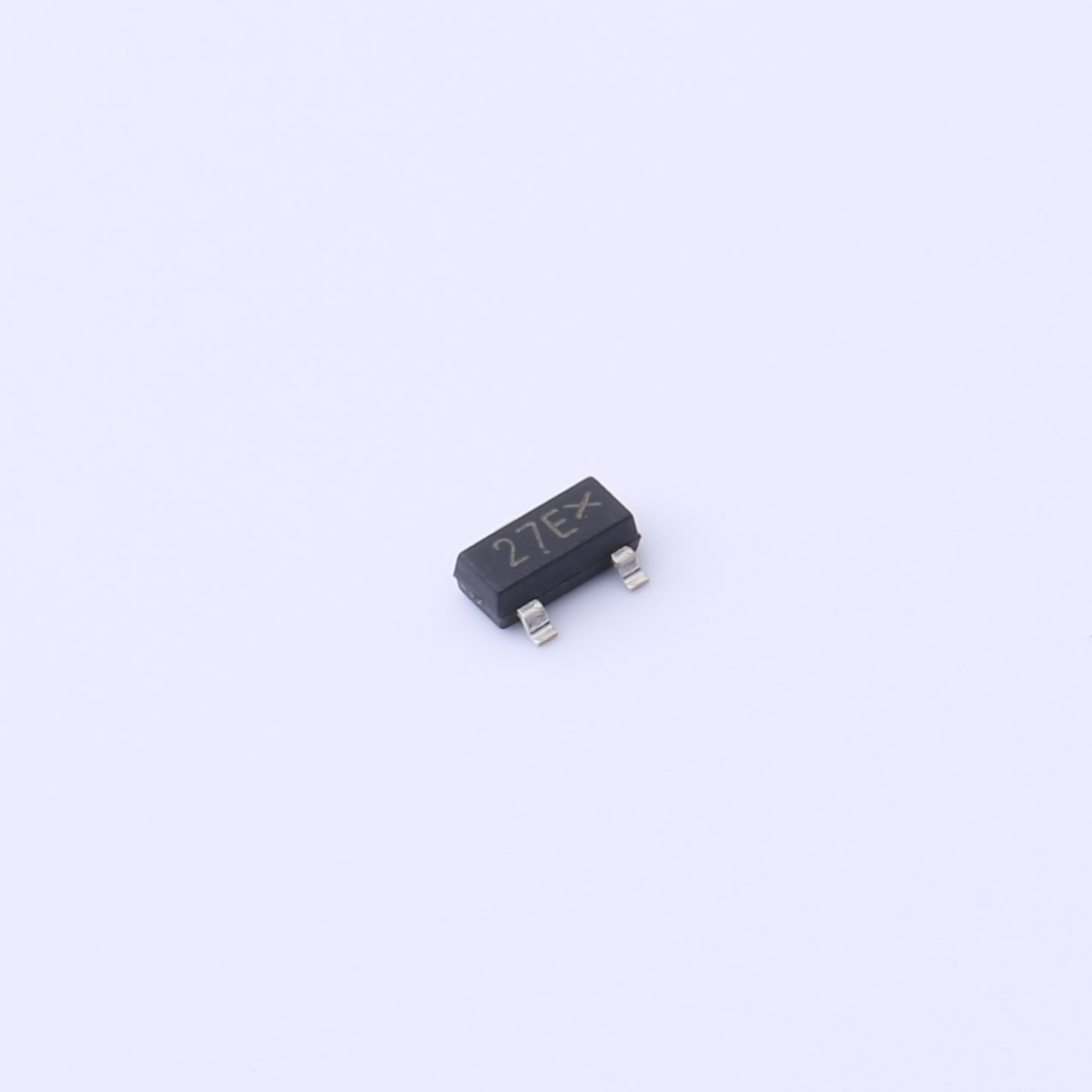

The SLESD2105L has been designed to protect the CAN transceiver in high-speed and fault tolerant networks from ESD and other harmful transient voltage events. This device provides bidirectional protection for each data line with a single compact SOT-23 package, giving the system designer a low cost option for improving system reliability and meeting stringent EMI requirements.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Slkor alternative equivalents to Onsemi.
| Onsemi | Slkor Replacements | ||
| Part Number | Part Number | Product Category | Package |
| 2N7002L | 2N7002 | MOSFET | SOT-23 |
| 2N7002LT1G | 2N7002 | MOSFET | SOT-23 |
| MMBZ12VAL | MMBZ12VA | TVS | SOT-23 |
| MMBZ15VDLT1G | MMBZ15VDLT1G | TVS | SOT-23 |
| NUP2105LT1G | SLESD2105L | ESD | SOT-23 |
| ESD5Z3.3T1G | SLESD5Z3V3 | ESD | SOD-523 |
| NUP2105LT1G | NUP2105LT1G | ESD | SOT-23 |
| NCV8402 | SL8402 | Smart Power Switches | SOT-223 |
| 6N136SDM | 6N136S | Optocoupler | SMD-8 |
| 6N137SDM | 6N137S | Optocoupler | SMD-8 |
| 6N136M | 6N136 | Optocoupler | DIP-8 |
| BAT54CT1G | BAT54C | Schottky Diodes | SOT-23 |
| LL4148 | LL4148 | TVS | LL-34 |
| MMBZ5V6AL | MMBZ5V6A | ESD | SOT-23 |
| MMBZ6V2AL | MMBZ6V2A | ESD | SOT-23 |
| MMBZ6V8AL | MMBZ6V8A | ESD | SOT-23 |
| ESDR0524P | RCLAMP0524P | ESD | DFN2510 |
| CAT4139 | SL4139 | DC-DC Regulator | SOT-23 |
| 6N137VM | 6N137 | Optocoupler | DIP-8 |
| HCPL0601 | SL0601 | Optocoupler | SOP-8 |
| FODM352 | SLM352 | Optocoupler | SOP-4 |
| BC817-25LT1G | BC807-25 | Bipolar Transistor | SOT-23 |
| SBC817-40LT1G | BC817-40 | Bipolar Transistor | SOT-23 |
| US1M | US1M | Fast Recovery Diode | SMA |
| RS1M | RS1M | Fast Recovery Diode | SMA |
| MBRF20200CTG | MBRF20200CT | Schottky Diodes | TO-220F |
| ES2D | ES2D | Fast Recovery Diode | SMA |
| 1SMB5923BT3G | 1SMB5923B | Zener Diode | SMB |
| 1SMB5924BT3G | 1SMB5924B | Zener Diode | SMB |
| 1SMB5925BT3G | 1SMB5925B | Zener Diode | SMB |
| TLF4949 | SL4949 | Linear Regulator(LDO) | SOP-8 |
| NCV4275C/NCV4290/NCV8675 | SL4275-G | Linear Regulator(LDO) | TO-263-5 |
| NCV8664/NCV4266-2C | SL4264-2 | Linear Regulator(LDO) | SOT-223 |
| NCV7800/NCV4274 | SL42744D | Linear Regulator(LDO) | TO-252-3 |
| NCV4276C | SL42764 | Linear Regulator(LDO) | TO-252-5 |
| NC7SB3157/FSA3157 | SL3157XC6 | Analog switches | SC-70-6 |
| NC7SB3157/FSA3157 | SL3157XT6 | Analog switches | SOT-23-6 |
Dual Line CAN Bus Protector
Description
The SLESD2105L has been designed to protect the CAN transceiver in high-speed and fault tolerant networks from ESD and other harmful transient voltage events. This device provides bidirectional protection for each data line with a single compact SOT-23 package, giving the system designer a low cost option for improving system reliability and meeting stringent EMI requirements.
Features
● IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
● IEC61000-4-4 (EFT) 40A (5/50ηs)
● IEC61000-4-5 (Lighting) 8.0A (8/20μs)
● 350 Watts Peak Pulse Power per (tp=8/20μs)
● Working voltages : 24V
● Low clamping voltage
● Low leakage current

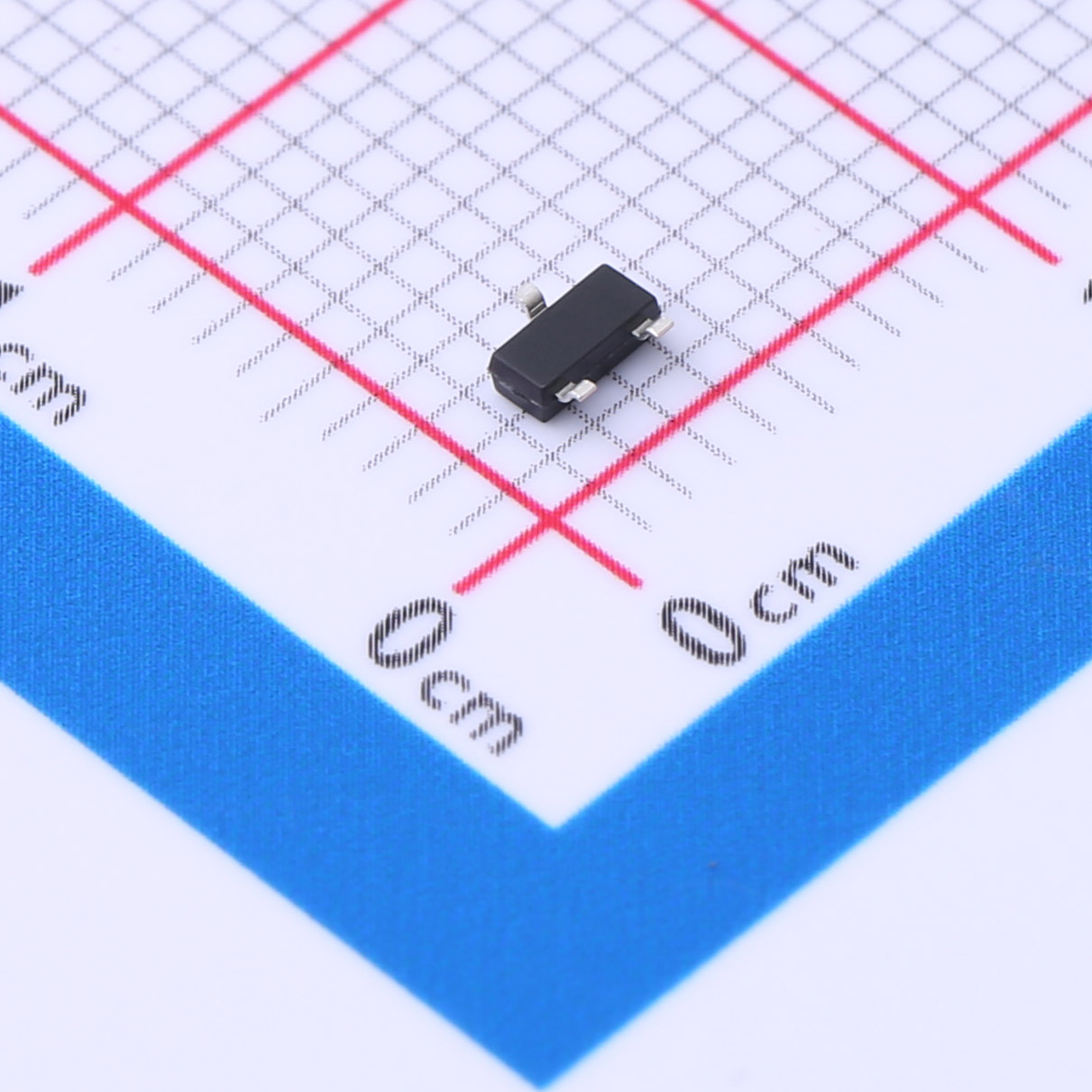

Mechanical Data
● SOT-23 package
● Flammability Rating: UL 94V-0
● Packaging: Tape and Reel
● High temperature soldering guaranted:260℃/10s
● Reel size: 7 inch
● Quantity per reel: 3,000pcs
Applications
● Industrial Control Networks
Smart Distribution Systems
● Automotive Networks
Low and High-Speed CAN
Fault Tolerant CAN

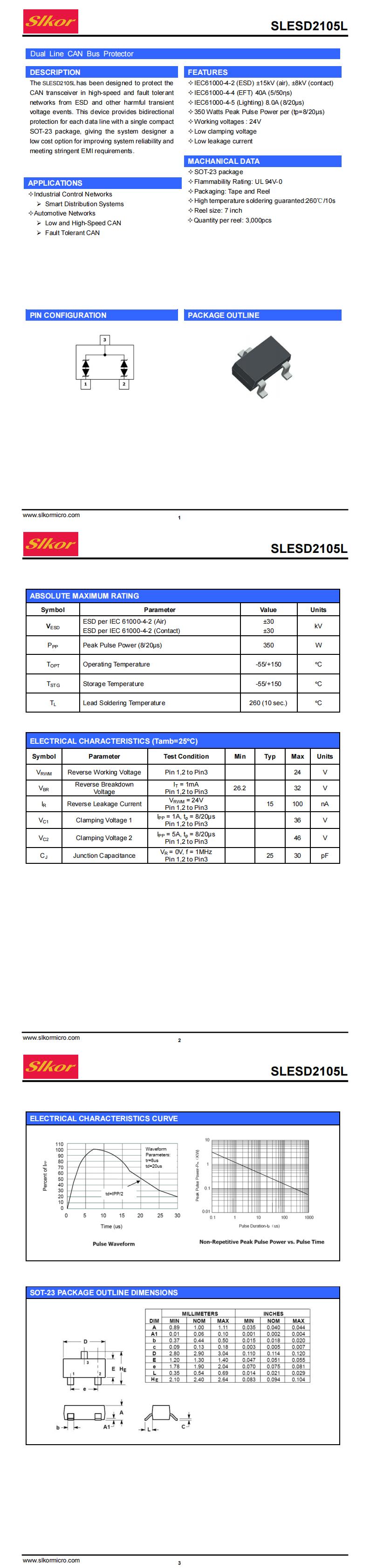

| File Name | Title | Description |
|---|---|---|
| SLESD2105L.pdf | SLESD2105L | - |
