SLESD03D6BN is a low-capacitance Transient Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection for data, control or power lines. With maximum capacitance of 16.5pF, SLESD03D6BN is designed to protect parasitic-sensitive systems against over-voltage and over-current transient events. It complies with IEC 61000-4-2 (ESD), Level 4 (±15kV air, ±8kV contact discharge), IEC 61000-4-4 (electrical fast transient - EFT) (40A, 5/50 ns), very fast charged device model (CDM) ESD and cable discharge event (CDE) etc. SLESD03D6BN uses ultra-small DFN0603 package. Each SLESD03D6BN device can protect one data line. It offers system designers flexibility to protect single data line where space is a premium concern.
Download datasheet Inquiry
Low capacitance Transient Voltage Suppressors for ESD protection
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Slkor alternative equivalents to NXP.
| NXP | Slkor Replacements | ||
| Part Number | Part Number | Product Category | Package |
| PESD5V0V1BSF | SLESD05D6CU | ESD | DFN0603 |
| PESD3V3V1BCSF | SLESD03D6BN | ESD | DFN0603 |
| PESD3V3R1BSF | SLESD03D6BU | ESD | DFN0603 |
| PESD5V0F1BL | SLESD0501BU | ESD | DFN1006 |
| PESD5V0S1BL | SLESD0501CM | ESD | DFN1006 |
| PESD3V3T1BL | SLESD0301M | ESD | DFN1006 |
| PCA82C250T | SL82C250T | CAN Transceiver | SOP-8 |
Description
SLESD03D6BN is a low-capacitance Transient Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection for data, control or power lines. With maximum capacitance of 16.5pF, SLESD03D6BN is designed to protect parasitic-sensitive systems against over-voltage and over-current transient events. It complies with IEC 61000-4-2 (ESD), Level 4 (±15kV air, ±8kV contact discharge), IEC 61000-4-4 (electrical fast transient - EFT) (40A, 5/50 ns), very fast charged device model (CDM) ESD and cable discharge event (CDE) etc. SLESD03D6BN uses ultra-small DFN0603 package. Each SLESD03D6BN device can protect one data line. It offers system designers flexibility to protect single data line where space is a premium concern.
Features
● Transient protection for high-speed data lines
IEC 61000-4-2 (ESD) ±30kV (Contact) ±30kV (Air)
IEC 61000-4-4 (EFT) 40A (5/50 ns)
● Peak power dissipation: 80W (8/20μs)
● Working voltages : 3.3V
● Ultra-small package (0.6mm?0.3mm?0.3mm)
● Protects one I/O line
● Low clamping voltage
● Low leakage current
Applications
● Personal digital assistants (PDA's)
● Notebooks, Desktops, and Servers
● Cell phone Handsets and Accessories
● Portable Electronics
● IOT Terminal Equipment/Device
● Smart Wearable Device
| File Name | Title | Description |
|---|---|---|

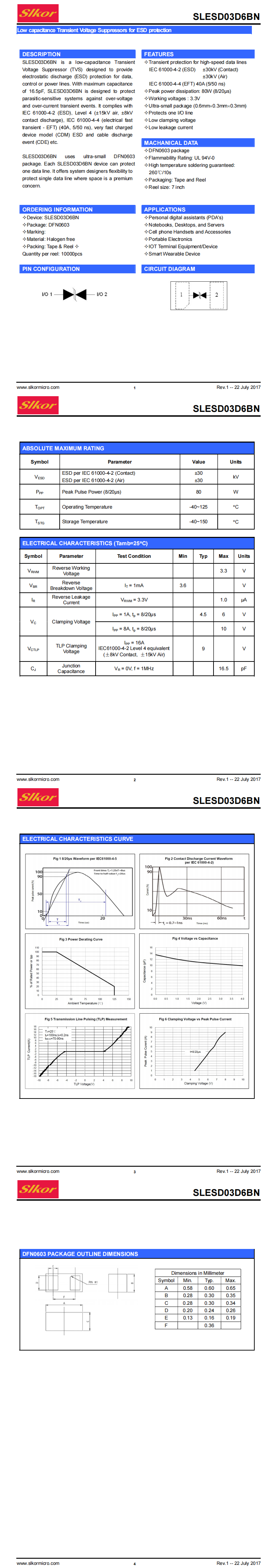

| SLESD03D6BN DFN0603.pdf | SLESD03D6BN DFN0603 | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
