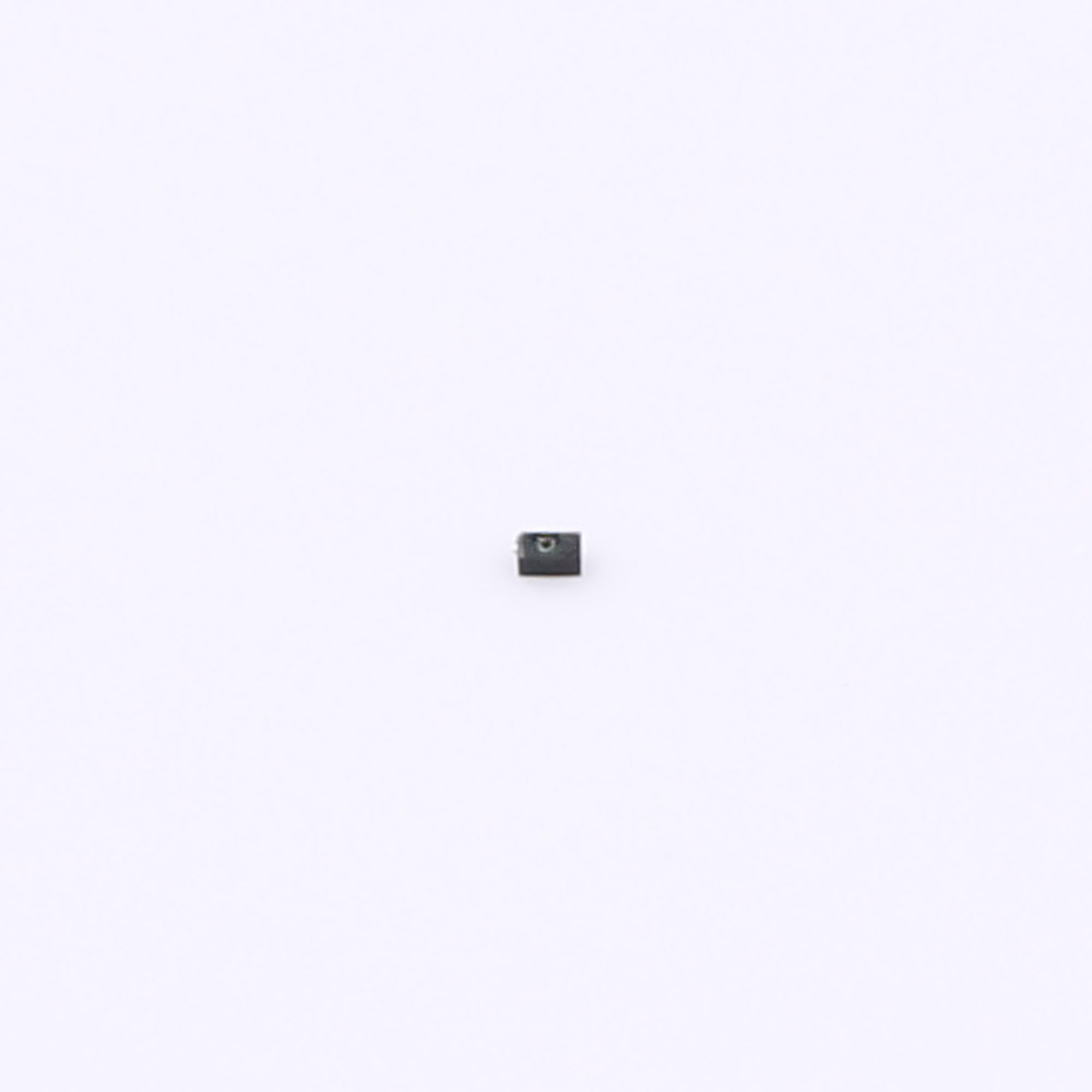

SLESD03D6BU is a low-capacitance Transient Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection for high-speed data interfaces. With typical capacitance of 0.25pF, SLESD03D6BU is designed to protect parasitic-sensitive systems against over-voltage and over-current transient events. It complies with IEC 61000-4-2 (ESD), Level 4 (±15kV air, ±8kV contact discharge), IEC 61000-4-4 (electrical fast transient - EFT) (40A, 5/50 ns), very fast charged device model (CDM) ESD and cable discharge event (CDE), etc. SLESD03D6BU uses ultra-small DFN0603 package. Each SLESD03D6BU device can protect one high-speed data line. It offers system designers flexibility to protect single data line where space is a premium concern. The combined features of low capacitance, ultra-small size and high ESD robustness make SLESD03D6BU ideal for high-speed data port and high-frequency line applications, such as cellular phones and HD visual devices.
Download datasheet Inquiry
Low capacitance Transient Voltage Suppressors for ESD protection
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Slkor alternative equivalents to NXP
| NXP | Slkor Replacements | ||
| Part Number | Part Number | Product Category | Package |
| PESD5V0V1BSF | SLESD05D6CU | ESD | DFN0603 |
| PESD3V3V1BCSF | SLESD03D6BN | ESD | DFN0603 |
| PESD3V3R1BSF | SLESD03D6BU | ESD | DFN0603 |
| PESD5V0F1BL | SLESD0501BU | ESD | DFN1006 |
| PESD5V0S1BL | SLESD0501CM | ESD | DFN1006 |
| PESD3V3T1BL | SLESD0301M | ESD | DFN1006 |
| PCA82C250T | SL82C250T | CAN Transceiver | SOP-8 |
Description
SLESD03D6BU is a low-capacitance Transient Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection for high-speed data interfaces. With typical capacitance of 0.25pF, SLESD03D6BU is designed to protect parasitic-sensitive systems against over-voltage and over-current transient events. It complies with IEC 61000-4-2 (ESD), Level 4 (±15kV air, ±8kV contact discharge), IEC 61000-4-4 (electrical fast transient - EFT) (40A, 5/50 ns), very fast charged device model (CDM) ESD and cable discharge event (CDE), etc. SLESD03D6BU uses ultra-small DFN0603 package. Each SLESD03D6BU device can protect one high-speed data line. It offers system designers flexibility to protect single data line where space is a premium concern. The combined features of low capacitance, ultra-small size and high ESD robustness make SLESD03D6BU ideal for high-speed data port and high-frequency line applications, such as cellular phones and HD visual devices.
Features
● Transient protection for high-speed data lines
IEC 61000-4-2 (ESD) ±15kV (Air) ±8kV (Contact)
IEC 61000-4-4 (EFT) 40A (5/50 ns) Cable Discharge Event (CDE)
● Package optimized for high-speed lines

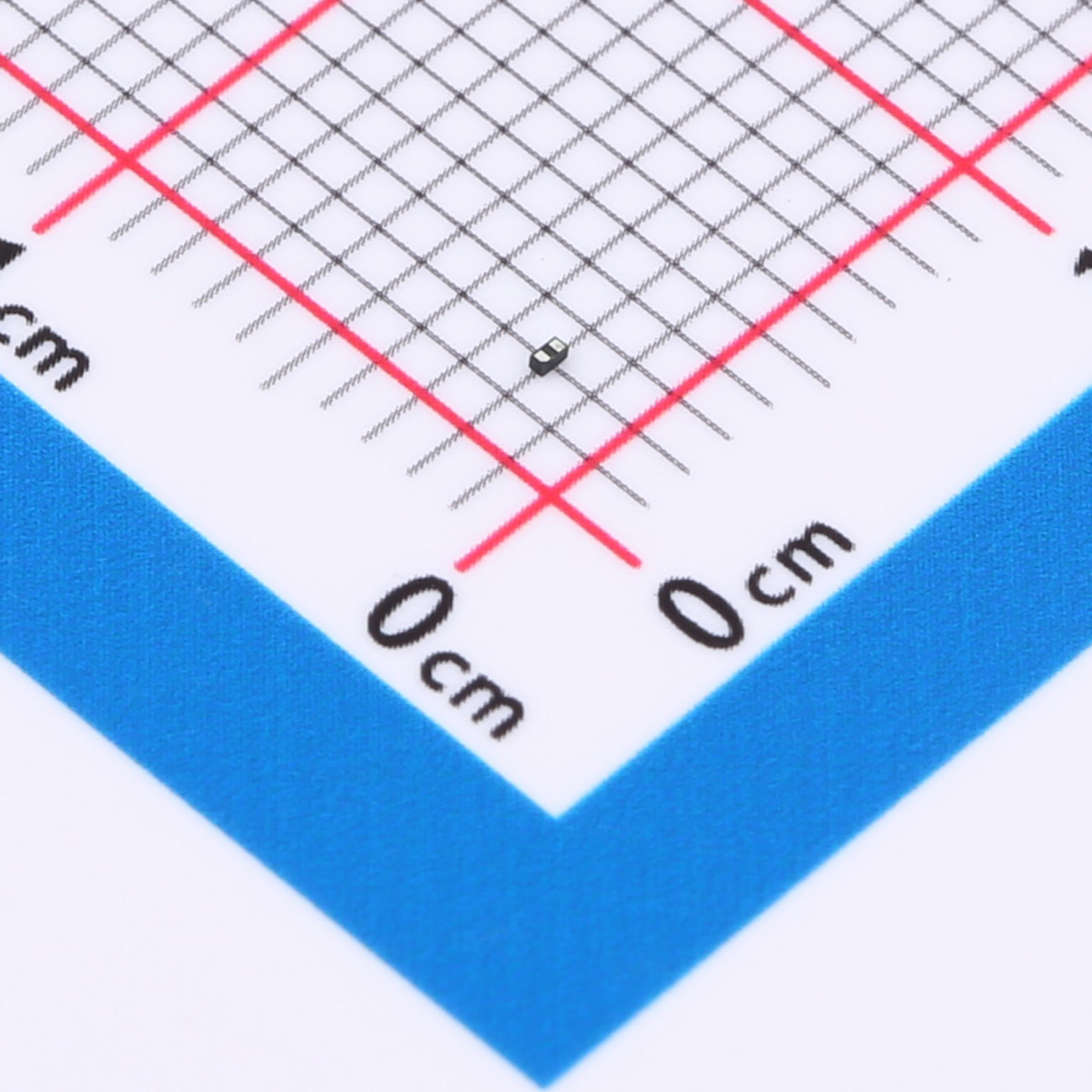

● Ultra-small package (0.6mm*0.3mm*0.3mm)
● Protects one data, control line
● Low capacitance: 0.25pF (Typical)
● Low leakage current
● Low clamping voltage
Applications
● Serial ATA
● Desktops, Servers and Notebooks
● Cellular Phones
● MDDI Ports
● USB Data Line Protection
● Display Ports
● Digital Visual Interfaces (DVI)
| File Name | Title | Description |
|---|---|---|

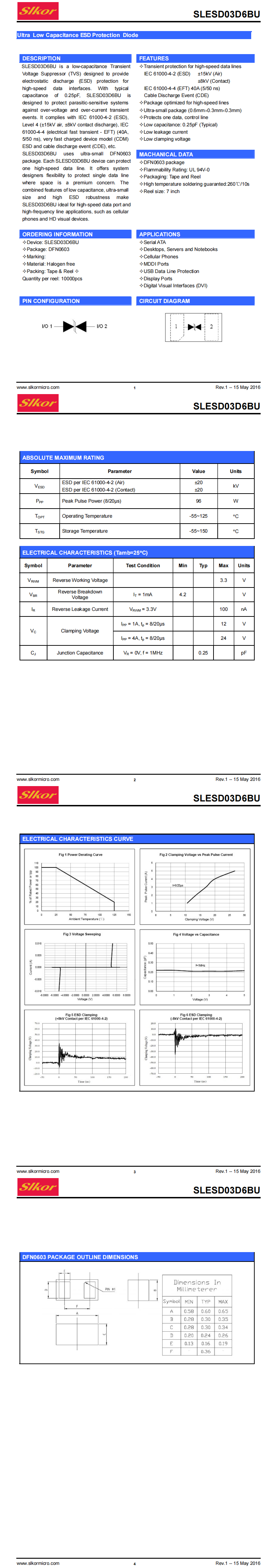

| SLESD03D6BU DFN0603.pdf | SLESD03D6BU DFN0603 | - |
