The 2SC4617 is a high-performance NPN bipolar junction transistor (BJT) designed for applications requiring precise signal amplification and high-frequency switching capabilities. Encapsulated in a TO-92L package, this transistor offers reliable operation with a maximum collector-emitter voltage (Vceo) of 50V and a maximum continuous collector current (Ic) of 0.1A. With a power dissipation (Pd) rating of 125mW and an impressive transition frequency (fT) of 180MHz, the 2SC4617 excels in circuits demanding high-speed performance and efficient signal processing.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description:
The 2SC4617 is a high-performance NPN bipolar junction transistor (BJT) designed for applications requiring precise signal amplification and high-frequency switching capabilities. Encapsulated in a TO-92L package, this transistor offers reliable operation with a maximum collector-emitter voltage (Vceo) of 50V and a maximum continuous collector current (Ic) of 0.1A. With a power dissipation (Pd) rating of 125mW and an impressive transition frequency (fT) of 180MHz, the 2SC4617 excels in circuits demanding high-speed performance and efficient signal processing.
Features:
Reduces board space.
High hFE,210-460(typical).
Low VCE(sat),<0.5V.
z Available in 8mm,7-inch/3000 Unit Tape and reel.
Applications:
General purpose switching and amplification.
| File Name | Title | Description |
|---|---|---|

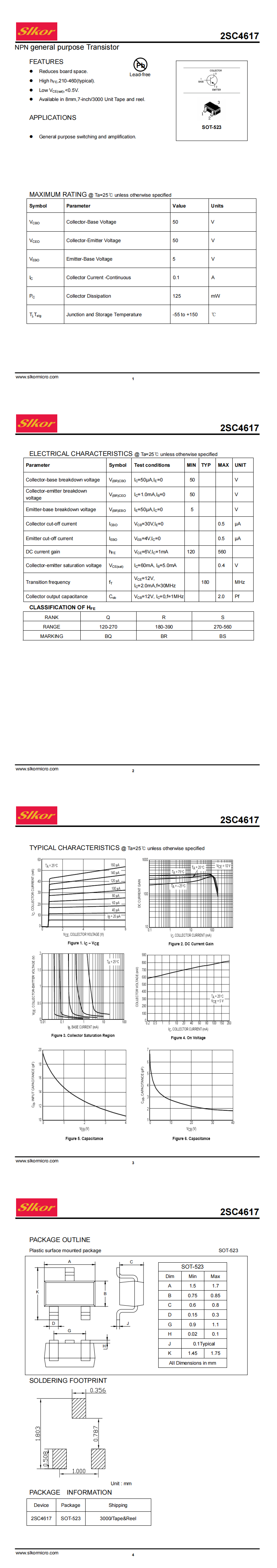

| 2SC4617 SOT-523.pdf | 2SC4617 SOT-523 | - |
