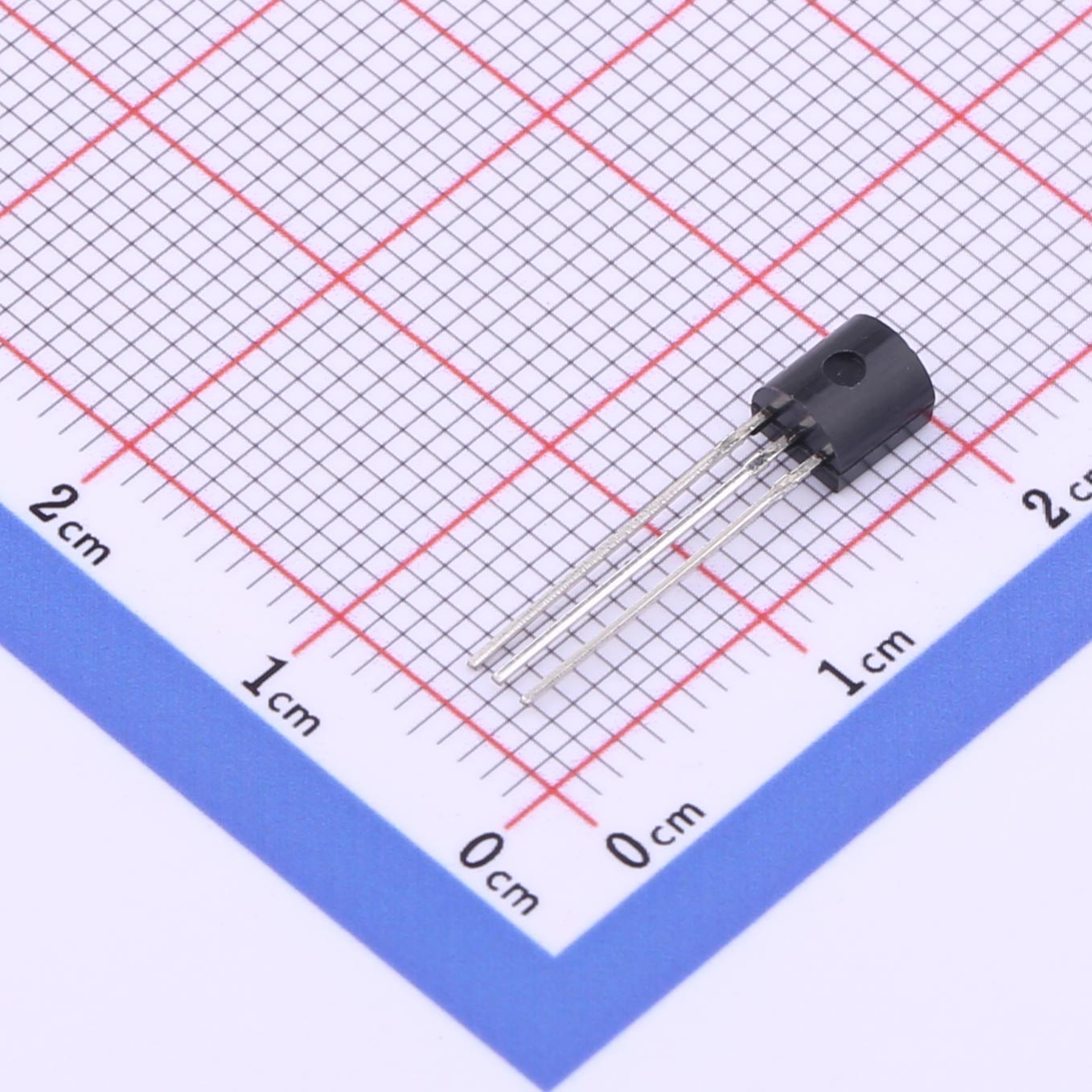

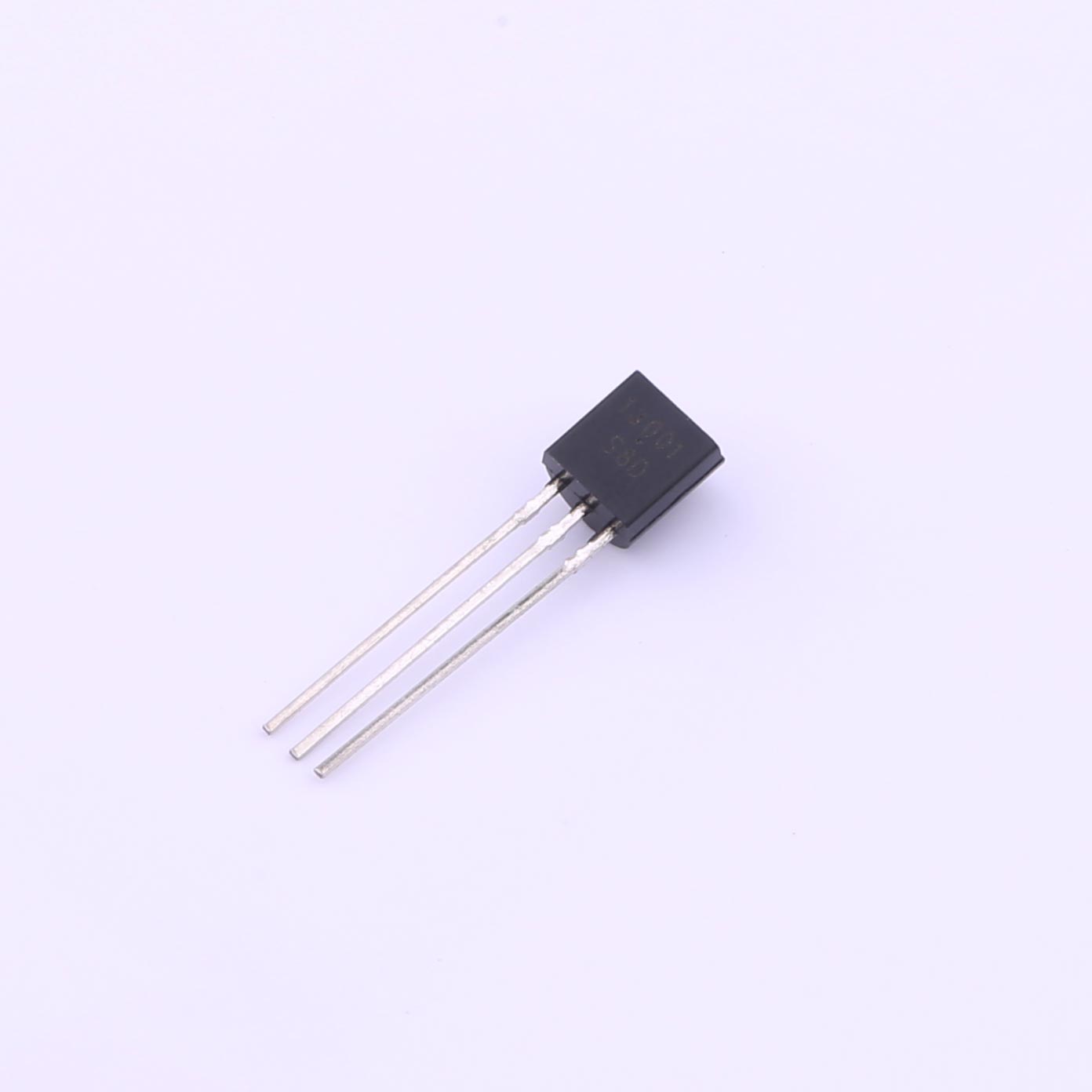

The Polar NPN High-Voltage Transistor is designed for robust performance in high-voltage applications. With a collector-emitter voltage rating (Vceo) of 450V and a maximum collector current (Ic) of 0.2A, this transistor is ideal for power switching and amplification tasks. It features a power dissipation (Pd) capability of 0.625W and a low collector-emitter saturation voltage (VCE(sat)) of 0.4V at 50mA collector current and 10mA base current. The transistor also provides a transition frequency (fT) of 8MHz, ensuring effective operation at high frequencies. Its durability and efficiency make it a reliable choice for demanding electronic systems.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The Polar NPN High-Voltage Transistor is designed for robust performance in high-voltage applications. With a collector-emitter voltage rating (Vceo) of 450V and a maximum collector current (Ic) of 0.2A, this transistor is ideal for power switching and amplification tasks. It features a power dissipation (Pd) capability of 0.625W and a low collector-emitter saturation voltage (VCE(sat)) of 0.4V at 50mA collector current and 10mA base current. The transistor also provides a transition frequency (fT) of 8MHz, ensuring effective operation at high frequencies. Its durability and efficiency make it a reliable choice for demanding electronic systems.
Features
● Power switching applications
Applications
● Power Amplifiers
● Switching Circuits
● Industrial Control Systems
● Audio Equipment
● Power Supply Regulators
| File Name | Title | Description |
|---|---|---|

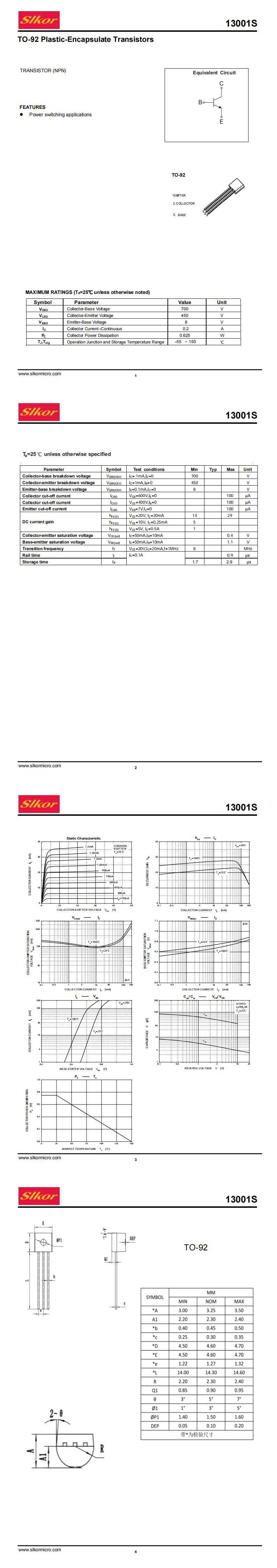

| 13001S TO-92.pdf | 13001S TO-92 | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
Introducing the 2N5551 NPN Bipolar Transistor, a high-performance component designed for demanding electronic applications. Housed in a TO-92 package, this transistor offers a maximum collector-emitter voltage (Vceo) of 160V and supports a collector current (Ic) of up to 0.6A. With a power dissipation capability of 625mW and a low saturation voltage (VCE(sat)) of 0.2V, it ensures efficient operation. The 2N5551 also boasts an impressive transition frequency (fT) of 300MHz, making it suitable for high-frequency applications.
Silicon NPN transistor in a TO-92 Plastic Package.
The 2N3906 is a versatile NPN bipolar transistor renowned for its reliability and efficiency in various electronic circuits. Encapsulated in a TO-92 package, this transistor is designed to handle a maximum collector-emitter voltage (Vceo) of -40V and a continuous collector current (Ic) of -200mA. With a power dissipation (Pd) rating of 625mW, it efficiently manages heat dissipation under typical operating conditions. The 2N3906 features a high transition frequency (fT) of 250MHz, making it suitable for applications requiring high-speed switching and signal amplification.
Vceo:12V Ic:100mA Pd:1000mW VCE:- fT:10GHz Working temperature:150℃@(Tj)
Vceo:6V Ic:80mA Pd:380mW VCE:- fT:11GHz Working temperature:150℃@(Tj)
Vceo:12V Ic:100mA Pd:150mW VCE:- fT:8GHz Working temperature:150℃@(Tj)
Vceo:4.5V Ic:100nA Pd:135mW VCE:- fT:25GHz Working temperature:150℃@(Tj)
Vceo:15V Ic:300mA Pd:2000mW VCE(sat):- fT:8.5GHz Working temperature:-40℃~150℃@(Tj)
