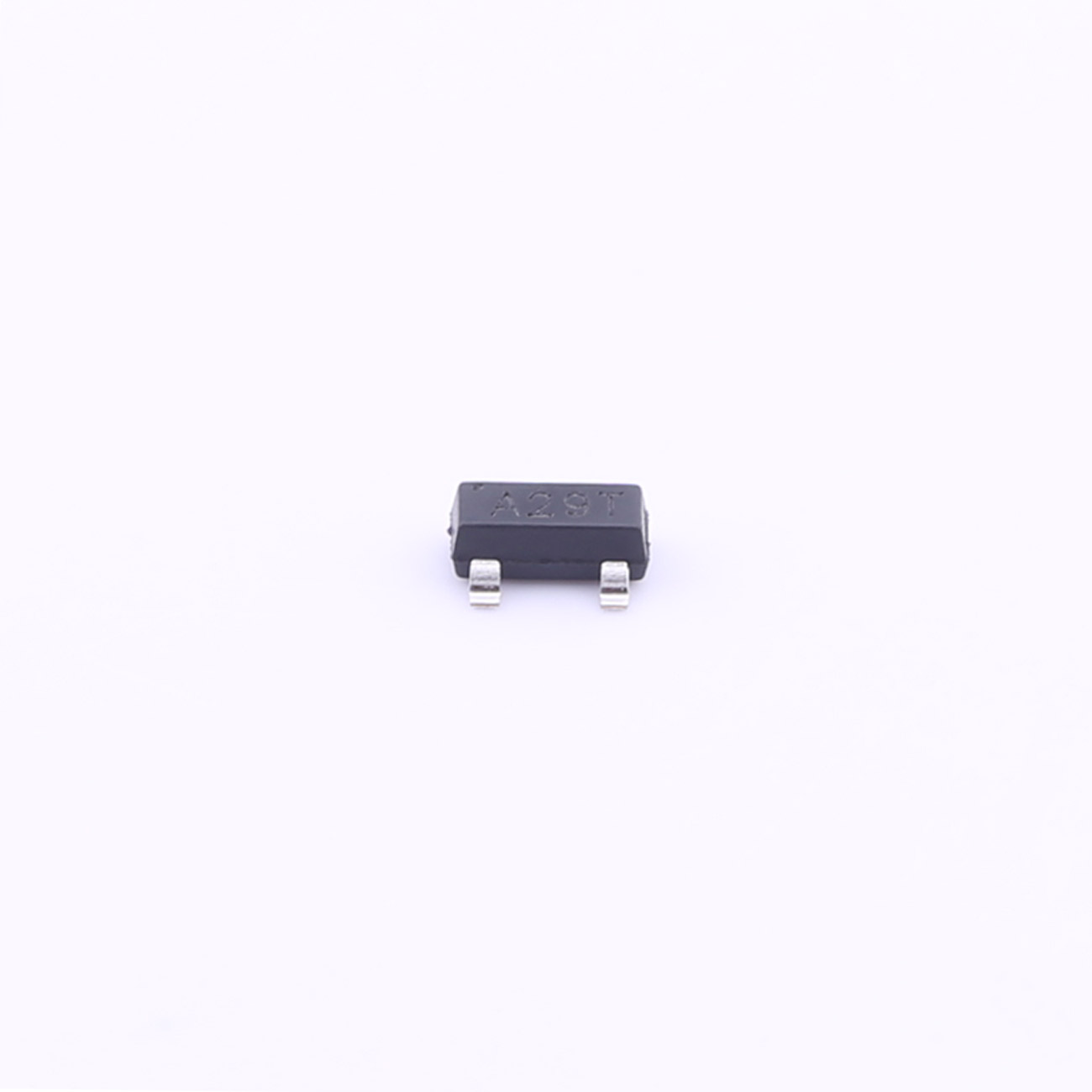

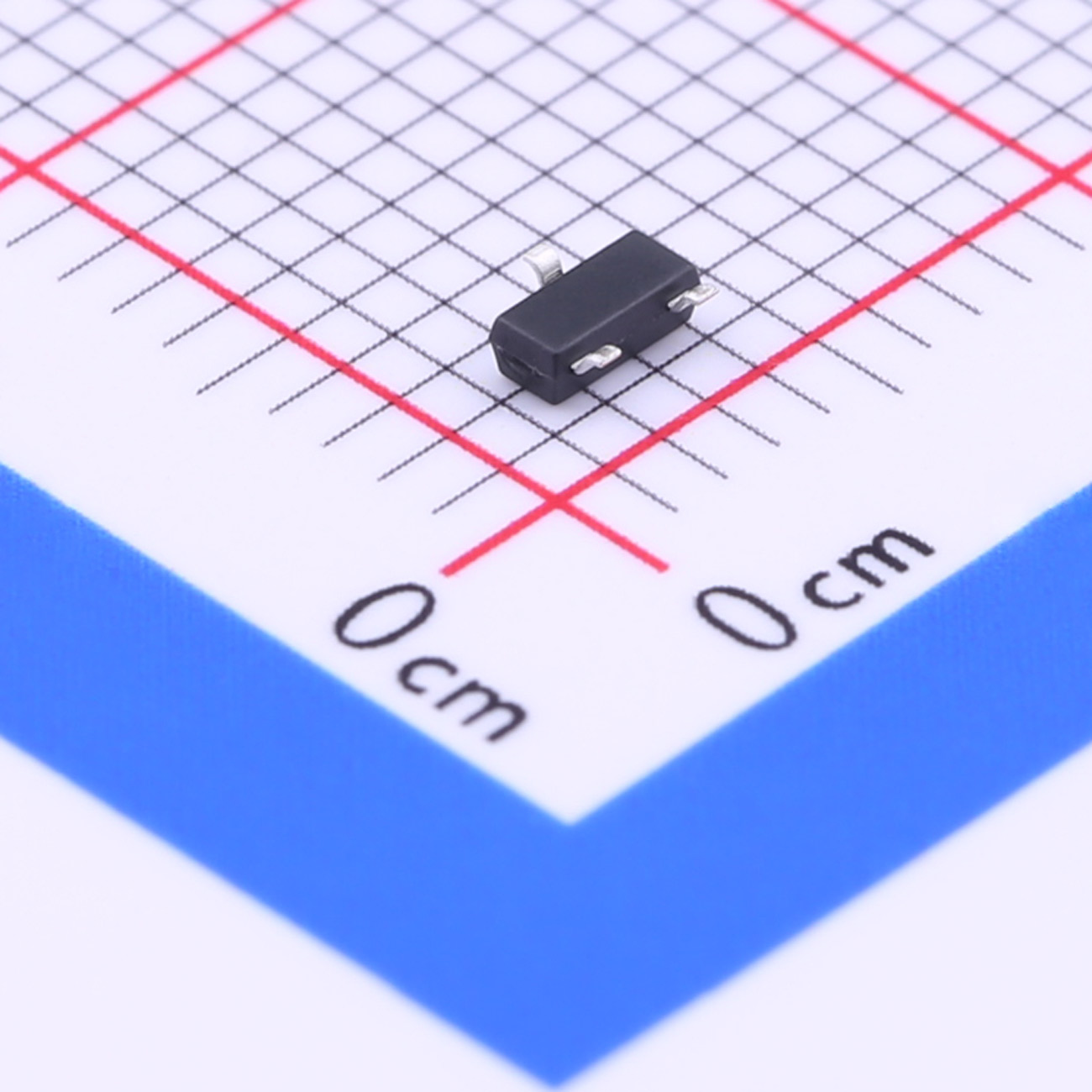

● Compact Size: SOT-23 package ideal for space-constrained designs.
● Low RDS(on): Efficient switching with 140mΩ RDS(on) at Vgs 4.5V.
● Power Dissipation: 900mW suitable for low-power applications.
General Features
● VDS=30W.ld=4A
RDS(ON)<60mΩ @VGS=4.5V
RDS(ON)<50mΩ @VGS=10V
Application
● DC Fan
● Charger,Fast switch
● Optimized for Power Management Applications
for Portable Products,such as H-bridge,Inverters
Car Charger and Others
| File Name | Title | Description |
|---|---|---|
| SL3402.pdf | SL3402 | - |
| Proposition-65-Compliance-Report_1.pdf | Proposition 65 Compliance Report_1 | - |
| Proposition-65-Compliance-Report_2.pdf | Proposition 65 Compliance Report_2 | - |
| REACH.pdf | REACH | - |
| RoHS-1.pdf | RoHS | - |
