● Surface Mount Package
● N-Channel Switch with Low RDS(on)
● Operated at Low Logic Level Gate Drive

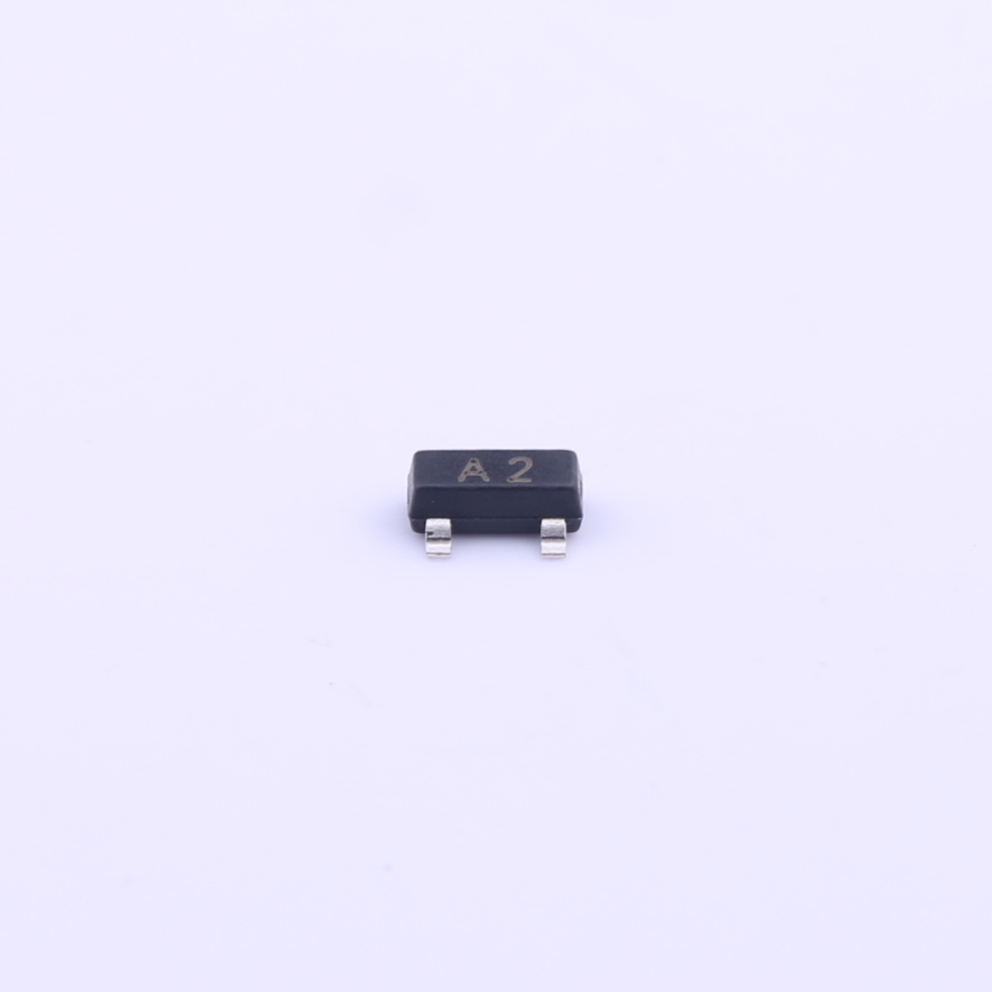

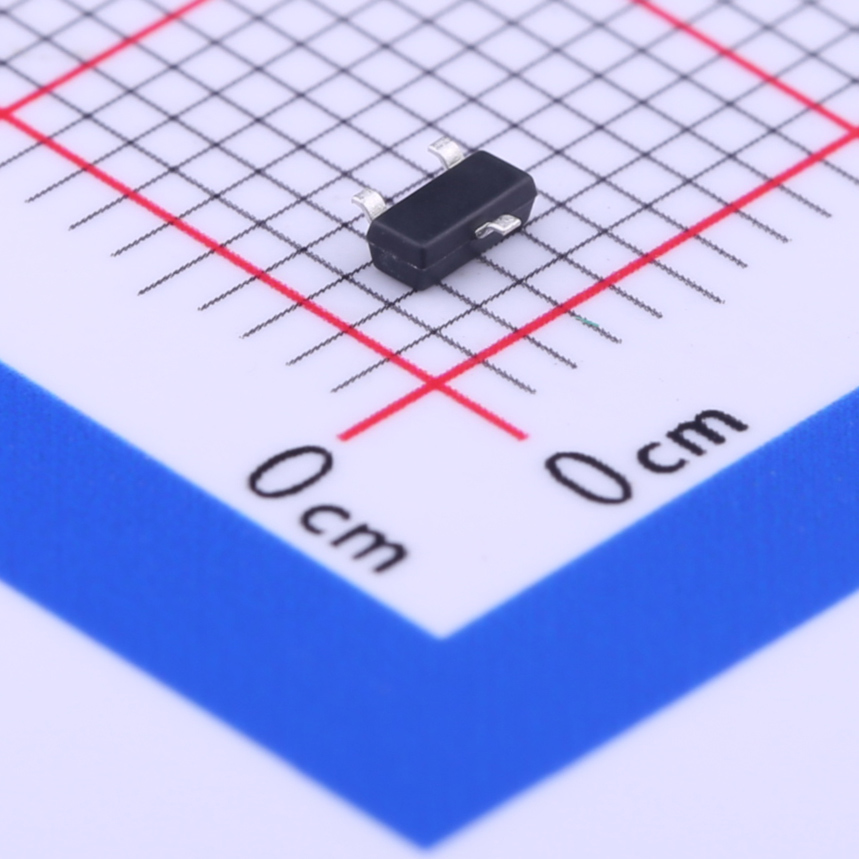

20V N-Channel MOSFET
Product Summary
| V(BR)DSS | RDS(on)MAX | ID |
| 20V | 110mΩ@4.5V | 1.2A |
| 150mΩ@2.5V | ||
Feature
● Surface Mount Package
● N-Channel Switch with Low RDS(on)
● Operated at Low Logic Level Gate Drive
● ESD Protected
Application
● Load/Power Switching
● Interfacing Switching
● Battery Management for Ultra Small Portable Electronics
● Logic Level Shift
| File Name | Title | Description |
|---|---|---|
| SL2302M.PDF | SL2302M | - |
| Proposition-65-Compliance-Report_1.pdf | Proposition 65 Compliance Report_1 | - |
| REACH.pdf | REACH | - |
| Proposition-65-Compliance-Report_2.pdf | Proposition 65 Compliance Report_2 | - |
| RoHS-1.pdf | RoHS | - |
