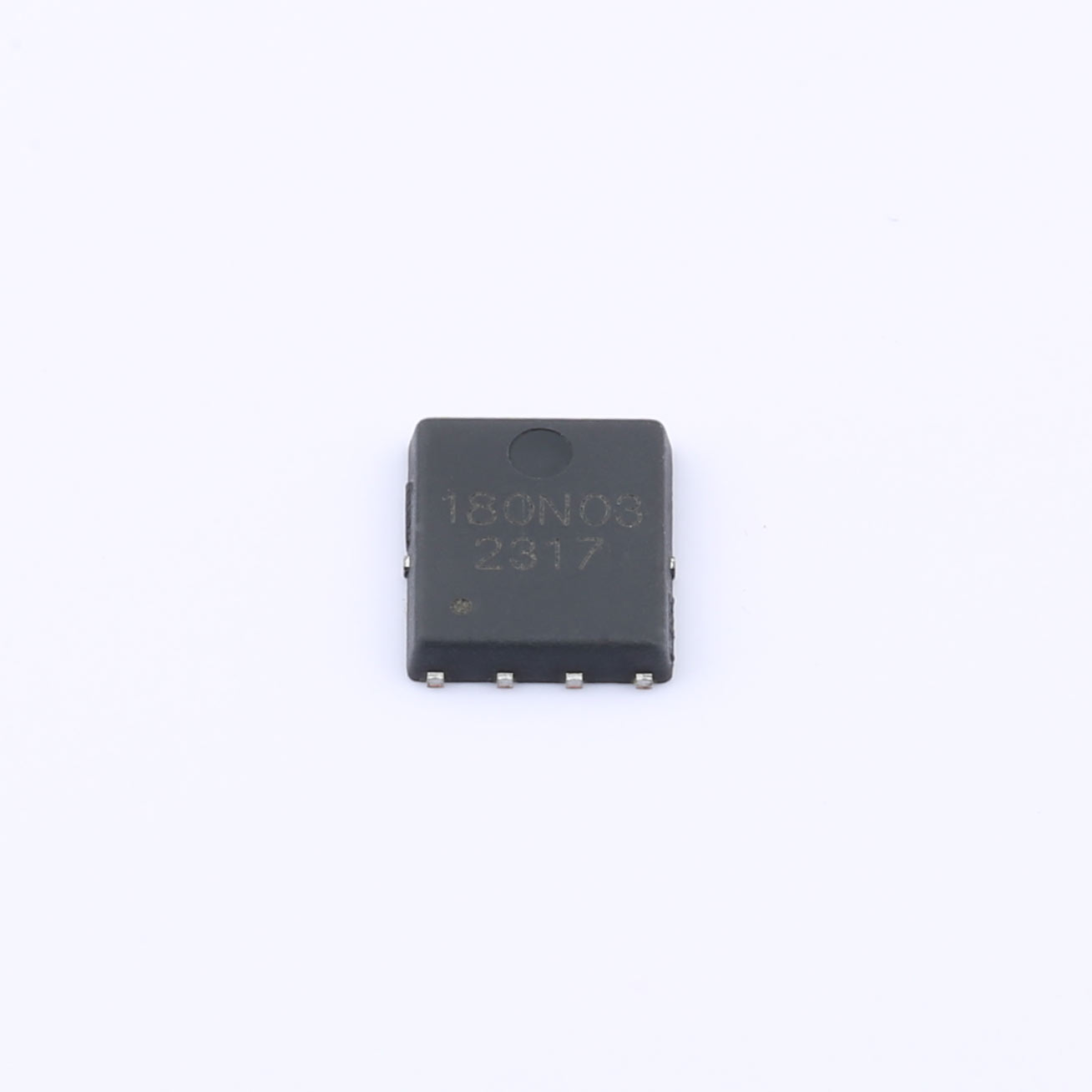

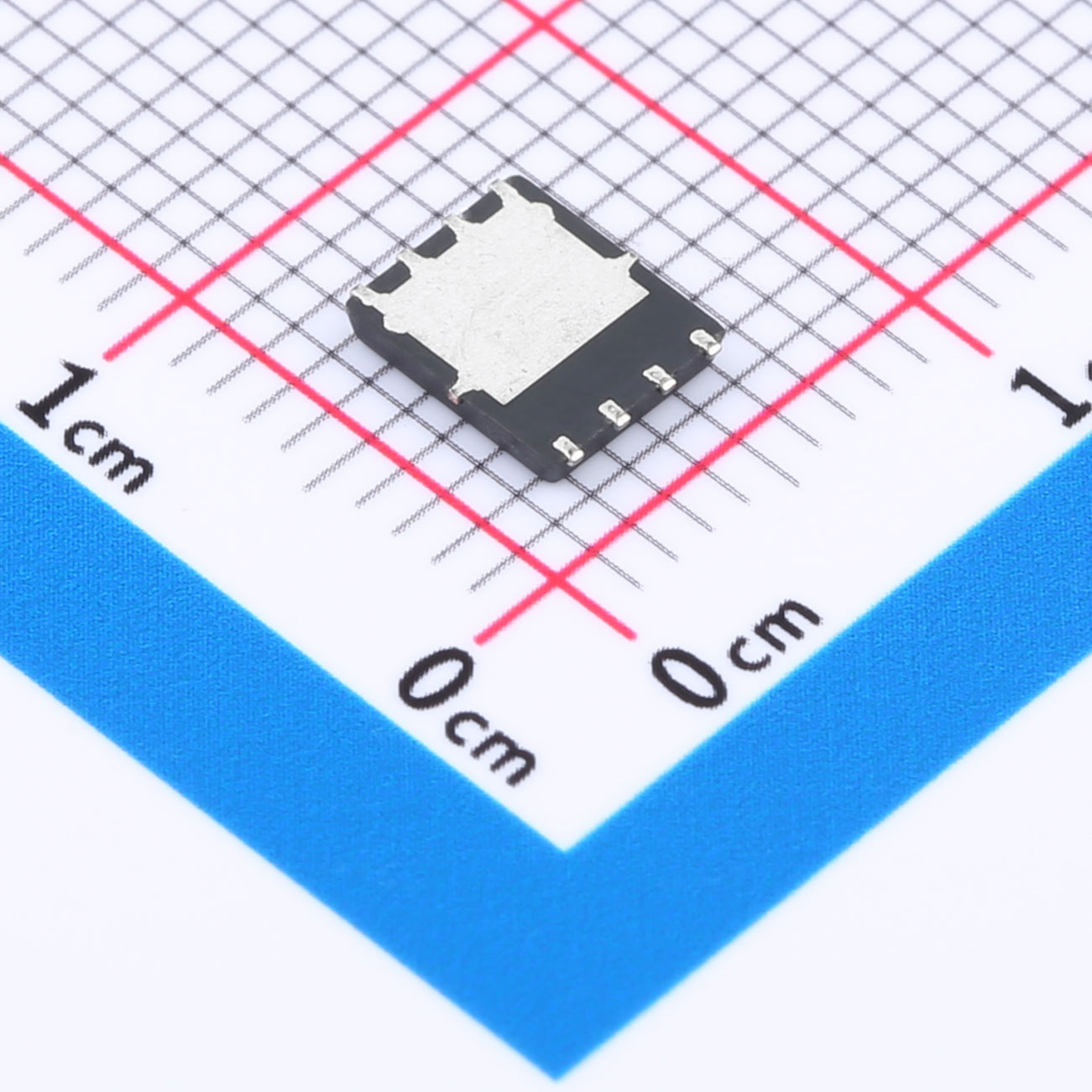

This N-Channel MOSFET offers VDS = 30V, ID = 178A, and RDS(on) = 1.1mΩ at VGS = 10V, ensuring stable, efficient performance for high-power switching applications.
Download datasheet Inquiry● Description:
This N-Channel MOSFET offers reliable performance with a maximum drain-source voltage (Vdss) of -20V and a continuous drain current (Id) of -2A. It is ideal for circuits requiring stable and efficient switching.
● Features:
● VDS=30V，ID=178A
● RDS（ON）TYP = 1.1mΩ @VGS =10V
● RDS（ON）TYP = 2.1mΩ @VGS =4.5V
● Very Low On-resistance RDS(ON)
● LowCrss
● Fast switching
● 100% avalanche tested
● Improved dv/dt capability
● Application:
● Current Switch for DC/DC,AC/DC
● Power Management
● Motor Driving, Quick/Wireless Charging
| File Name | Title | Description |
|---|---|---|
| SL180N03Q PDFN5x6-8L.pdf | SL180N03Q PDFN5x6-8L | - |
| Proposition-65-Compliance-Report_1.pdf | Proposition 65 Compliance Report_1 | - |
| Proposition-65-Compliance-Report_2.pdf | Proposition 65 Compliance Report_2 | - |
| REACH.pdf | REACH | - |
| RoHS-1.pdf | RoHS | - |
