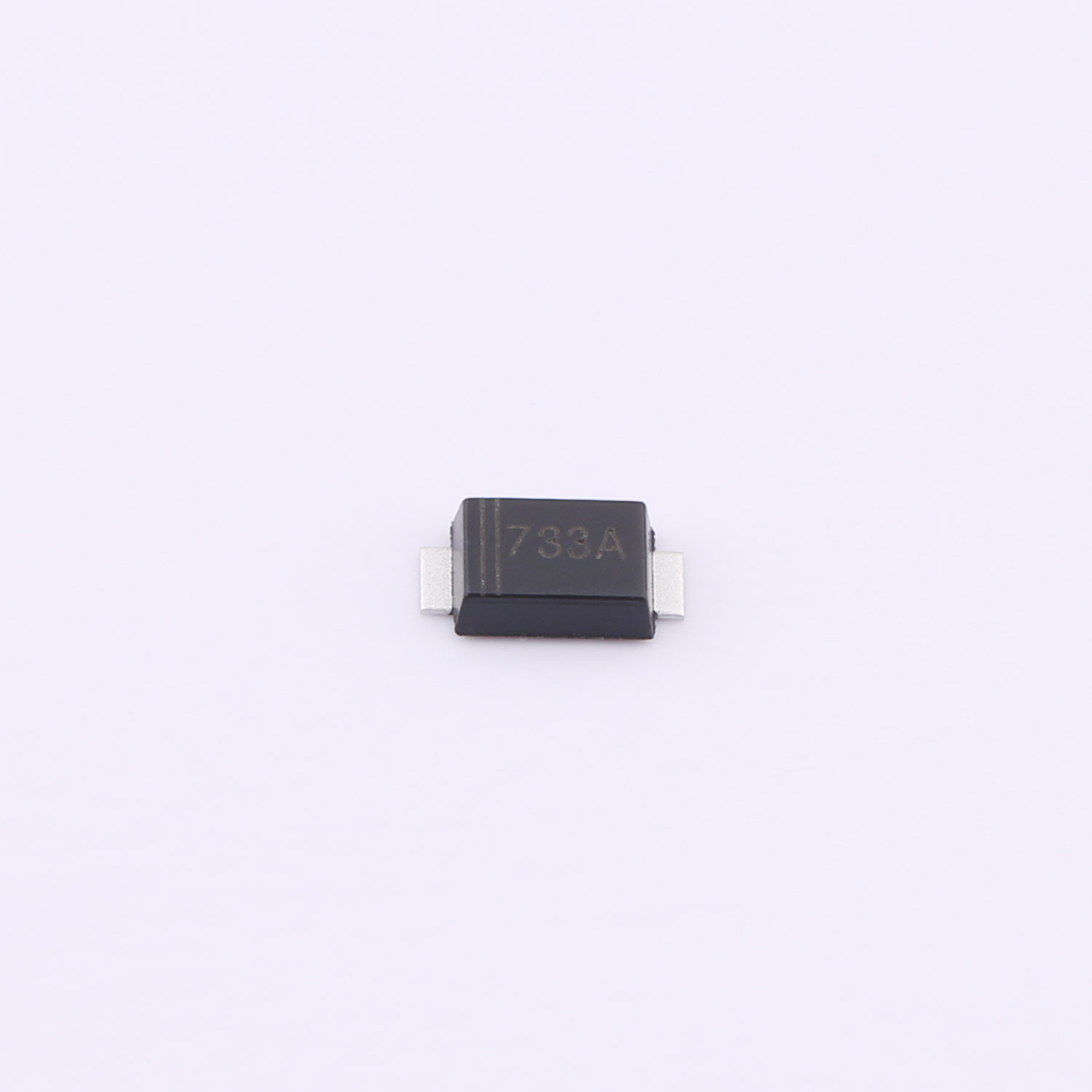

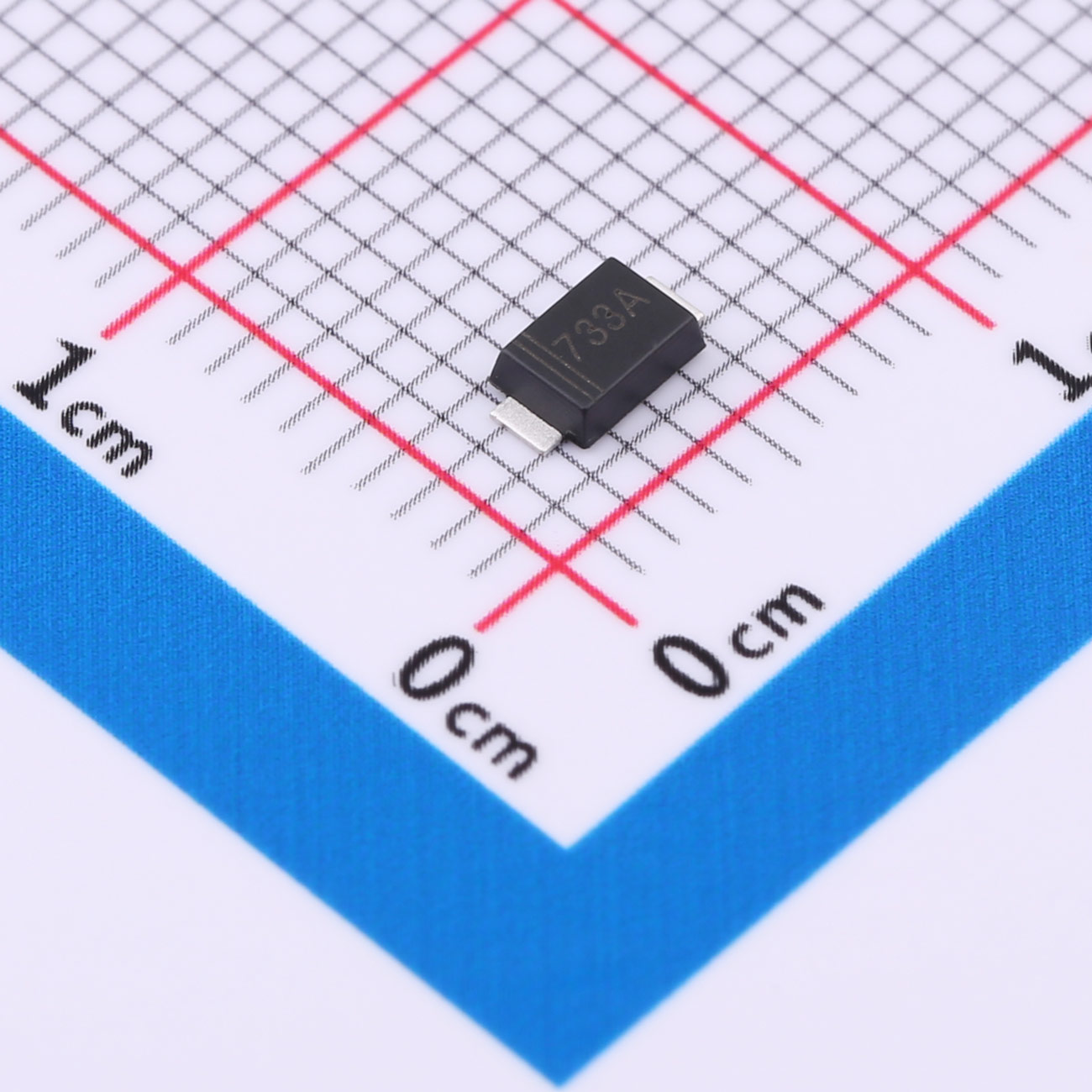

SMAF Zener Diode 1SMAF4733A
Download datasheet Inquiry
Features
Total power dissipation: Max. 1 W.
Wide zener reverse voltage range 3.3V to 330V.
Small plastic package suitable for surface mounted design.
Mechanical Data
Case: SOD-123
Terminals: Solderable per MIL-STD-750, Method 2026
| File Name | Title | Description |
|---|---|---|
| 1SMAF4735A.pdf | 1SMAF4735A | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
PD: 1000mW VZ(Nom) @ IZT: 7.5V @ 34mA VZ(Min) @ IZT: 7.12 @ 34mA VZ(Max.) @ IZT: 7.88V @ 34mA ZZT @ IZT: 4Ω @ 34mA IR @VR: 10µA @ 5V Package: SMAF
PD: 1000mW VZ(Nom) @ IZT: 13V @ 19mA VZ(Min) @ IZT: 12.4V @ 19mA VZ(Max.) @ IZT: 14.1V @ 19mA ZZT @ IZT: 10Ω @ 19mA IR @VR: 5µA @ 10V Package: SMAF
PD: 1000mW VZ(Nom) @ IZT: 15V @ 17mA VZ(Min) @ IZT: 13.8V @ 17mA VZ(Max.) @ IZT: 15.8V @ 17mA ZZT @ IZT: 14Ω @ 17mA IR @VR: 5µA @ 11V Package: SMAF
PD: 1000mW VZ(Nom) @ IZT: 15V @ 16mA VZ(Min) @ IZT: 13.8V @ 16mA VZ(Max.) @ IZT: 15.8V @ 16mA ZZT @ IZT: 16Ω @ 16mA IR @VR: 5µA @ 12V Package: SMAF
PD:1W VZ(Nom) : 27V VZ(Min) : 25.3V VZ(Max.) : 28.9V ZZT(Max) @ IZT: 35Ω@9.5mA IR(Max) @VR: 5µA @ 21V Package: SMAF
PD:1W VZ(Nom) : 8.2V VZ(Min) : 7.79V VZ(Max.) : 8.67V ZZT(Max) @ IZT: 4.5Ω@31mA IR(Max) @VR: 10µA @ 6V Package: SMAF
PD: 1W VZ(Nom) @ IZT: 24V @ 5mA VZ(Min) @ IZT: 22.8V @ 5mA VZ(Max.) @ IZT: 26V @ 5mA ZZT @ IZT: 25Ω @ 5mA IR @VR: 5µA @ 18V Package: SMAF
PD: 1W VZ(Nom) @ IZT: 10V @ 5mA VZ(Min) @ IZT: 9.5V @ 5mA VZ(Max.) @ IZT: 10.5V @ 5mA ZZT @ IZT: 7Ω @ 5mA IR @VR: 10µA @ 7V Package: SMAF
