PD: 1000mW
VZ(Nom) @ IZT: 13V @ 19mA
VZ(Min) @ IZT: 12.4V @ 19mA
VZ(Max.) @ IZT: 14.1V @ 19mA
ZZT @ IZT: 10Ω @ 19mA
IR @VR: 5µA @ 10V
Package: SMAF
Silicon Planar Zener Diodes
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description

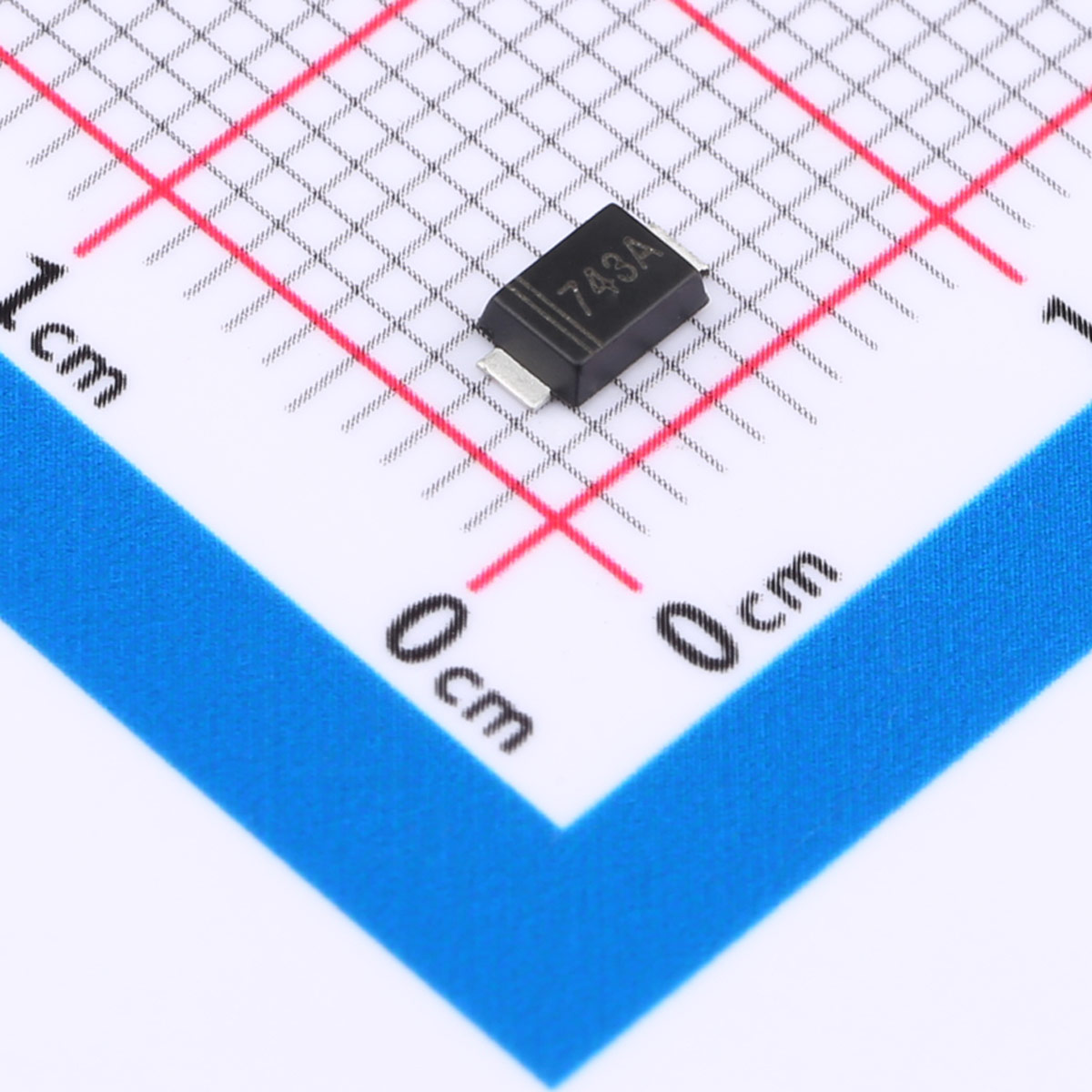

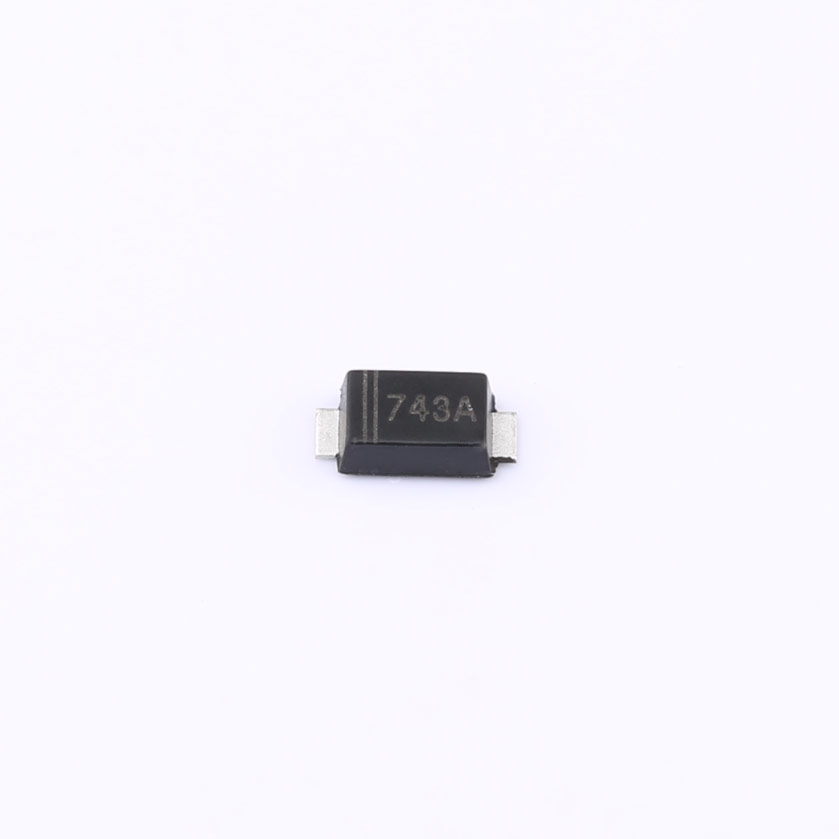

The 1SMAF4743A Zener diode, featuring an SMAF package, offers precise voltage regulation with a nominal Zener voltage of 13V at 19mA. It operates within a breakdown voltage range of 12.4V to 14.1V, ensuring reliable performance. This diode has a dynamic impedance of 10? at 19mA and a low reverse leakage current of 5μA at 10V. With a power dissipation capacity of 1000mW, it is designed to handle substantial power demands.
Features
● Total power dissipation: Max. 1 W.
● Wide zener reverse voltage range 3.3V to 330V.
● Small plastic package suitable for surface mounted design.
Applications
● Consumer electronics
● Industrial equipment
● Automotive applications
| File Name | Title | Description |
|---|---|---|
| 1SMAF4735A.pdf | 1SMAF4735A | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
PD: 1000mW VZ(Nom) @ IZT: 7.5V @ 34mA VZ(Min) @ IZT: 7.12 @ 34mA VZ(Max.) @ IZT: 7.88V @ 34mA ZZT @ IZT: 4Ω @ 34mA IR @VR: 10µA @ 5V Package: SMAF
PD: 1000mW VZ(Nom) @ IZT: 15V @ 17mA VZ(Min) @ IZT: 13.8V @ 17mA VZ(Max.) @ IZT: 15.8V @ 17mA ZZT @ IZT: 14Ω @ 17mA IR @VR: 5µA @ 11V Package: SMAF
PD: 1000mW VZ(Nom) @ IZT: 15V @ 16mA VZ(Min) @ IZT: 13.8V @ 16mA VZ(Max.) @ IZT: 15.8V @ 16mA ZZT @ IZT: 16Ω @ 16mA IR @VR: 5µA @ 12V Package: SMAF
PD:1W VZ(Nom) : 27V VZ(Min) : 25.3V VZ(Max.) : 28.9V ZZT(Max) @ IZT: 35Ω@9.5mA IR(Max) @VR: 5µA @ 21V Package: SMAF
PD:1W VZ(Nom) : 8.2V VZ(Min) : 7.79V VZ(Max.) : 8.67V ZZT(Max) @ IZT: 4.5Ω@31mA IR(Max) @VR: 10µA @ 6V Package: SMAF
PD: 1W VZ(Nom) @ IZT: 24V @ 5mA VZ(Min) @ IZT: 22.8V @ 5mA VZ(Max.) @ IZT: 26V @ 5mA ZZT @ IZT: 25Ω @ 5mA IR @VR: 5µA @ 18V Package: SMAF
PD: 1W VZ(Nom) @ IZT: 10V @ 5mA VZ(Min) @ IZT: 9.5V @ 5mA VZ(Max.) @ IZT: 10.5V @ 5mA ZZT @ IZT: 7Ω @ 5mA IR @VR: 10µA @ 7V Package: SMAF
SMAF Zener Diode 1SMAF4733A
