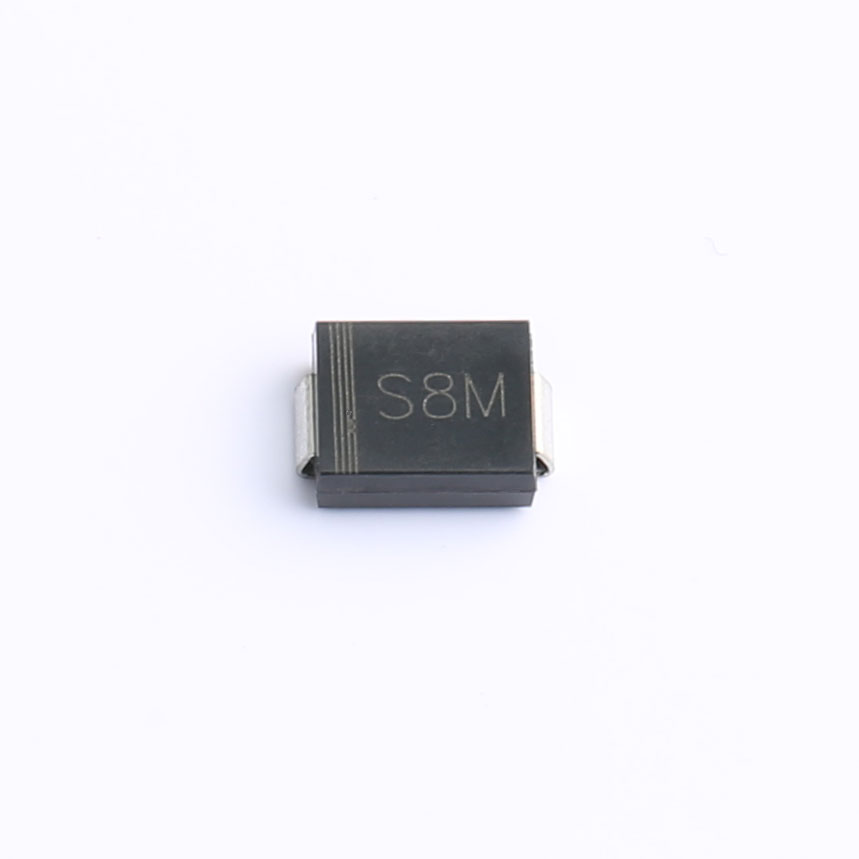

The S8MC is a high-current general-purpose rectifier diode engineered for efficient and reliable performance in a wide range of electronic applications. With a peak reverse voltage (VRRM) rating of 1000V and a forward current (IO) handling capability of 8A, this diode facilitates effective conversion of alternating current (AC) to direct current (DC) with minimal power loss. It features a low reverse leakage current (IR) of only 5μA, ensuring precise signal handling and minimal current leakage in sensitive electronic circuits. The diode is packaged in SMB format, which is compact and suitable for surface-mount applications, making it versatile for various electronic designs.
Download datasheet Inquiry
Our adventage
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The S8MC is a high-current general-purpose rectifier diode engineered for efficient and reliable performance in a wide range of electronic applications. With a peak reverse voltage (VRRM) rating of 1000V and a forward current (IO) handling capability of 8A, this diode facilitates effective conversion of alternating current (AC) to direct current (DC) with minimal power loss. It features a low reverse leakage current (IR) of only 5μA, ensuring precise signal handling and minimal current leakage in sensitive electronic circuits. The diode is packaged in SMB format, which is compact and suitable for surface-mount applications, making it versatile for various electronic designs.
Features
● ldeal for surface mount applications
● Easy pick and place
● Built-in strain relief
● Low forward voltage drop

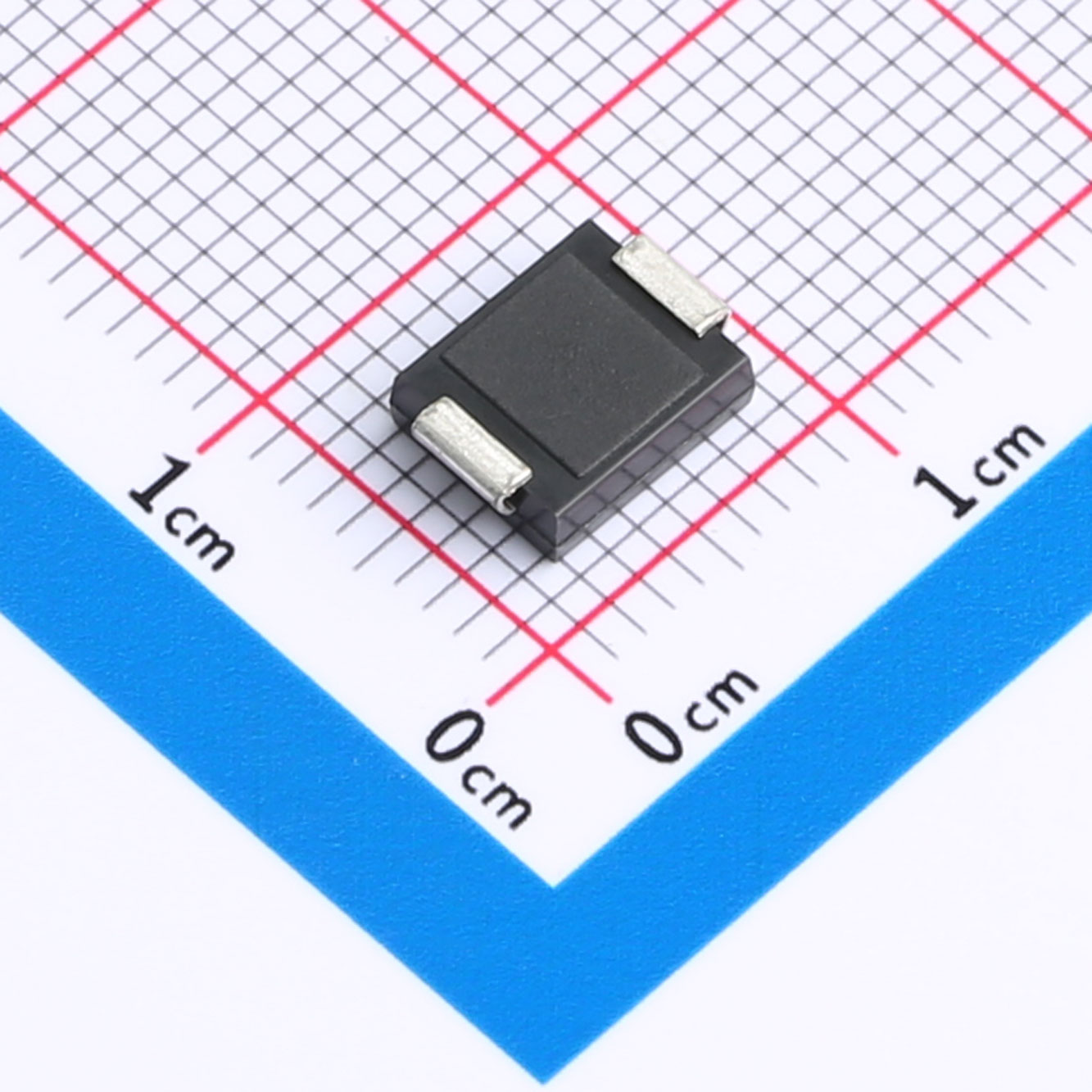

Mechanical Data
● Case:Molded plastic
● Epoxy:UL 94V-0 rate flame retardant
● Metallurgically bonded construction
● Polarity:Color band denotes cathode end
● Mounting position:Any
● Weight:0.21 grams
| File Name | Title | Description |
|---|---|---|

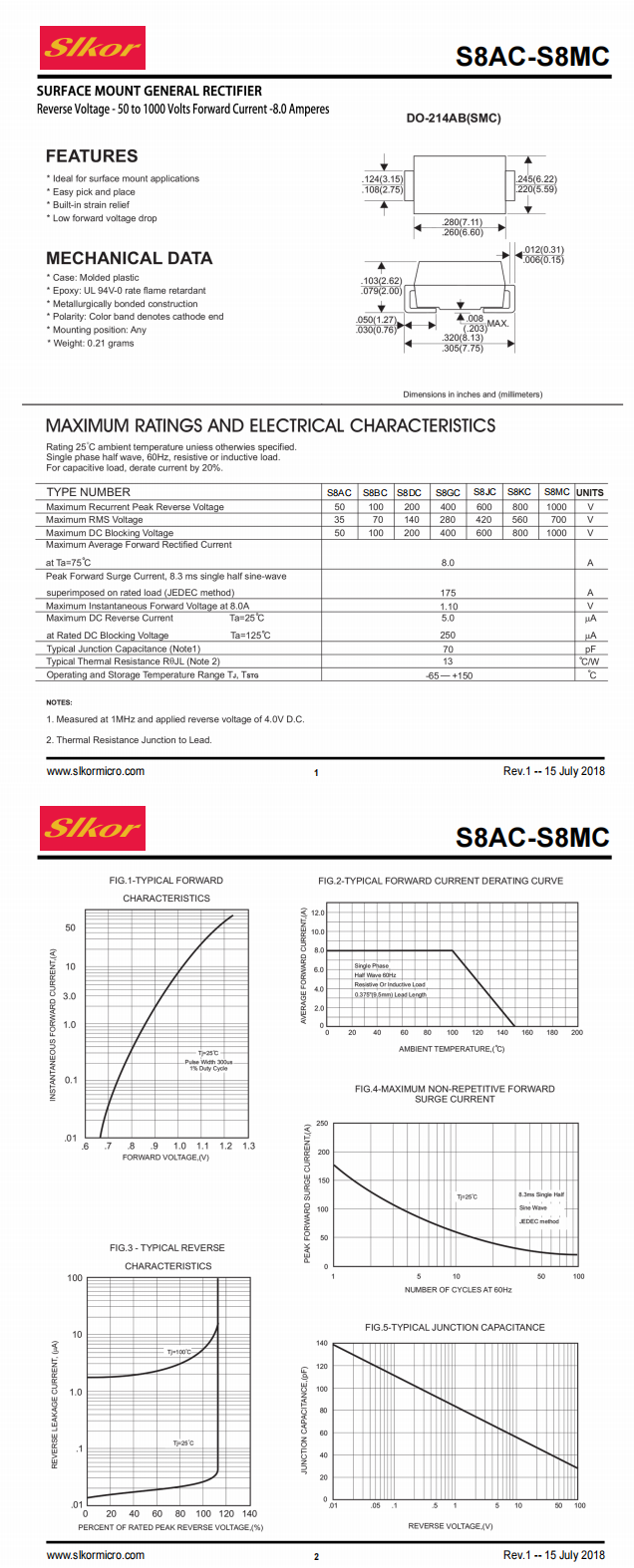

| S8MC SMC.pdf | S8MC SMC | - |
