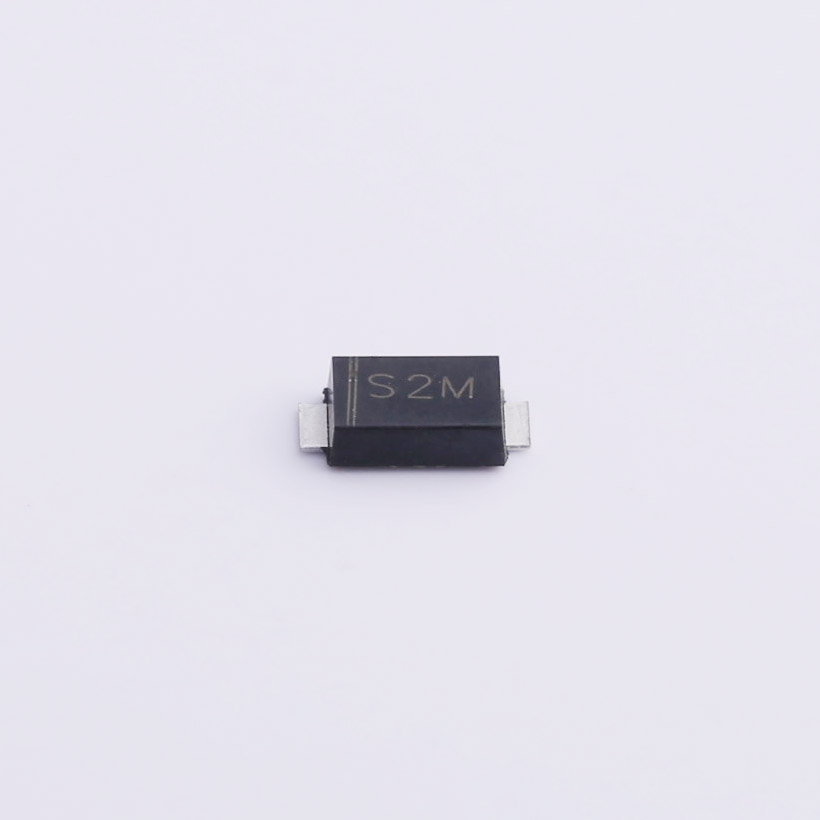

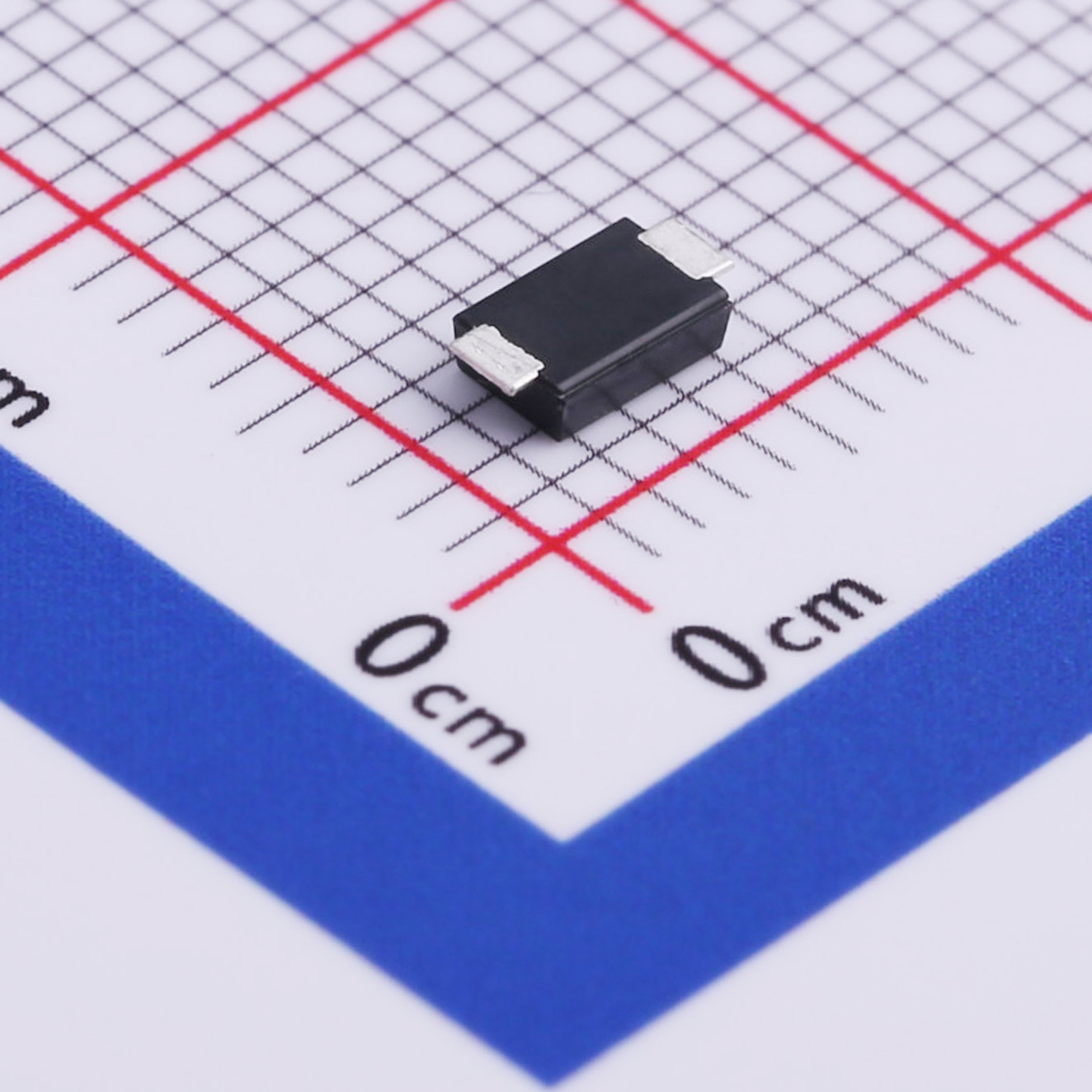

The S2MF is a versatile general-purpose diode designed for efficient rectification and voltage regulation in a variety of electronic circuits. With a maximum reverse voltage rating (VRRM) of 1000V and a forward current (IO) rating of 2A, it offers robust performance capabilities suitable for diverse applications.
Download datasheet Inquiry
SURFACE MOUNT GENERAL RECTIFIER
Our adventage
Description
The S2MF is a versatile general-purpose diode designed for efficient rectification and voltage regulation in a variety of electronic circuits. With a maximum reverse voltage rating (VRRM) of 1000V and a forward current (IO) rating of 2A, it offers robust performance capabilities suitable for diverse applications.
Features
● High Voltage Rating: With a VRRM of 1000V, the S2MF diode can handle high reverse voltages, ensuring reliable operation in power supply and signal processing circuits.
● High Current Capability: Rated for a forward current (IO) of 2A, the diode supports moderate to high current requirements, making it suitable for applications demanding efficient power management.
● Low Forward Voltage drop: The VF of 1.1V minimizes power loss across the diode during operation, enhancing overall energy efficiency in circuit designs.
● Low Leakage Current: An IR of 5μA ensures minimal leakage, contributing to stable and reliable circuit performance, particularly in low-power applications.
● SMAF Package: Housed in an SMAF package, the diode offers compact size and is designed for surface-mounting, facilitating easy integration into PCB layouts and assembly processes.
Applications
● Power Supply Units:Ideal for rectification and voltage regulation in power supply circuits across various industries.
● Signal Processing: Used in signal diode applications to manage and protect signals against reverse polarity and voltage spikes.
● Consumer Electronics: Integrated into devices such as TVs, computers, and home appliances for efficient power management and protection.
● Industrial Applications: Suitable for industrial control systems, automation equipment, and machinery where reliable operation under varying conditions is essential.

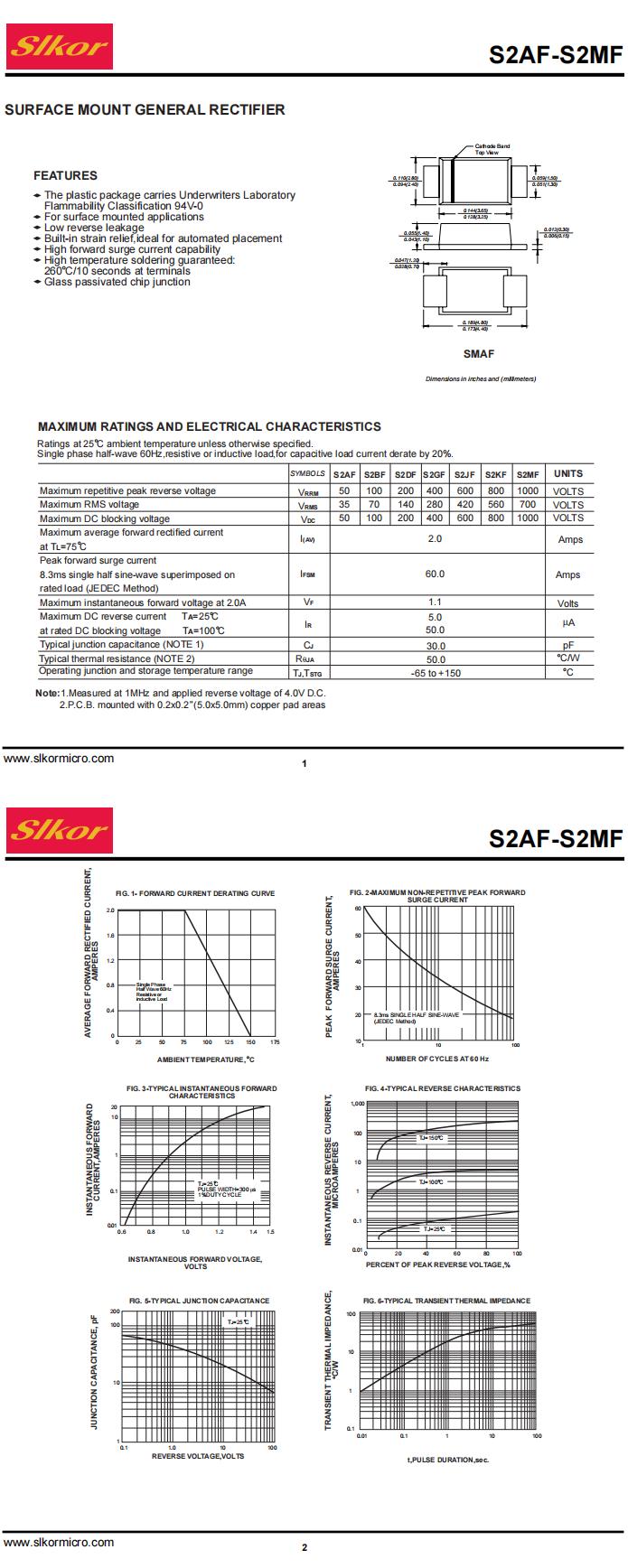

| File Name | Title | Description |
|---|---|---|
| S2MF.pdf | S2MF | - |
