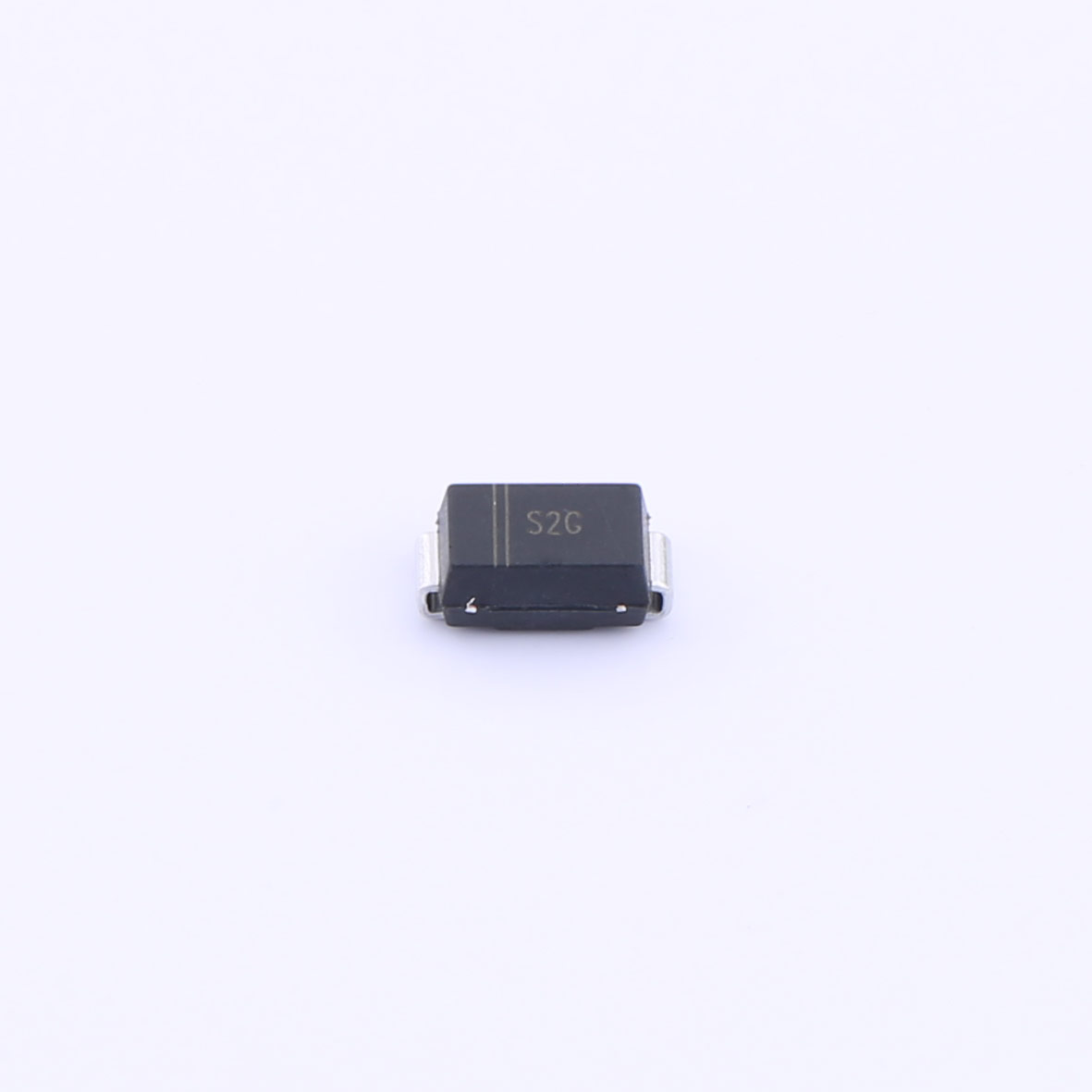

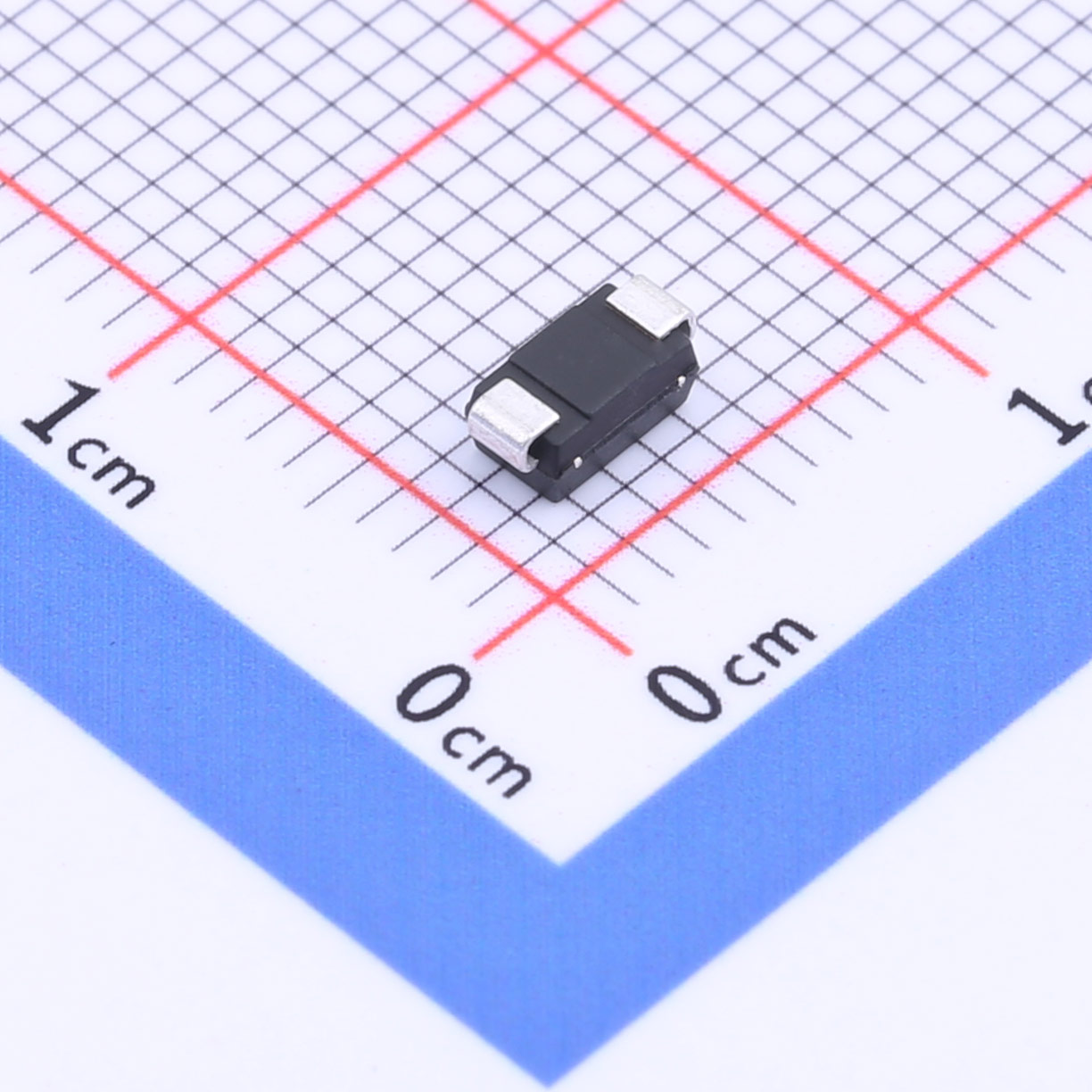

The General-purpose Diode S2G is designed to provide reliable performance and efficient rectification in a wide range of electronic applications. With a maximum reverse voltage (Vr) of 400V and a forward current (Io) rating of 2A, the S2G diode features a low forward voltage drop (Vf) of 1.1V at 2A, ensuring minimal power loss during operation. It also exhibits low reverse current (Ir) of 5μA at 400V, enhancing overall efficiency and reliability.
Download datasheet Inquiry
Description
The General-purpose Diode S2G is designed to provide reliable performance and efficient rectification in a wide range of electronic applications. With a maximum reverse voltage (Vr) of 400V and a forward current (Io) rating of 2A, the S2G diode features a low forward voltage drop (Vf) of 1.1V at 2A, ensuring minimal power loss during operation. It also exhibits low reverse current (Ir) of 5μA at 400V, enhancing overall efficiency and reliability.

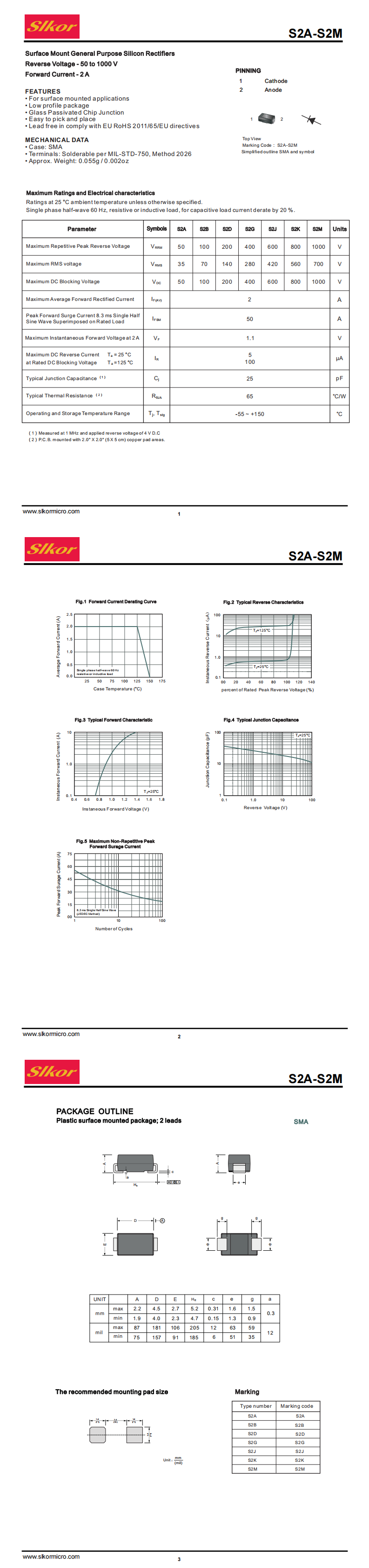

| File Name | Title | Description |
|---|---|---|
| S2G.pdf | S2G | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
