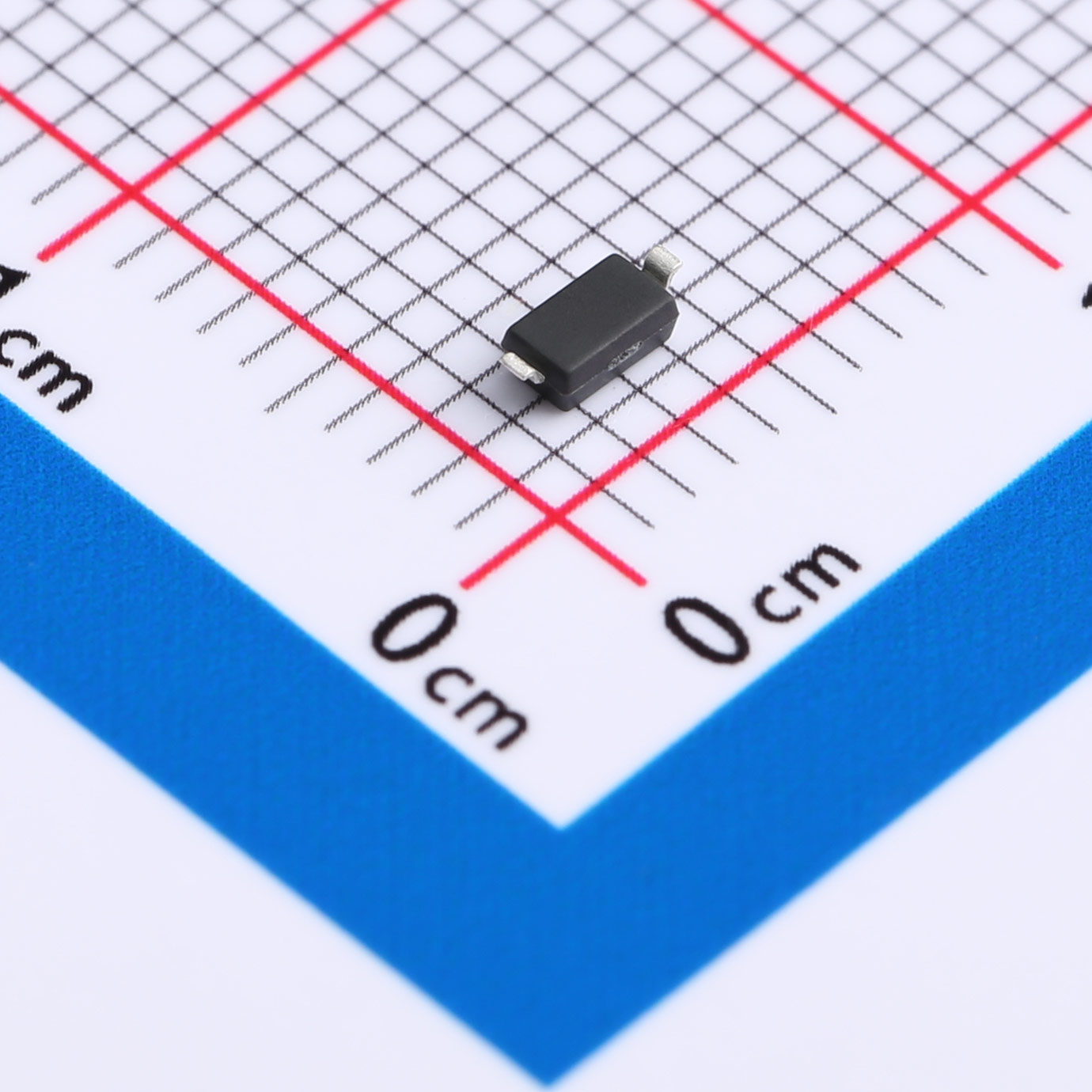

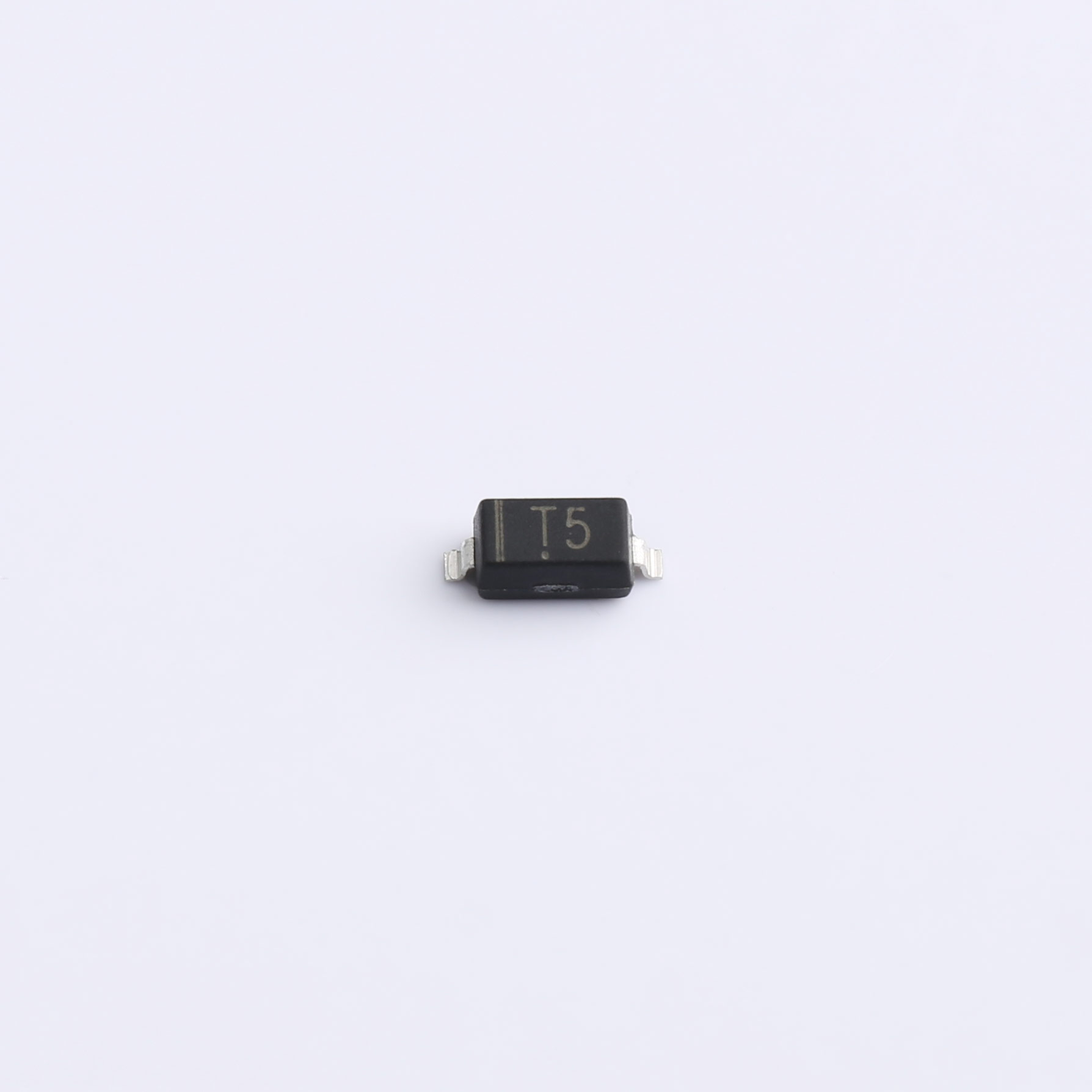

The 1N4448W is a high-performance small signal diode designed for precision rectification and fast switching applications in electronic circuits. Featuring a maximum reverse voltage (Vr) of 75V and a forward current (Io) handling capability of 250mA, this diode offers robust performance suitable for a variety of electronic designs. With a low forward voltage drop (Vf) of 1.25V at 10mA and ultra-low reverse leakage current (Ir) of only 2.5μA, the 1N4448W ensures efficient power management and reliable operation in both forward and reverse bias conditions.
Download datasheet InquiryOur adventage
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The 1N4448W is a high-performance small signal diode designed for precision rectification and fast switching applications in electronic circuits. Featuring a maximum reverse voltage (Vr) of 75V and a forward current (Io) handling capability of 250mA, this diode offers robust performance suitable for a variety of electronic designs. With a low forward voltage drop (Vf) of 1.25V at 10mA and ultra-low reverse leakage current (Ir) of only 2.5μA, the 1N4448W ensures efficient power management and reliable operation in both forward and reverse bias conditions.
Features
● Fast Switching Speed.
● Surface Mount Package Ideally Suited For Automatic insertion.
● For General Purpose Switching Applicationsz
● High Conductance
Applications
Surface mount fast switching diode
| File Name | Title | Description |
|---|---|---|

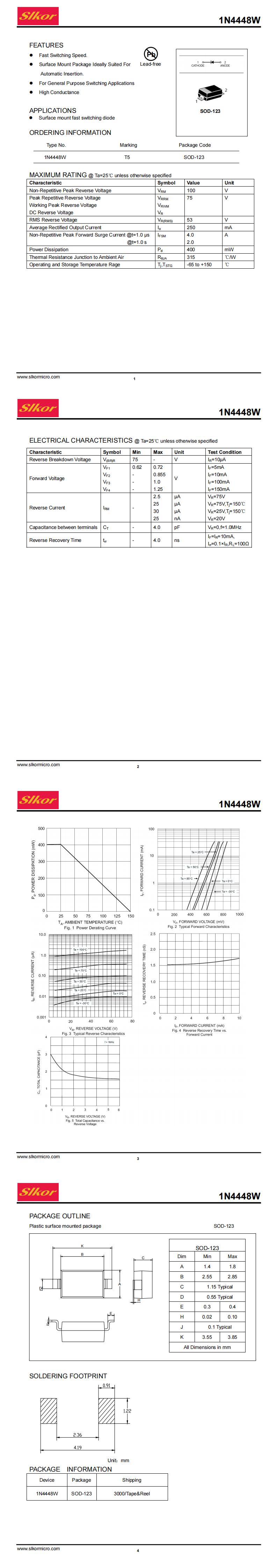

| 1N4448W SOD-123.pdf | 1N4448W SOD-123 | - |
