Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description

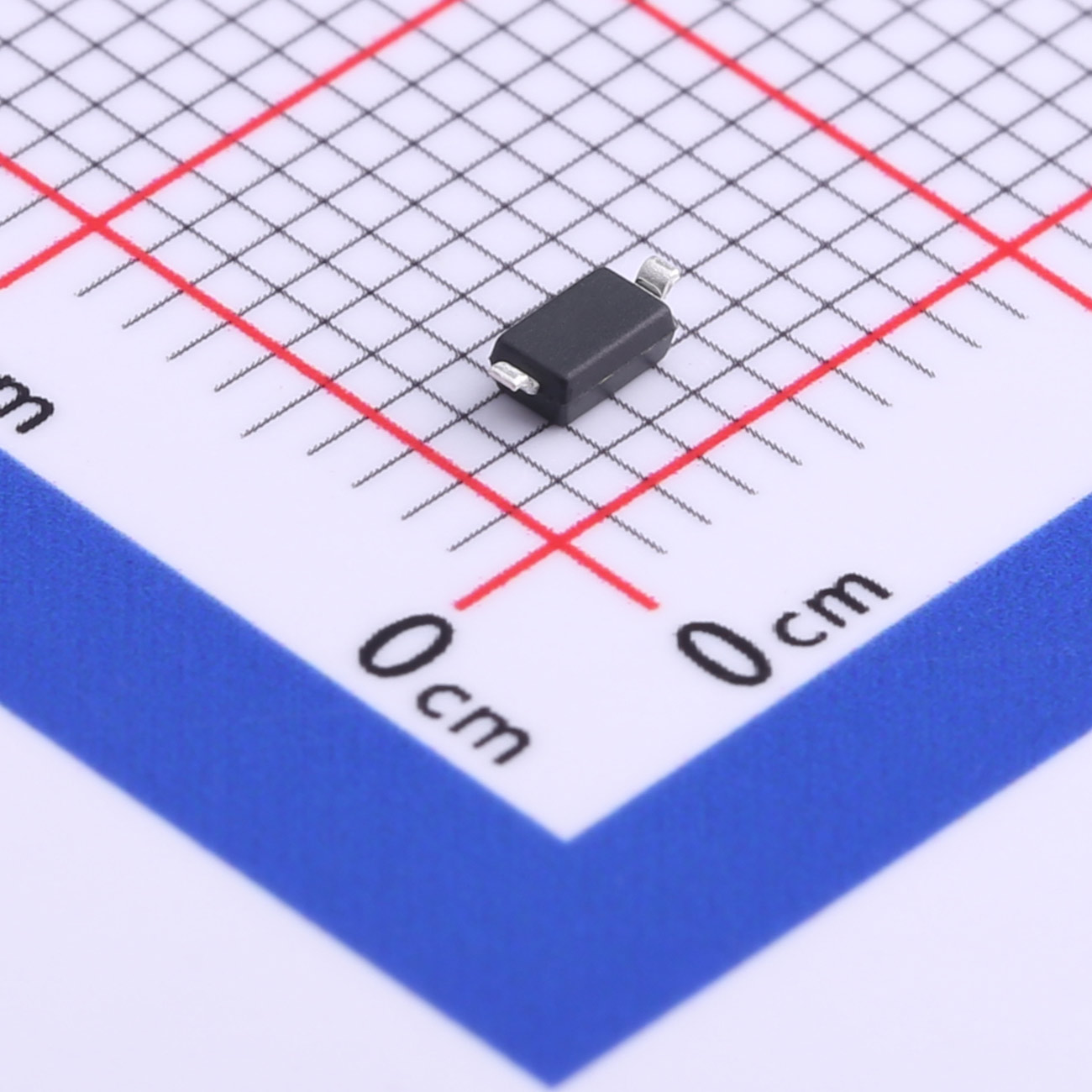

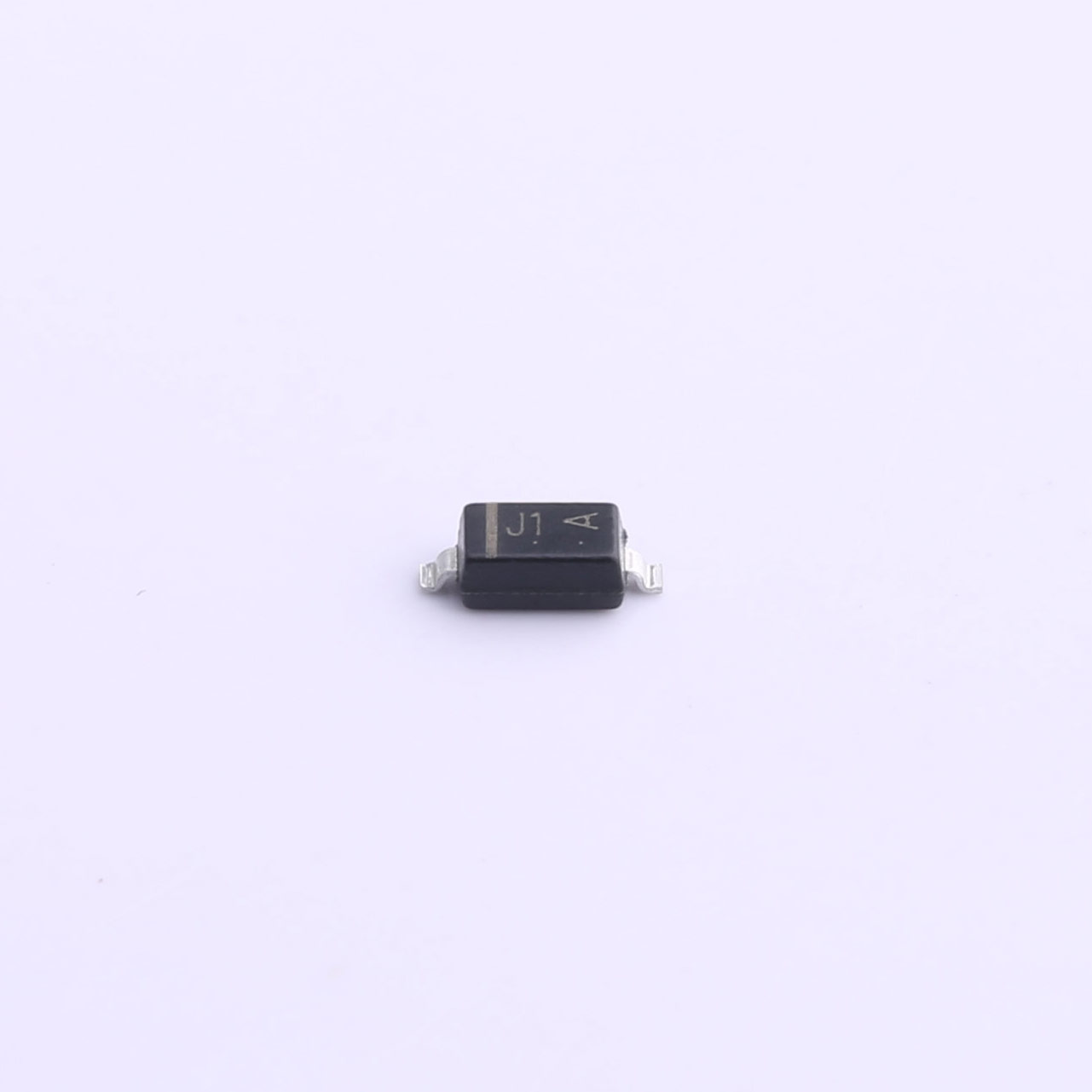

The MMSZ5246B is a Zener diode packaged in SOD-123, designed for precise voltage stabilization in electronic circuits. It features a fixed reverse working voltage, making it ideal for applications requiring high-precision voltage regulation in electronic systems. With excellent temperature coefficient and ultra-low reverse leakage current, it ensures stable and reliable performance across a wide operating temperature range.
Features
●Total power dissipation:Max. 500mW.
●Wide zener reverse voltage range 2.4V to 39V.
●Small plastic package suitable forsurface mounted design.
●Tolerance approximately ± 5%.
Applications
●Power Management
●Signal Processing
●Industrial Automation
| File Name | Title | Description |
|---|---|---|
| MMSZ5222B.PDF | MMSZ5222B | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
VZTyp- Precision：±5% PD：500mW Ir:3nA@6V
VZTyp- Precision: ±5% PD: 500mW Ir: 3nA@6.5V
VZTyp- Precision：±5% PD：500mW Ir:3nA@8V
VZTyp- Precision：±5% PD：500mW Ir:3nA@8.4V
PD(mW)：500mW VZTyp（V）：12V VZMin(V)：11.4V VZMax(V)：12.6V IZT(mA)：20mA IR(uA)：2uA Package：SOD-123
VZTyp- Precision：±5% PD：500mW Ir:1nA@9.9V
PD(mW)：500mW VZTyp（V）：15V VZMin(V)：14.25V VZMax(V)：15.75V IZT(mA)：7.5mA IR(uA)：0.5uA Package：SOD-123
PD(mW)：500mW VZTyp（V）：18V VZMin(V)：17.1V VZMax(V)：18.9V IZT(mA)：7mA IR(uA)：0.1uA Package：SOD-123
