The Polar Bidirectional TVS (Transient Voltage Suppression) Diode is a versatile electronic component designed to protect sensitive circuits from transient voltage spikes and surges in both directions. Featuring a VRWM (Working Peak Reverse Voltage) of 6.5V, this diode is effective for bidirectional transient voltage suppression applications. It has a VBR (Breakdown Voltage) range from 7.22V (minimum) to 7.98V (maximum), ensuring reliable clamping of voltages exceeding these thresholds in either polarity. With an Ir (Reverse Leakage Current) of 250μA, the diode maintains low standby power consumption. It can handle peak pulse currents (Ipp) of up to 17.9A for 10/1000μs pulses, and offers a low clamping voltage (VC) of 11.2V. Additionally, it boasts a Ppp (Peak Pulse Power) rating of 200W for 10/1000μs pulses, effectively dissipating transient power to protect connected electronics.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The Polar Bidirectional TVS (Transient Voltage Suppression) Diode is a versatile electronic component designed to protect sensitive circuits from transient voltage spikes and surges in both directions. Featuring a VRWM (Working Peak Reverse Voltage) of 6.5V, this diode is effective for bidirectional transient voltage suppression applications. It has a VBR (Breakdown Voltage) range from 7.22V (minimum) to 7.98V (maximum), ensuring reliable clamping of voltages exceeding these thresholds in either polarity. With an Ir (Reverse Leakage Current) of 250μA, the diode maintains low standby power consumption. It can handle peak pulse currents (Ipp) of up to 17.9A for 10/1000μs pulses, and offers a low clamping voltage (VC) of 11.2V. Additionally, it boasts a Ppp (Peak Pulse Power) rating of 200W for 10/1000μs pulses, effectively dissipating transient power to protect connected electronics.
Features
● For surface mounted applications
● Low profile package
● Low incremental surge resistance, excellent clamping capability
● 200W peak pulse power capability with a10/1000 ms wave from,repetition rate (dutycycle):0.01%
● High temperature soldering guaranteed: 260 ℃/10 seconds, at terminals
Mechanical Data

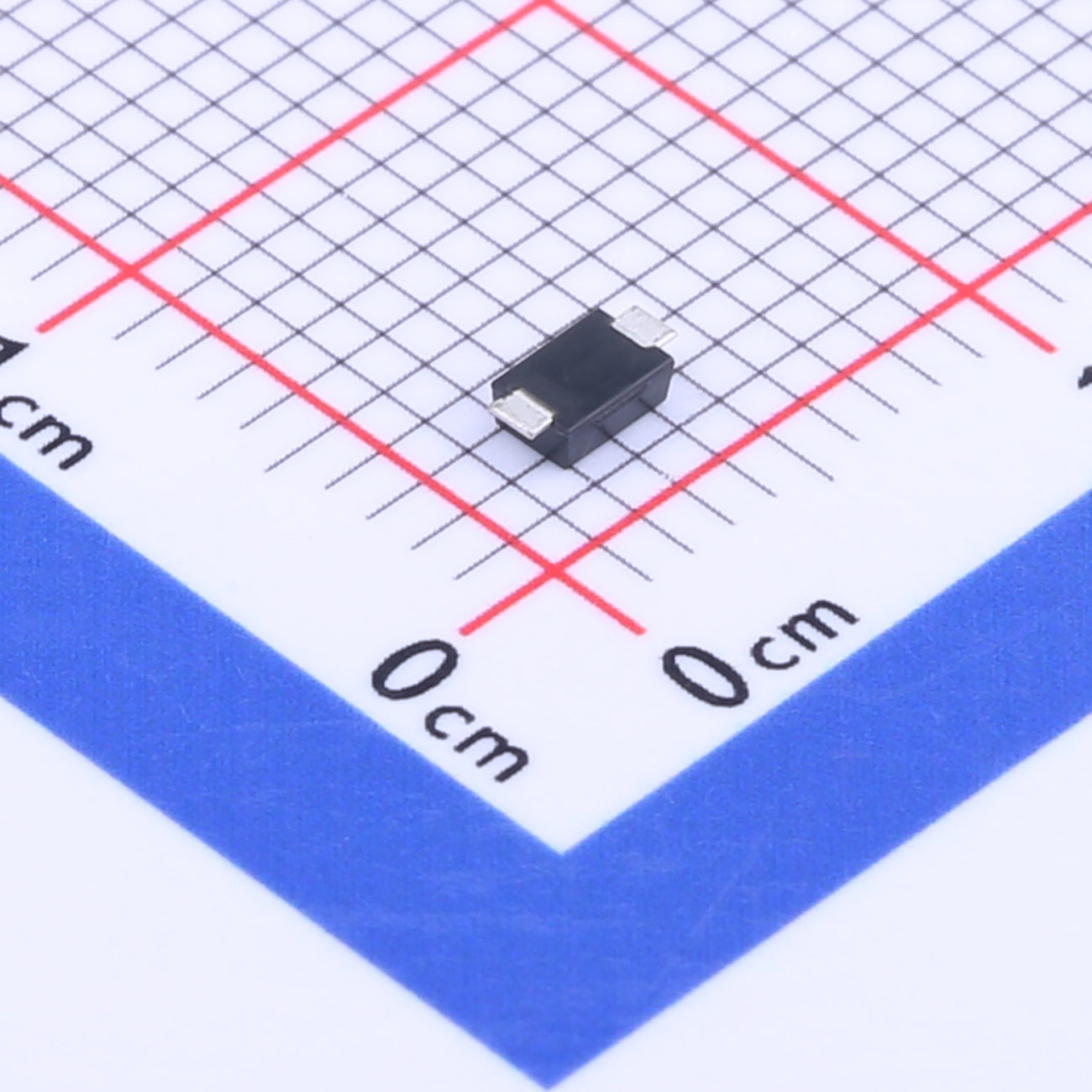

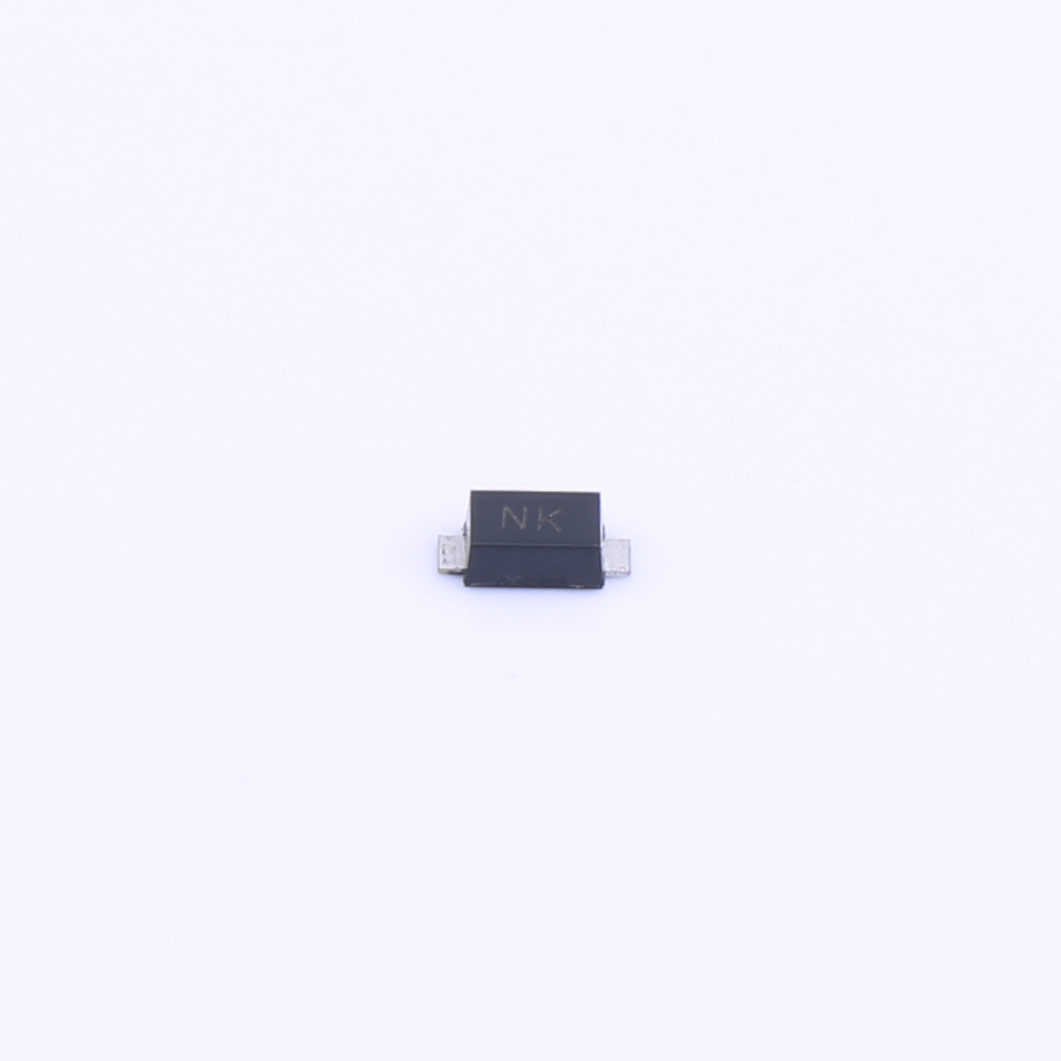

● Case: JEDEC SOD-123FL, molded plastic over passivated chip
● Polarity: Color band denotes positive end ( cathode ) except for bidirectional
● Mounting position: Any
● Weight: 0.006 ounces, 0.02 gram
Applications
● Telecommunications
● Industrial Controls
● Automotive Electronics
● Consumer Electronics
● Power Supplies
| File Name | Title | Description |
|---|---|---|
| SMF30CA.pdf | SMF30CA | - |
