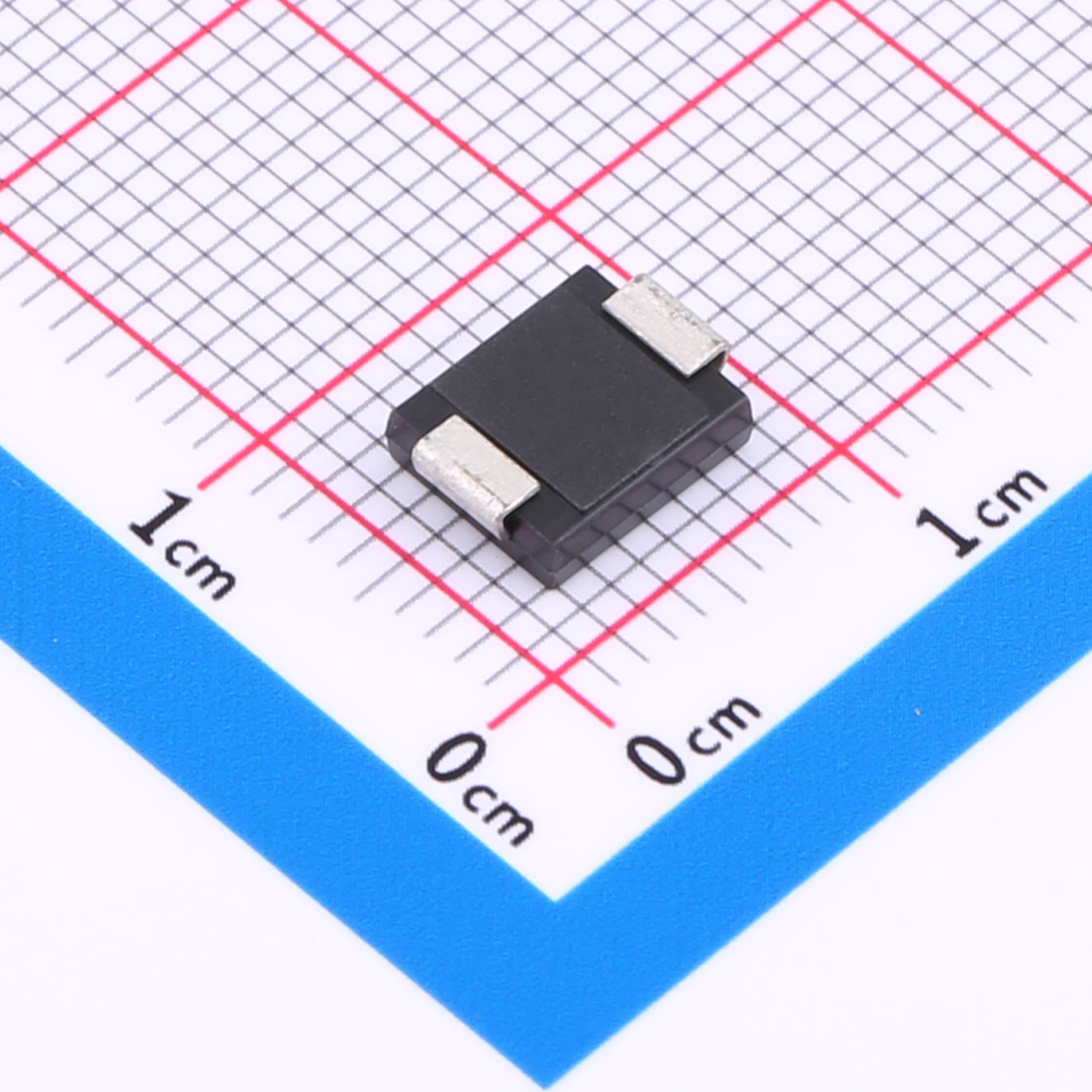

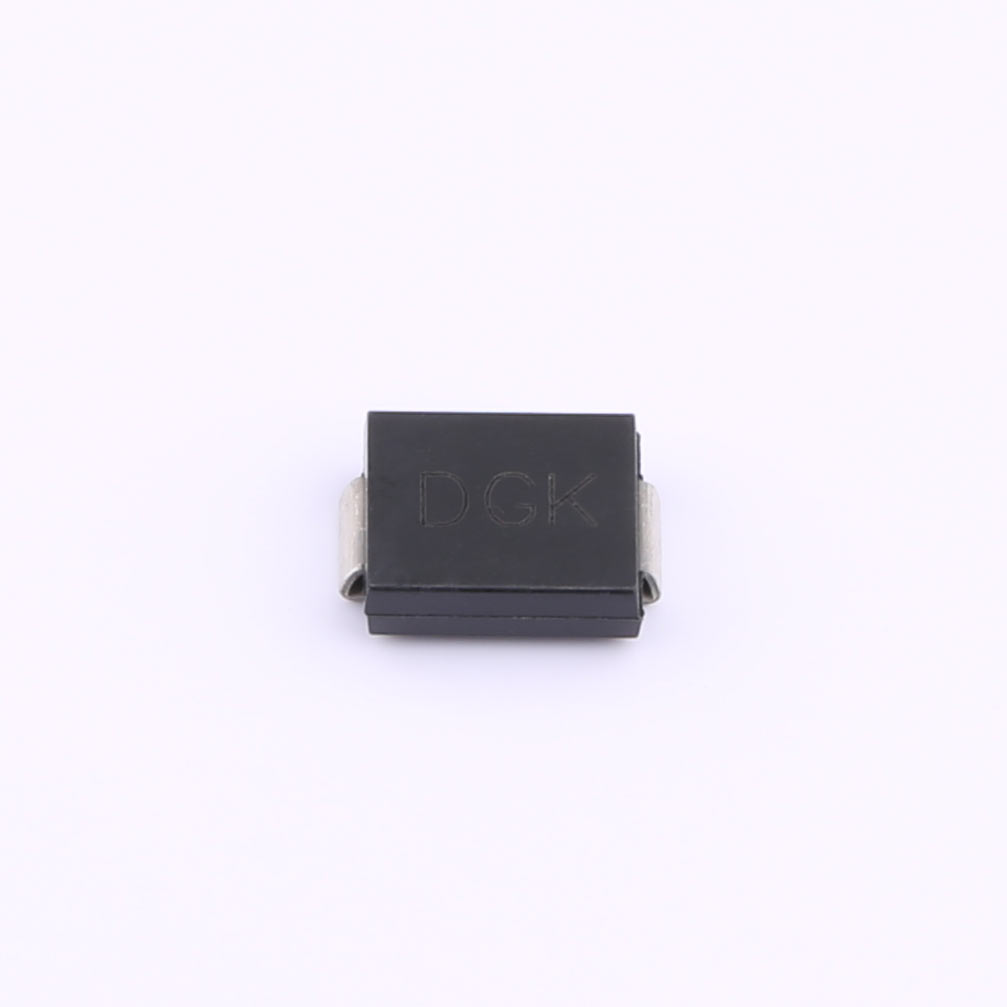

SMDJ60CA Transient Protection Diode
Download datasheet Inquiry
The SMDJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Features
● Halogen-Free
● RoHS compliant
● For surface mounted applications in order to optimize board space
● Low profile package
● Built-in strain relief
● Typical maximum temperature coefficient ΔVBR = 0.1% × VBR@25℃ × ΔT
● Glass passivated chip junction
● 3000W peak pulse power capability at lOxlOOOUs waveform, repetition rate {duty cycles):0.01 %
● Fast response time:typically less than l.Ops from OV to BV min
● Excellent clamping capability
● Low incremental surge resistance
● Typical IR less than 2UA above 12V
● High Temperature soldering guaranteed: 260℃/40 seconds at terminals
● Plastic package has Underwriters Laboratory Flammability 94V-O
● Matte Tin Lead-free Plated
Mechanical Data
● Case: SMC
● Terminals: Solderable per MIL-STD-750, Method 2026
● Approx. Weight: 0.22g / 0.0077oz
| File Name | Title | Description |
|---|---|---|
| SMDJ18A.pdf | SMDJ18A | - |
