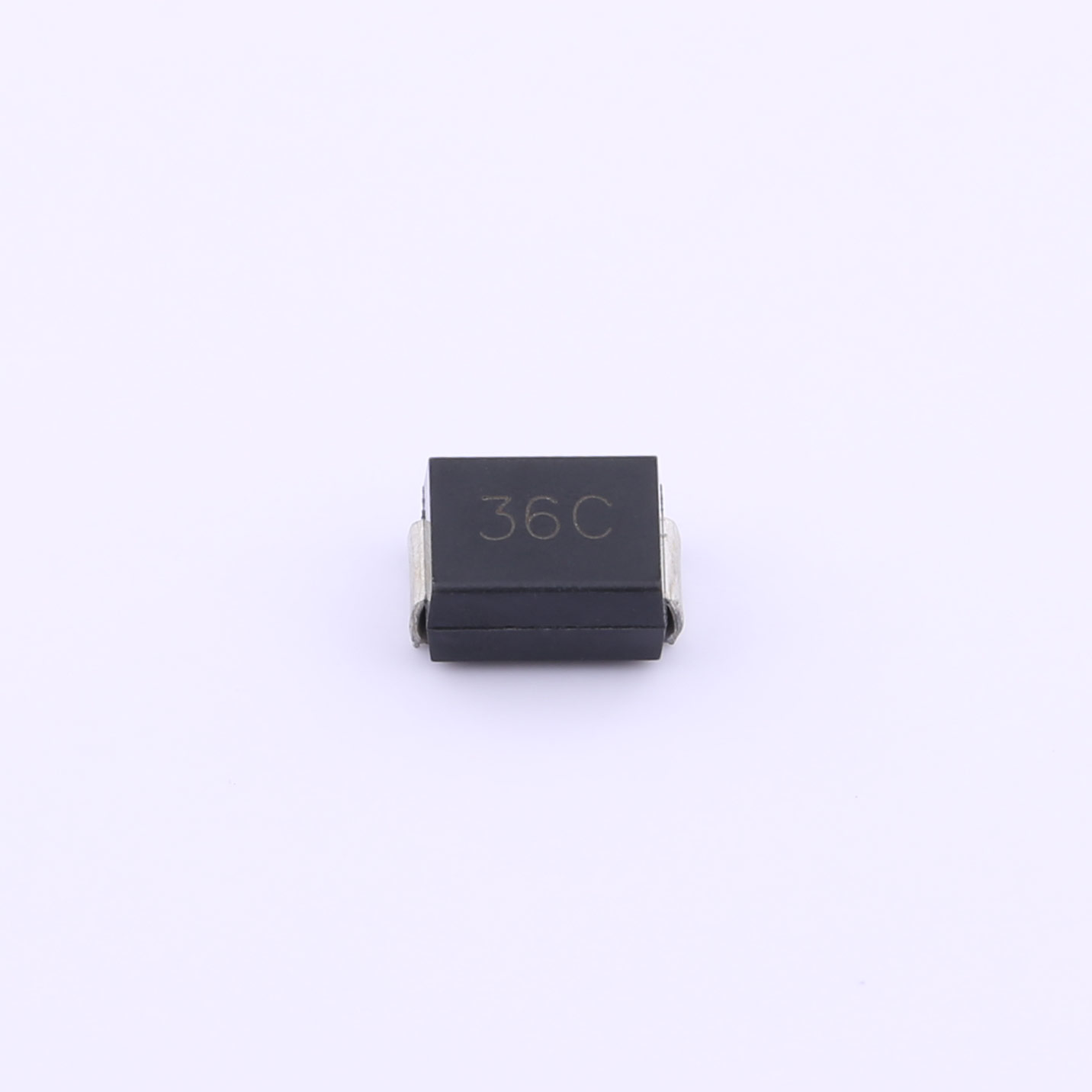

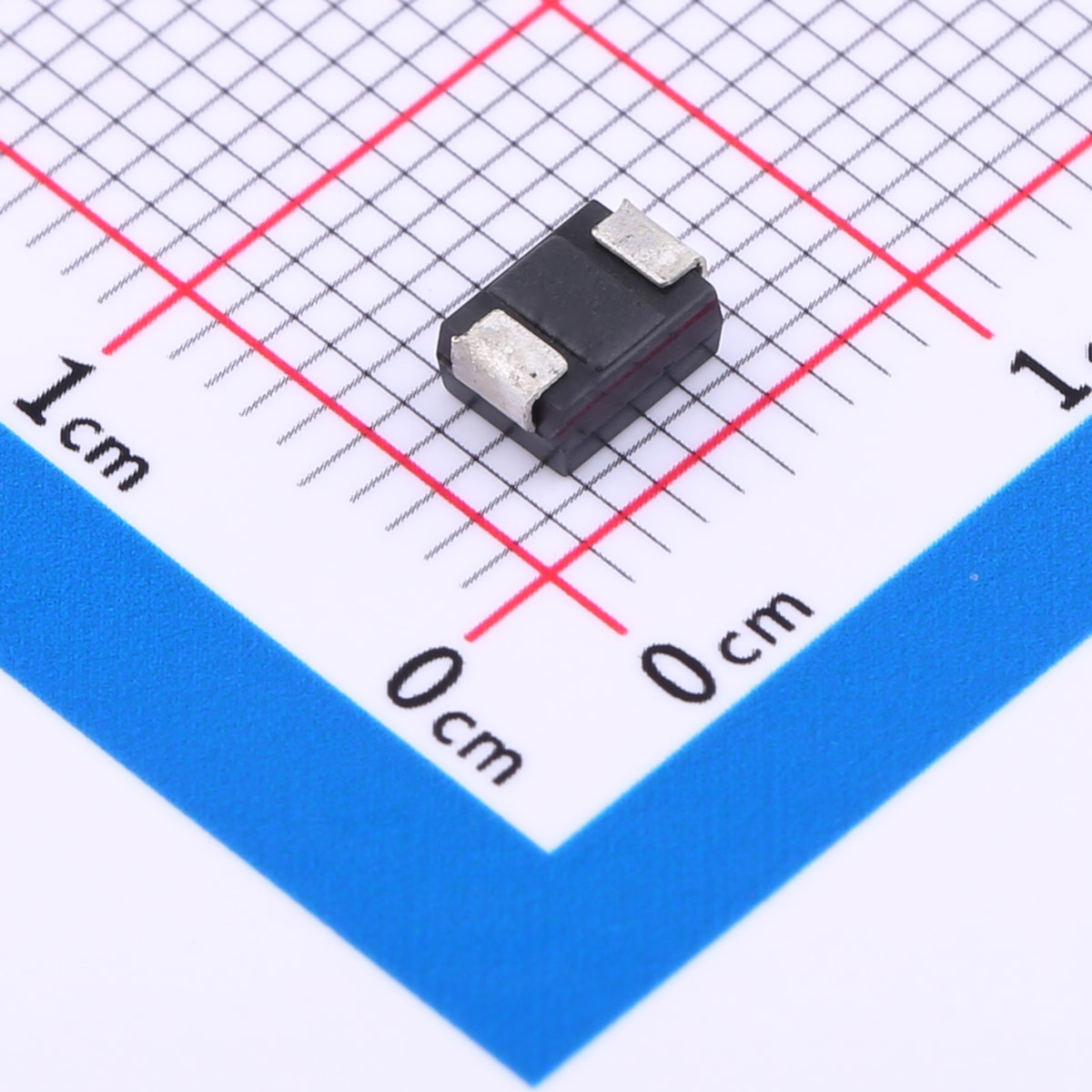

The P6SMB36CA is a high-performance transient protection diode designed to safeguard sensitive electronic components from transient voltage spikes. Encased in the compact SMB package, this diode is engineered to provide robust protection while ensuring minimal space consumption on your circuit board. It features a precise breakdown voltage range, making it ideal for applications requiring reliable over-voltage protection.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The P6SMB36CA is a high-performance transient protection diode designed to safeguard sensitive electronic components from transient voltage spikes. Encased in the compact SMB package, this diode is engineered to provide robust protection while ensuring minimal space consumption on your circuit board. It features a precise breakdown voltage range, making it ideal for applications requiring reliable over-voltage protection.
Features
● 600W peak pulse power
● Excellent clamping capability
● Small clamping voltage
● Fast response time: uni-directional less than 1.0ps from 0V to VBR, bi-directional less than 5.0ns
Mechanical characteristics
● Package: Molded package
● Encapsulation material: Flame-retardant epoxy recognized by UL94V-O
● Terminals: Tin-plated
● Polarity: Cathode indicated by color band
● Mounting position: Any
Applications
● Power lines
● Personal digital assistants (PDA's)
● Microprocessors based equipment
● Notebooks, Desktops, and Servers
● Cell phone Handsets and Accessories
● Portable Electronics
● Peripherals
