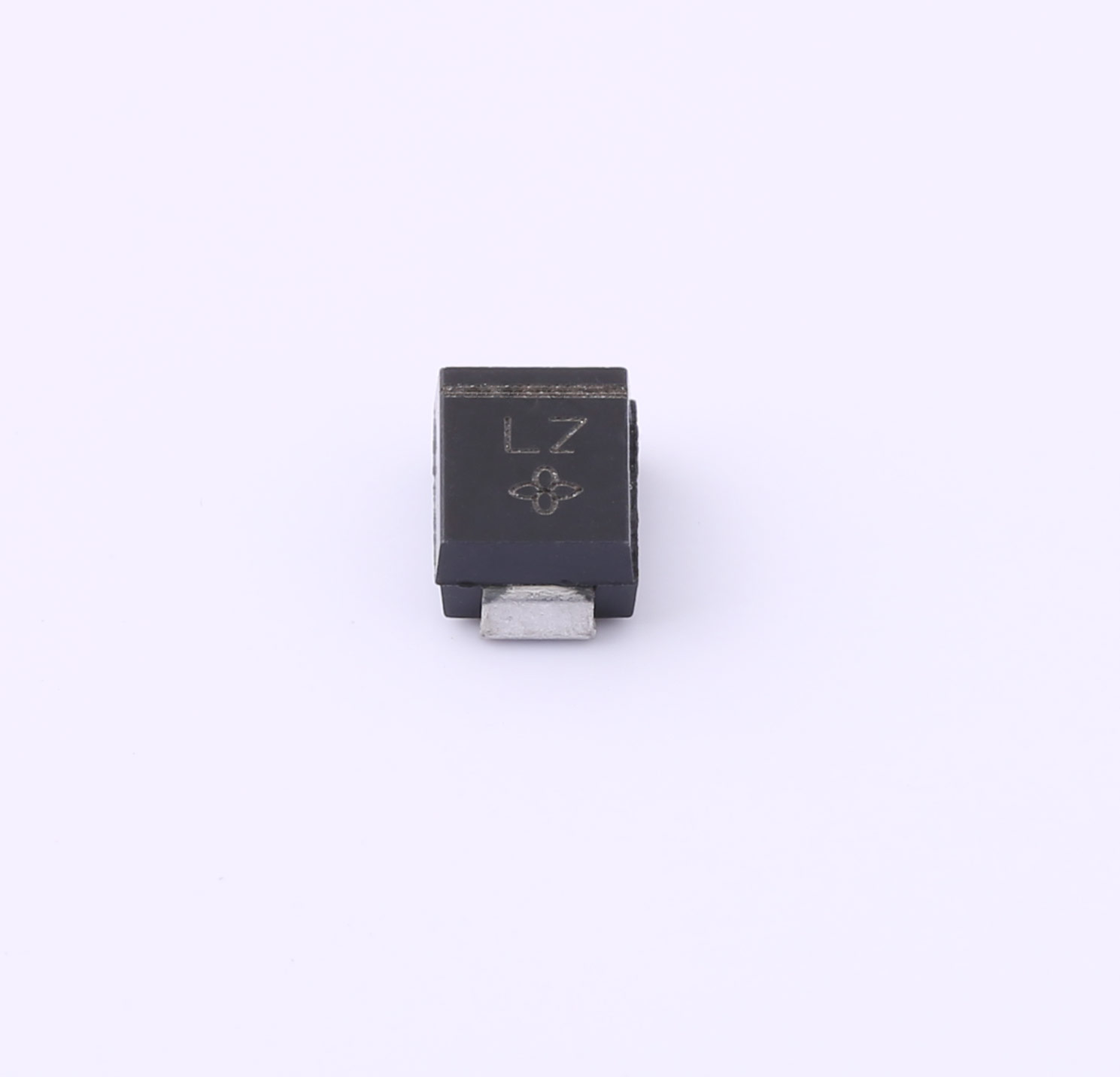

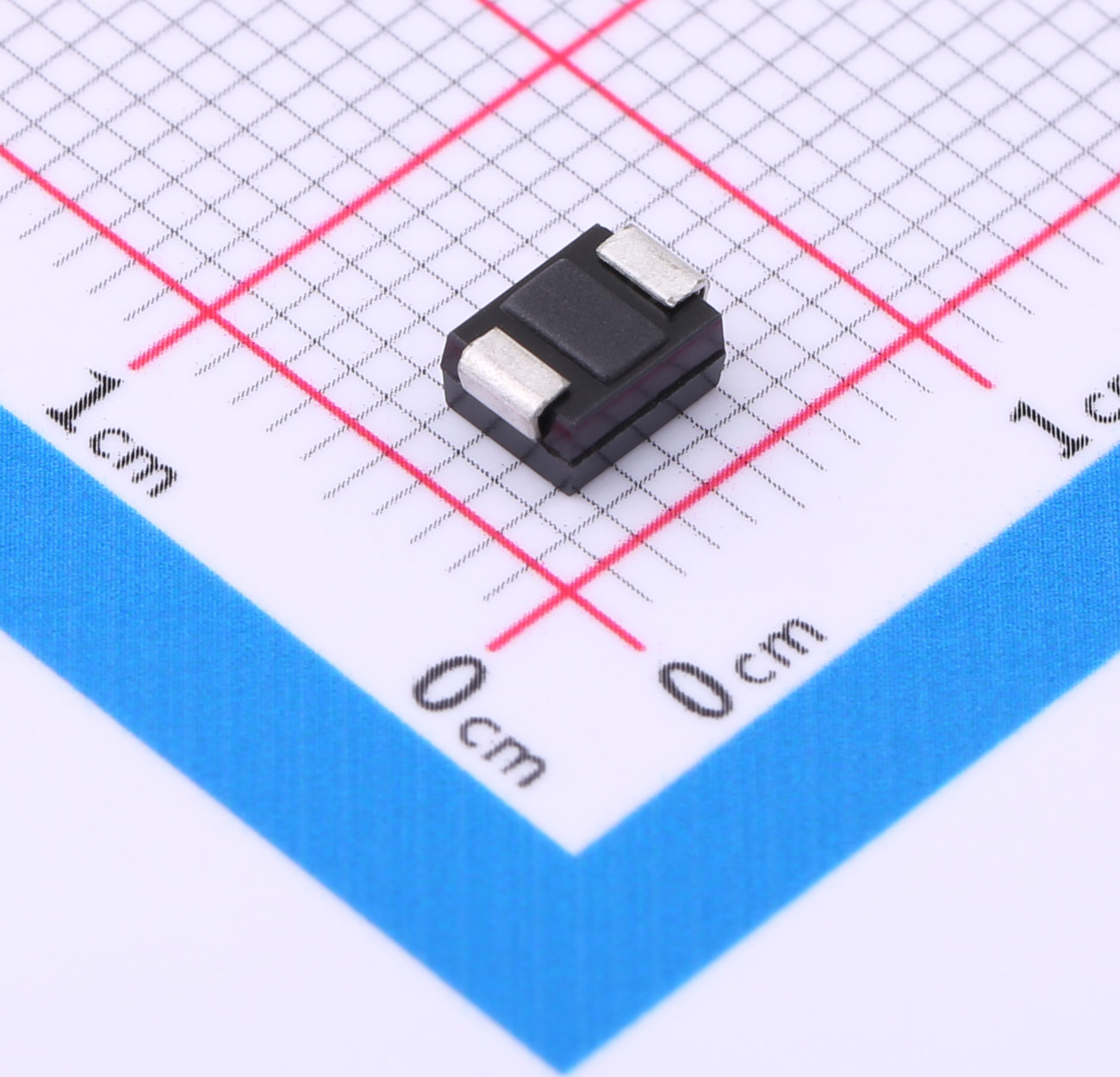

SMBJ24A Transient Voltage Diode DO-214AA
Download datasheet Inquiry
SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
FEATURES
Glass Passivated Die Construction
Uni-Directional and Bi-Directional Versions Available
Excellent Clamping Capability
Fast Response Time
Plastic Case Material has UL Flammability Classification Rating 94V-O
MECHANICAL DATA
Case: SMB/DO-214AA, Molded Plastic
Temminals: Solder Plated, Solderable per MIL-STD-750, Method 2026
Polarity: Cathode Band or Cathode Notch
Marking: Type Number
Weight: 0.093 grams (approx.)
| File Name | Title | Description |
|---|---|---|
| SMBJ22A.pdf | SMBJ22A | - |
