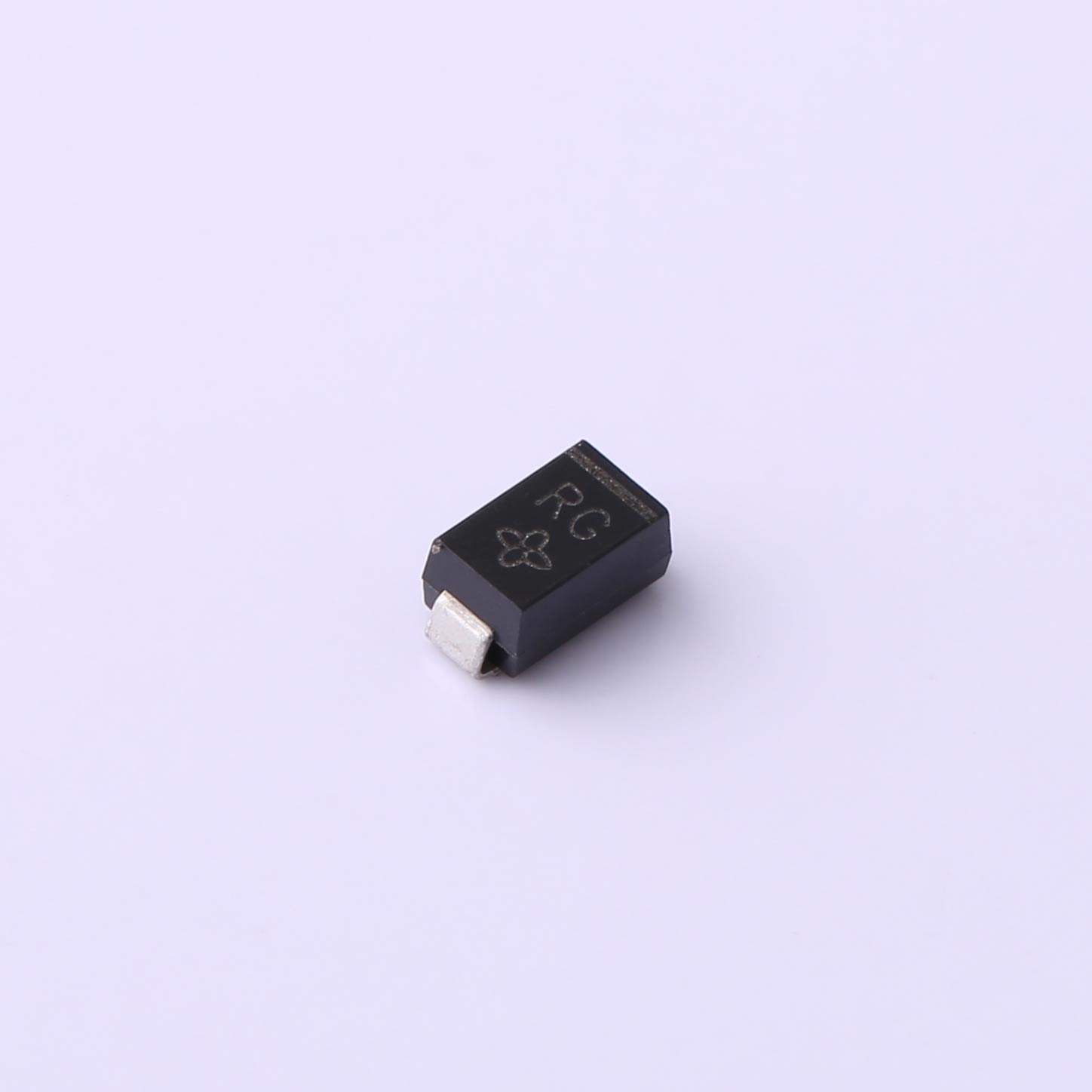

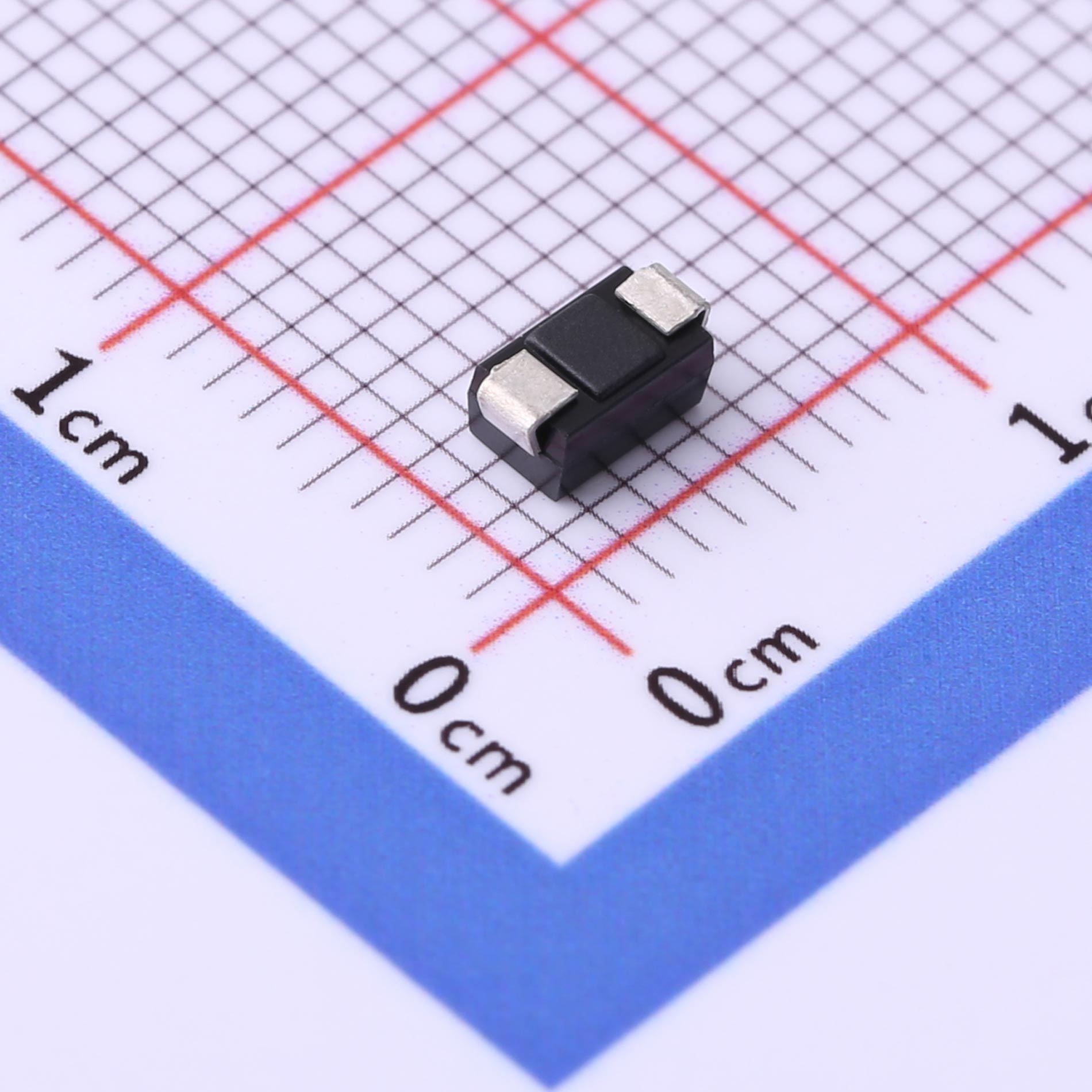

SMAJ58A Transient Protection Diode SMA
Download datasheet Inquiry
Features
Glass Passivated Die Construction
Uni-and Bi-Directional Versions Available
Excellent Clamping Capability
Fast Response Time
Plastic Case Material has UL FlammabilityClassification Rating 94V-0
Mechanical Data
Case:JEDEC SMA(DO-214AC),Transfer Molded Epoxy
Terminals:Solder Plated,Solderable per MIL-STD-750,Method 2026
Polarity:Cathode Band Except Bi-Directiona
| File Name | Title | Description |
|---|---|---|
| SMAJ58A.pdf | SMAJ58A | - |
