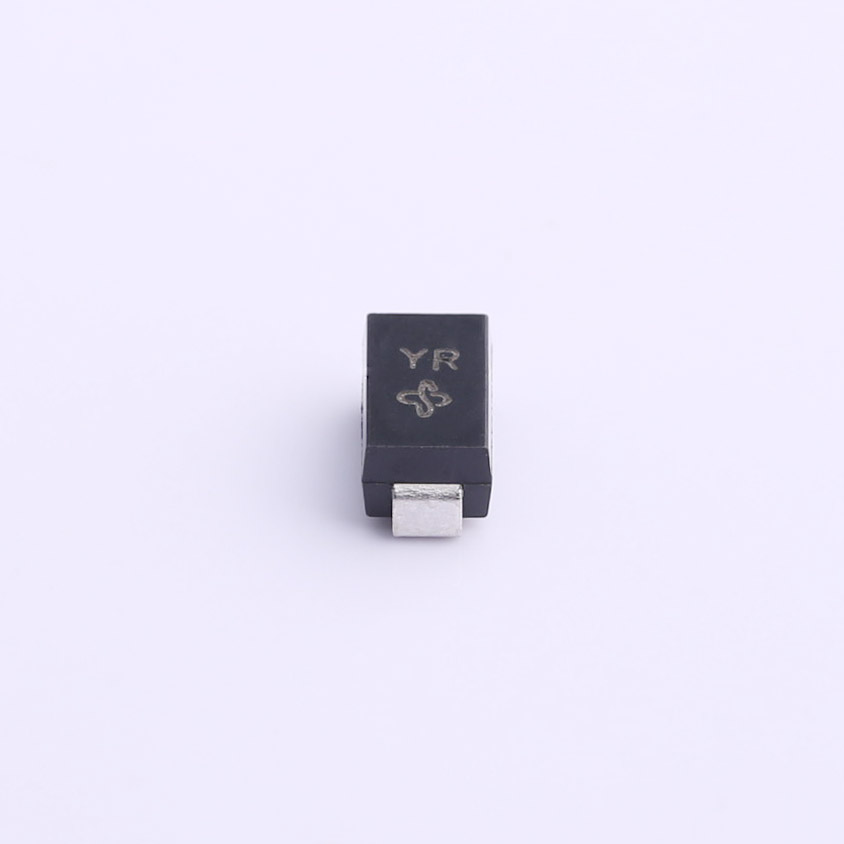

The Polar Bidirectional TVS (Transient Voltage Suppression) Diode is a versatile semiconductor device designed to protect electronic circuits from transient voltage events in both directions. With a working peak reverse voltage (Vrwm) of 40V, this diode effectively safeguards sensitive components from voltage spikes, ensuring enhanced reliability and longevity of electronic systems.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The Polar Bidirectional TVS (Transient Voltage Suppression) Diode is a versatile semiconductor device designed to protect electronic circuits from transient voltage events in both directions. With a working peak reverse voltage (Vrwm) of 40V, this diode effectively safeguards sensitive components from voltage spikes, ensuring enhanced reliability and longevity of electronic systems.
FEATURES
● Glass Passivated Die Construction
● Uni- and Bi-Directional Versions Available
● Excellent Clamping Capability
● Fast Response Time
● Plastic Case Material has UL Flammability Classification Rating 94V-O
MECHANICAL DATA

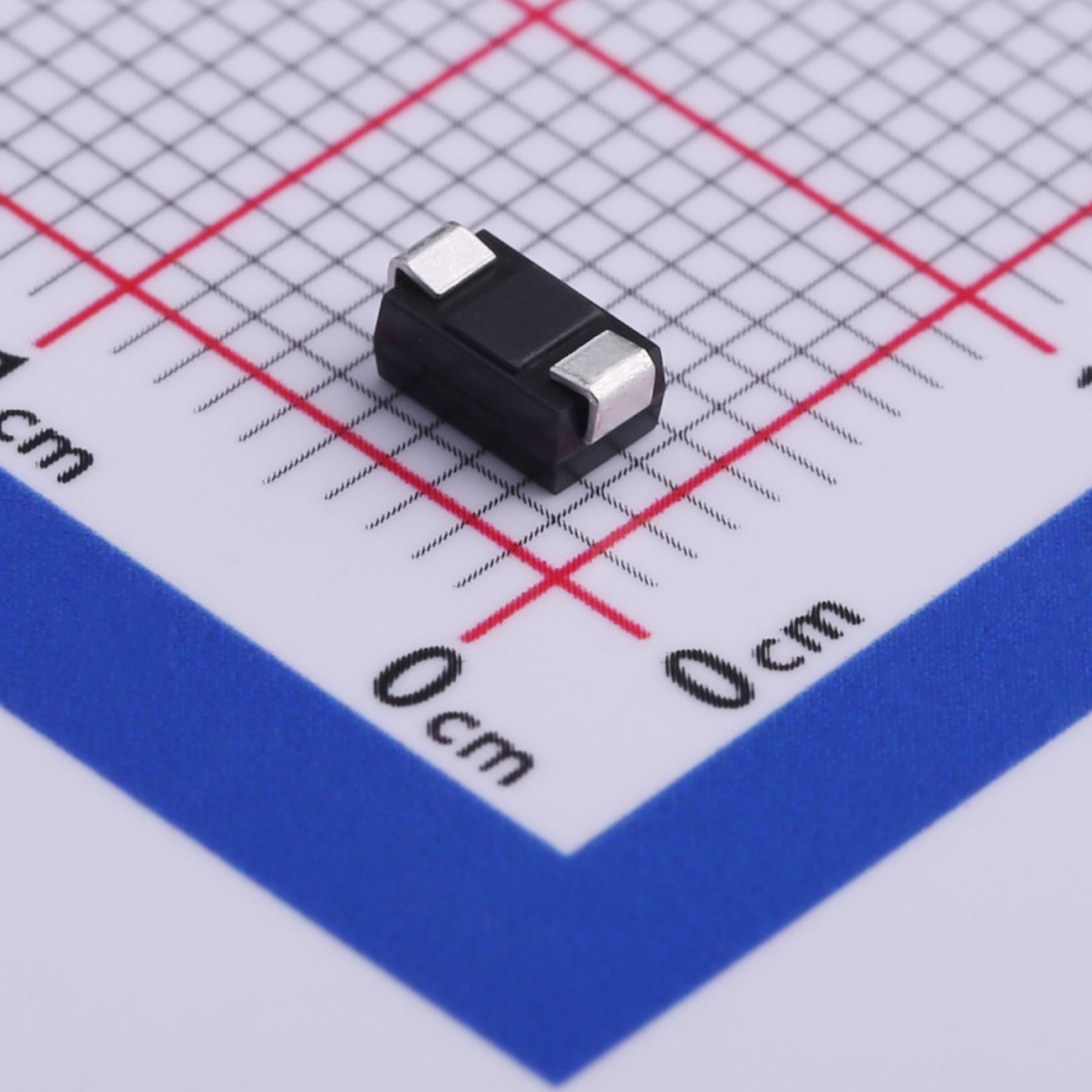

● Case : JEDEC SMA(DO-214AC), Transfer Molded Epoxy
● Terminals : Solder Plated, Solderable per MIL-STD-750, Method 2026
● Polarity : Cathode Band Except Bi-Directional
Applications
● Telecommunication Systems
● Industrial Automation
● Automotive Electronics
● Consumer Electronics
| File Name | Title | Description |
|---|---|---|
| SMAJ24CA.pdf | SMAJ24CA | - |
