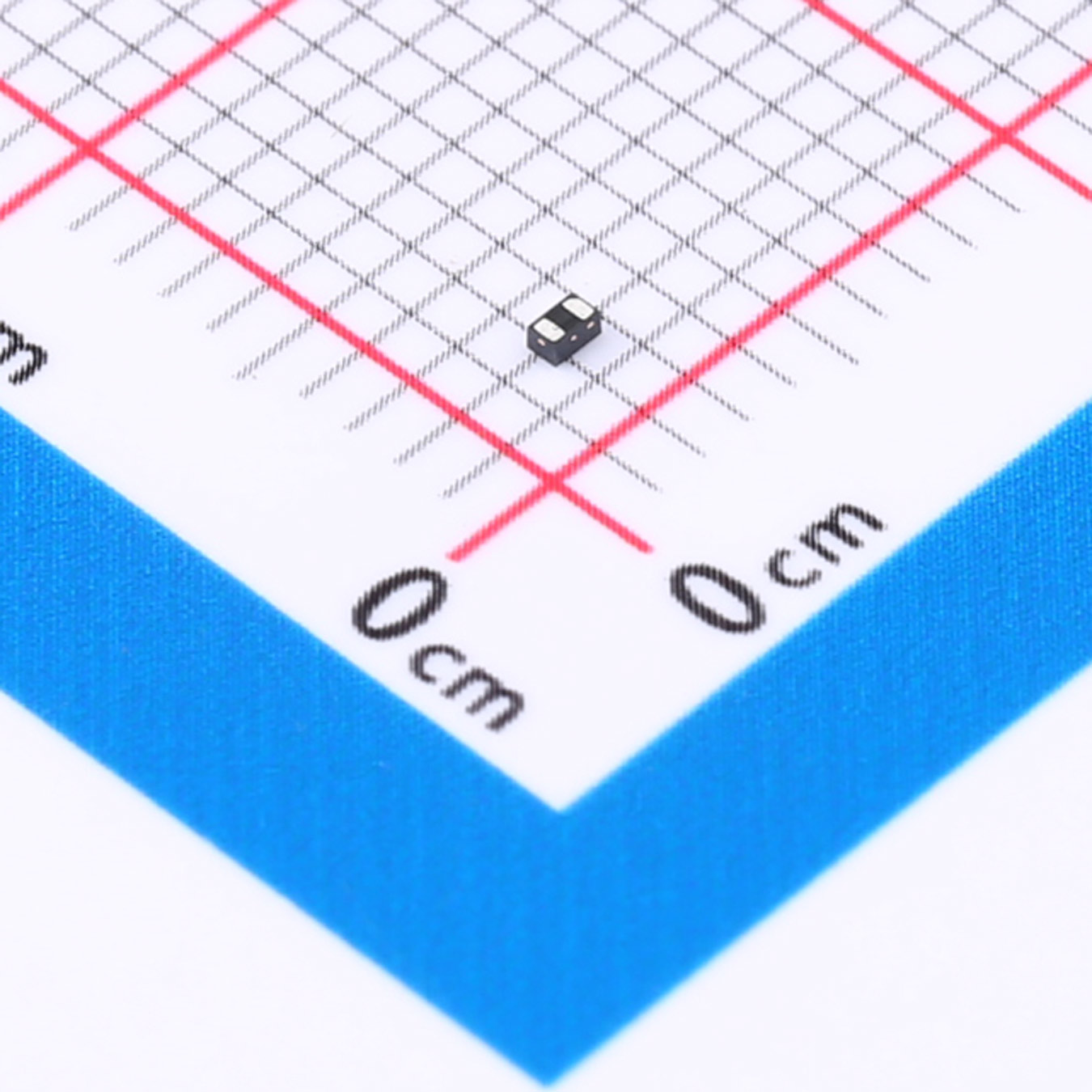

The SLPTVS5V5D1BL is designed to protect voltage sensitive component from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its small size, it is suited for use in cellular phones, portable devices, digital cameras, power supplies and many other portable applications where board space comes at a premium. Also because of its low capacitance, it is suited for use in high frequency designs such as high speed line application. This device has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), and EFT (electrical fast transients)

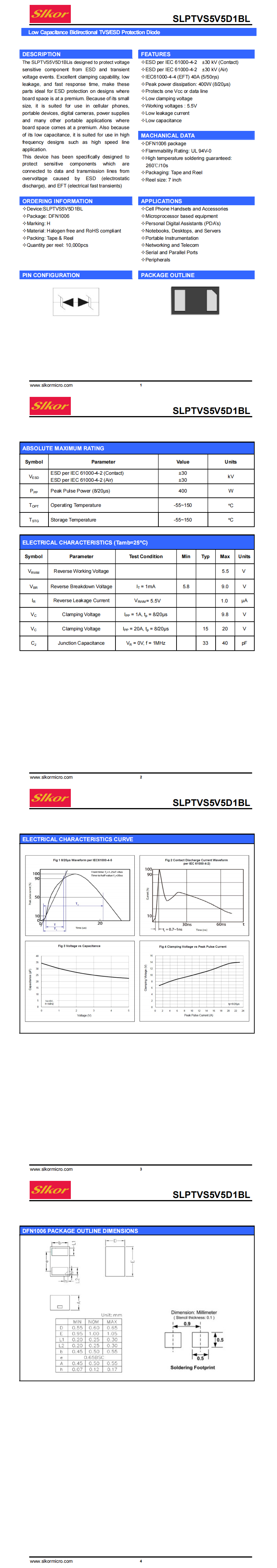

Download datasheet Inquiry
Description
l The SLPTVS5V5D1BL is designed to protect voltage sensitive component from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its small size, it is suited for use in cellular phones, portable devices, digital cameras, power supplies and many other portable applications where board space comes at a premium. Also because of its low capacitance, it is suited for use in high frequency designs such as high speed line application. This device has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), and EFT (electrical fast transients)
Features
l ESD per IEC 61000-4-2 ±30 kV (Contact)
l ESD per IEC 61000-4-2 ±30 kV (Air)
l IEC61000-4-4 (EFT) 40A (5/50ηs)
l Peak power dissipation: 400W (8/20μs)
l Protects one Vcc or data line
l Low clamping voltage
l Working voltages : 5.5V
l Low leakage current
l Low capacitance
Mechanical Data
l DFN1006 package
l Flammability Rating: UL 94V-0
l High temperature soldering guaranteed: 260℃/10s
l Packaging: Tape and Reel
l Reel size: 7 inch
Ordering Information
l Device:SLPTVS5V5D1BL
l Package: DFN1006
l Marking: H
l Material: Halogen free and RoHS compliant
l Packing: Tape & Reel
l Quantity per reel: 10,000pcs
Applications
l Cell Phone Handsets and Accessories
l Microprocessor based equipment
l Personal Digital Assistants (PDA’s)
l Notebooks, Desktops, and Servers
l Portable Instrumentation
l Networking and Telecom
l Serial and Parallel Ports
l Peripherals
| File Name | Title | Description |
|---|---|---|
| SLPTVS5V5D1BL.PDF | SLPTVS5V5D1BL | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
Vrwm:10.2V VBR(min):11.4V VBR(max):12.6V Ir:5μA VC:16.7V Ppp@10/1000μs:600W
This high-power TVS (Transient Voltage Suppression) Diode, featuring a color-banded cathode for straightforward identification, is engineered to deliver robust protection against high-energy voltage spikes. Its advanced design ensures effective clamping and suppression in circuits requiring high transient energy handling.
● SLE0504/SLE0503 are surge rated diode arrays designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients). ● The unique design incorporates surge rated, low capacitance steering diodes and a TVS diode in a single package. During transient conditions, the steering diodes direct the transient to either the positive side of the power supply line or to ground. The internal TVS diode prevents over-voltage on the power line, protecting any downstream components. ● The low capacitance array configuration allows the user to protect four high-speed data or transmission lines. The low inductance construction minimizes voltage overshoot during high current surges.
The BTRD04A15 is a 15V bi-directional TVS diode, utilizingleading monolithic silicon technology to provide fastresponse time and low ESD clamping voltage, making thisdevice an ideal solution for protecting voltage sensitive data and power line. The complies with the IEC 61000-4-2 (ESD) with ±30 kV air and ±30 kV contact discharge. It is assembled into an ultra-small 1.0x0.6mm lead-free DFN package. The small size and high ESD surge protection make an ideal choice to protect cell phone, digital cameras, audio players and many other portable applications.
?The Polar Bidirectional TVS Diode is a high-performance semiconductor device designed to protect sensitive electronic circuits from transient voltage events in both directions. It effectively clamps excessive voltage levels and dissipates surge currents, ensuring the reliability and longevity of electronic systems.
The Polar Bidirectional TVS (Transient Voltage Suppression) Diode is a versatile semiconductor device engineered to protect electronic circuits from transient voltage events. It features bidirectional clamping capabilities, meaning it can protect against positive and negative voltage spikes, ensuring robust protection in both directions.
The Polar Unidirectional TVS Diode is a specialized semiconductor device designed to protect sensitive electronic circuits from transient voltage events. With its precise specifications and robust design, it provides effective voltage clamping and transient suppression, ensuring the reliability of electronic systems.
?The Polar Bidirectional TVS (Transient Voltage Suppression) Diode is a specialized semiconductor component engineered to protect sensitive electronic circuits from transient voltage spikes and surges. Designed for bidirectional operation, it effectively clamps excessive voltage transients to safeguard connected devices from potential damage.
