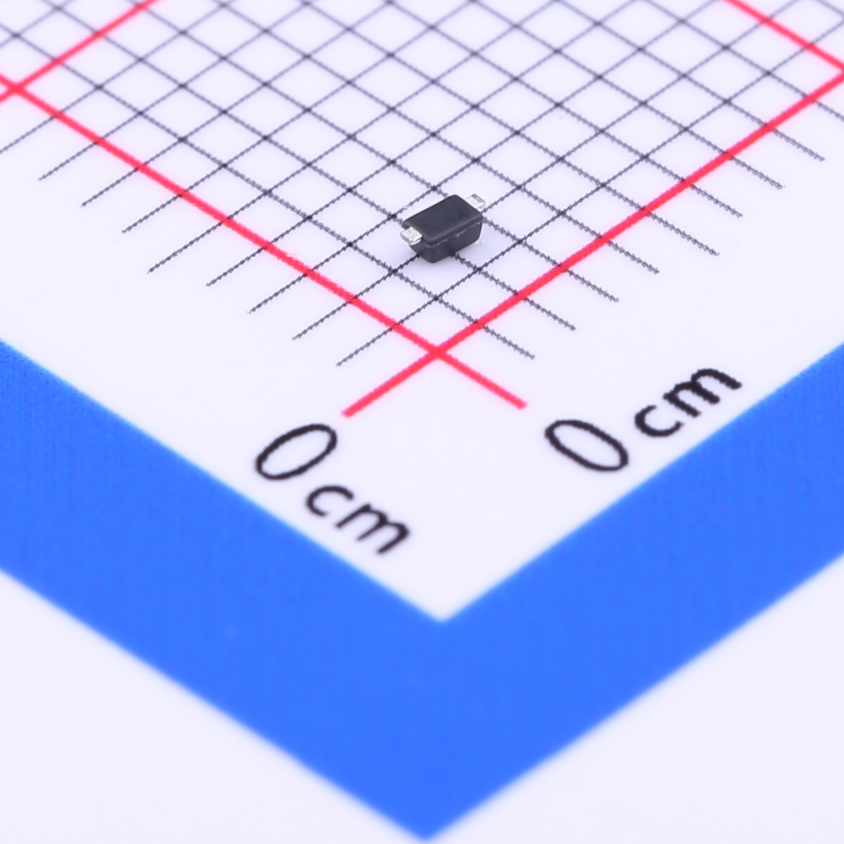

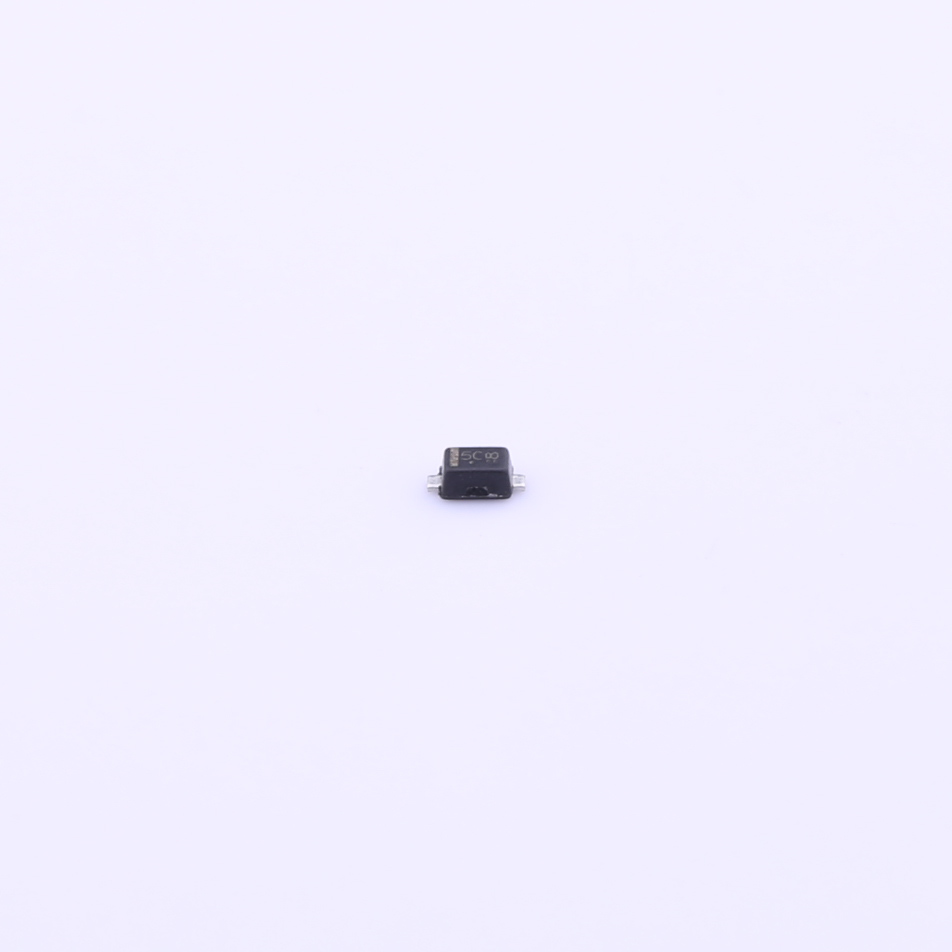

The SLESD5Z series are designed to protectvoltage sensitive components from ESD and transientvoltage events.Excellent clamping capability,lowleakage,and fast response time,make these partsideal for ESD protection on designs where board spaceis at a premium.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The SLESD5Z series are designed to protectvoltage sensitive components from ESD and transientvoltage events.Excellent clamping capability,lowleakage,and fast response time,make these partsideal for ESD protection on designs where board spaceis at a premium.
Features
● Small Body Outline Dimensions
● Low Body Height
● Peak Power up to 200 Watts @8x20_μs Pulse
● LowLeakage current
● Response Time is Typically<1 ns
Applications
● Cellular phones
● Portable devices
● Digital cameras
● Power supplies

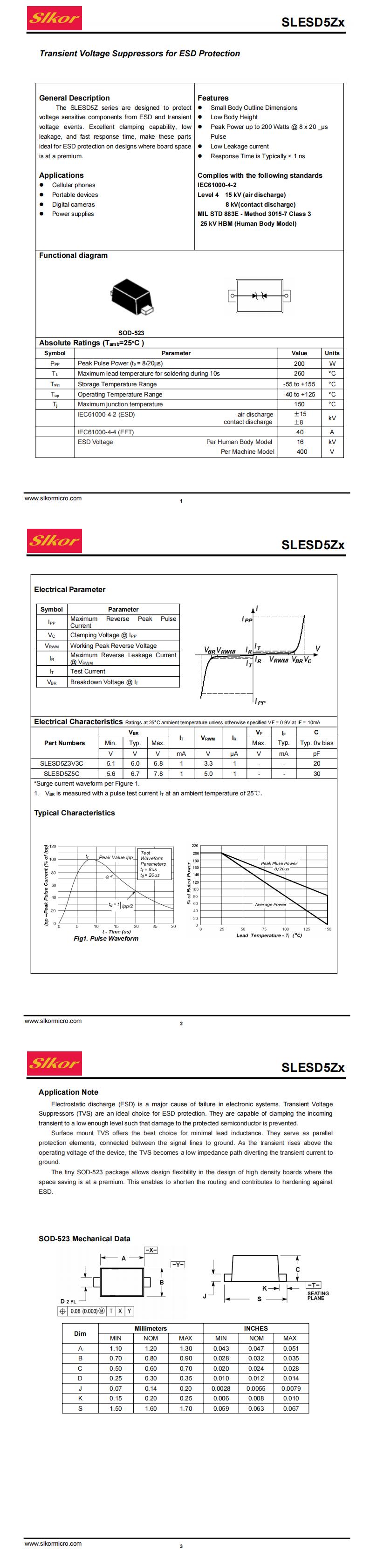

| File Name | Title | Description |
|---|---|---|
| SLESD5Z5C.pdf | SLESD5Z5C | - |
