The Polar Bidirectional TVS (Transient Voltage Suppression) Diode is a versatile component designed to protect electronic circuits from transient voltage events in both directions. This bidirectional diode offers robust protection against voltage spikes, ensuring the reliability and longevity of sensitive electronics.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The Polar Bidirectional TVS (Transient Voltage Suppression) Diode is a versatile component designed to protect electronic circuits from transient voltage events in both directions. This bidirectional diode offers robust protection against voltage spikes, ensuring the reliability and longevity of sensitive electronics.
Features
■ 400 Watts peak pulse power (tp = 8/20μs)
■ Bidirectional configurations
■ Solid-state silicon-avalanche technology
■ Low clamping voltage
■ Low leakage current
■ IEC 61000-4-2 ±30kV contact ±30kV air
■ IEC 61000-4-4 (EFT) 40A(5/50ns)
■ IEC 61000-4-5 (Lightning) 9A(8/20μs)
Applications
■ Dataline
■ Automatic Teller Machines
■ Net works
■ Power line

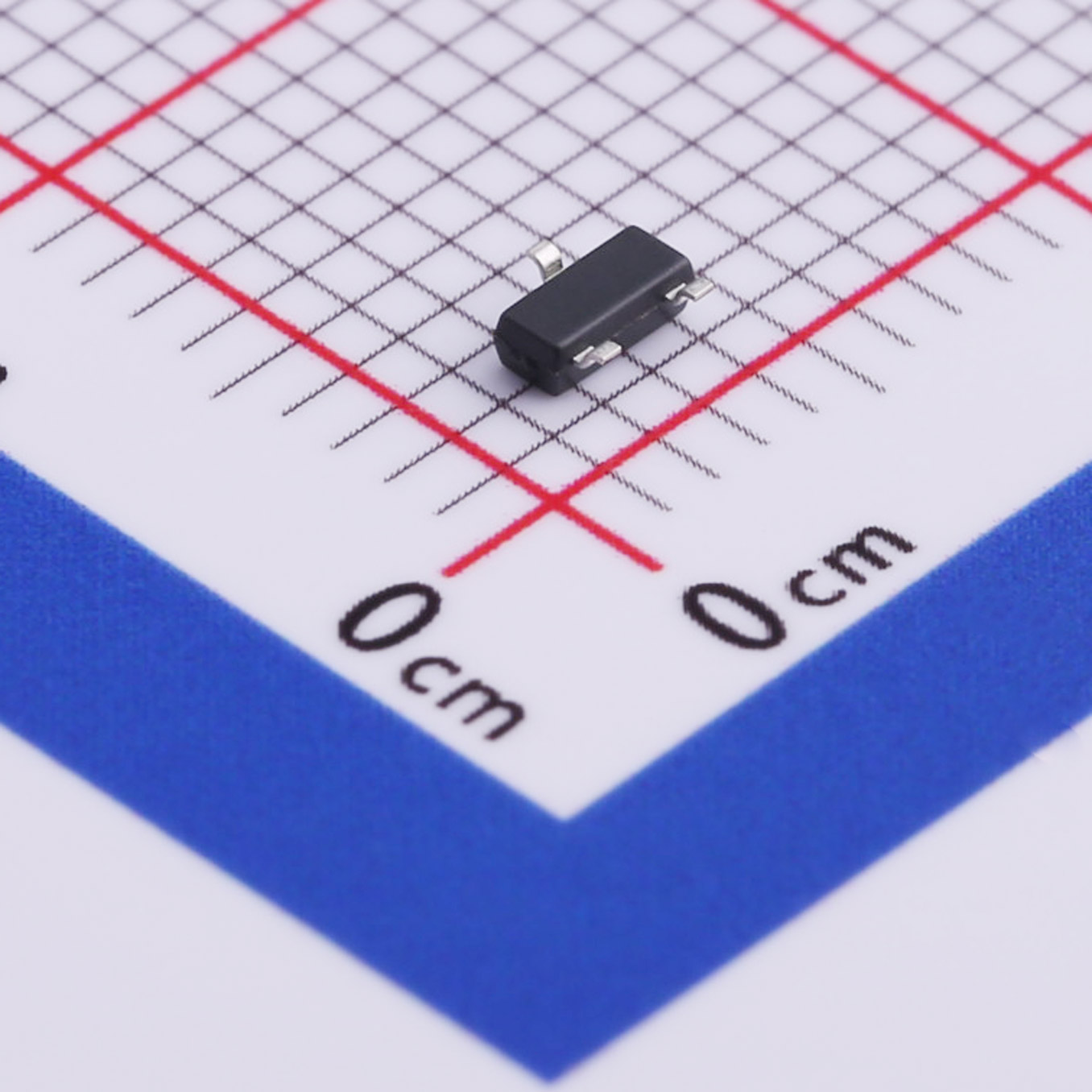

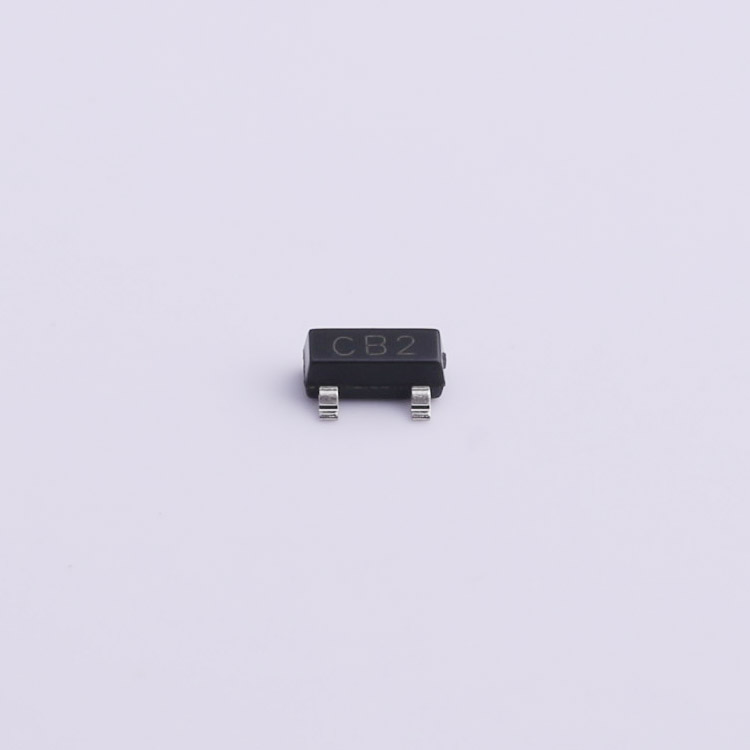

Mechanical Data
■ SOT-23 package
■ Molding compound flammability rating: UL 94V-0
■ Packaging: Tape and Reel
■ RoHS/WEEE Compliant
| File Name | Title | Description |
|---|---|---|

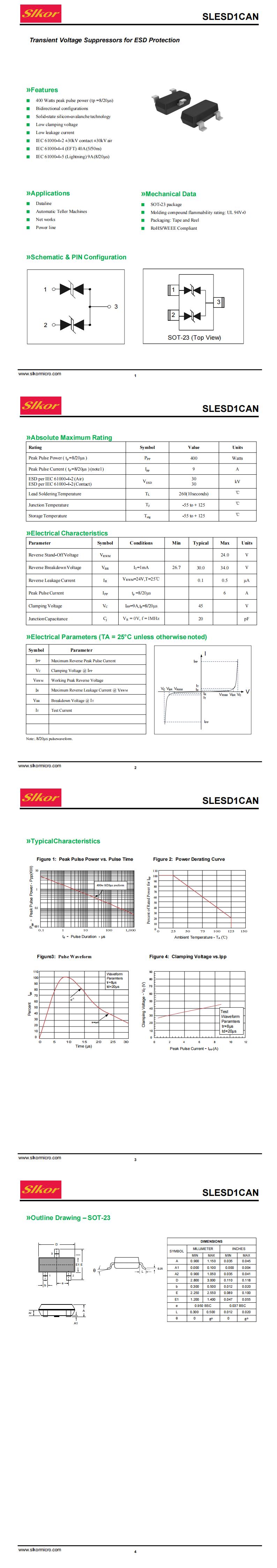

| SLESD1CAN.pdf | SLESD1CAN | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
