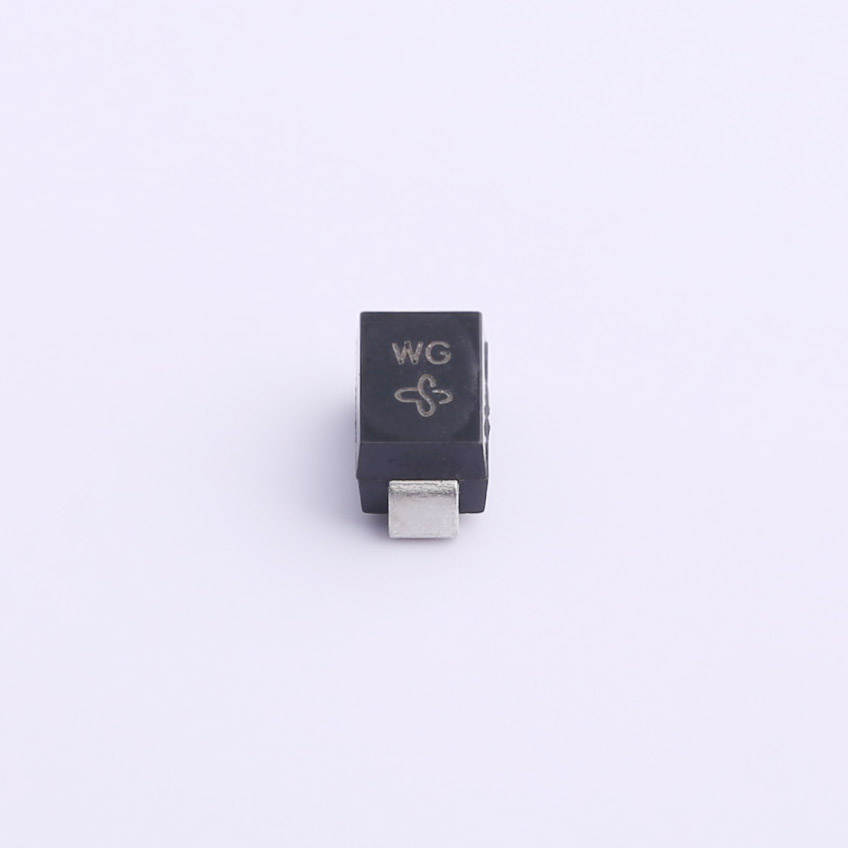

The Polar Bidirectional TVS (Transient Voltage Suppression) Diode is a compact and efficient electronic component designed to protect sensitive circuits from transient voltage spikes in both directions. With a working peak reverse voltage (Vrwm) of 6V, this diode ensures reliable protection against voltage surges, maintaining the integrity of critical electronic systems.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The Polar Bidirectional TVS (Transient Voltage Suppression) Diode is a compact and efficient electronic component designed to protect sensitive circuits from transient voltage spikes in both directions. With a working peak reverse voltage (Vrwm) of 6V, this diode ensures reliable protection against voltage surges, maintaining the integrity of critical electronic systems.
Features
● Glass Passivated Die Construction
● Uni- and Bi-Directional Versions Available
● Excellent Clamping Capability
● Fast Response Time
● Plastic Case Material has UL Flammability Classification Rating 94V-O
Mechanical Data

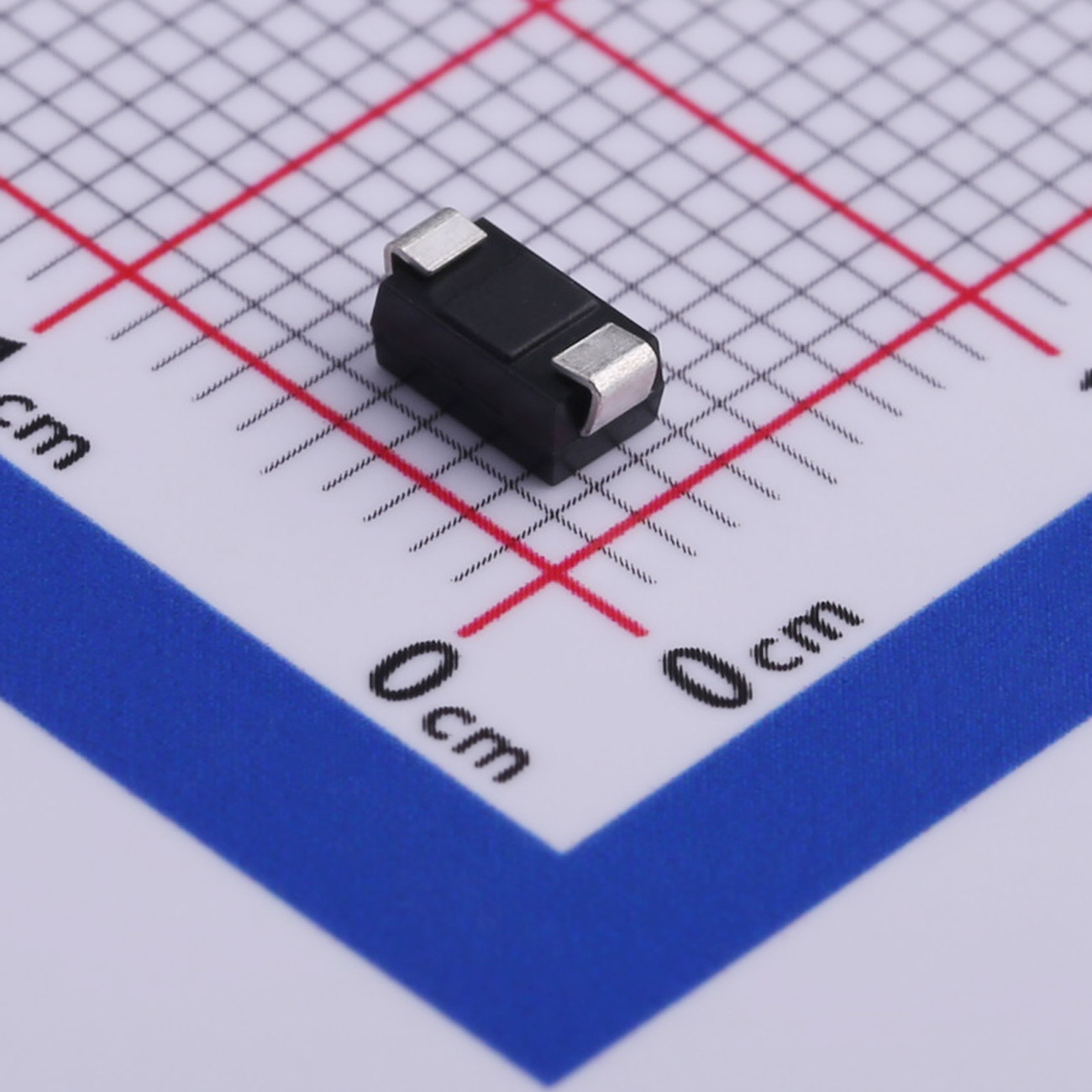

● Case : JEDEC SMA(DO-214AC), Transfer Molded Epoxy
● Terminals : Solder Plated, Solderable per MIL-STD-750, Method 2026
● Polarity : Cathode Band Except Bi-Directional
Applications
● Consumer Electronics
● Automotive Electronics
● Industrial Controls
● Telecommunication Equipment
| File Name | Title | Description |
|---|---|---|
| SMAJ24CA.pdf | SMAJ24CA | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
?The Polar TVS Diode is an advanced transient voltage suppression component engineered to protect sensitive electronic circuits from voltage transients and surges. With a robust design and precise specifications, it offers reliable performance in safeguarding electronics against damaging voltage spikes.
?The Polar Bidirectional TVS (Transient Voltage Suppression) Diode is an advanced semiconductor component designed to protect sensitive electronic circuits from transient voltage spikes and surges. It provides bidirectional clamping, ensuring robust protection against voltage fluctuations in both directions. With a compact form factor and high reliability, it is an essential safeguard for modern electronics.
SMAJ28A TVS Transient Voltage Suppression DO-214AC
The Polar Unidirectional TVS Diode is a specialized semiconductor device designed to protect sensitive electronic circuits from transient voltage spikes and surges. It functions by clamping excessive voltages to safe levels, thereby safeguarding electronic components from potential damage and ensuring reliable operation.
The Polar Bidirectional TVS (Transient Voltage Suppression) Diode is a highly efficient semiconductor device engineered to protect sensitive electronic circuits from transient voltage spikes and surges. Featuring bidirectional clamping capabilities, it offers robust protection in both directions, ensuring the reliable operation of electronic components under varying voltage conditions.
The Polar Unidirectional TVS (Transient Voltage Suppression) Diode is a specialized electronic component designed to protect sensitive circuits from voltage spikes and transients in a single direction. With robust clamping capabilities and low leakage characteristics, it ensures reliable performance under varying electrical conditions.
?The Polar Unidirectional TVS (Transient Voltage Suppression) Diode is a specialized electronic component designed to protect sensitive circuits from transient voltage spikes and surges. With a VRWM (Working Peak Reverse Voltage) of 5V, this diode is optimized for unidirectional transient voltage suppression. It features a VBR (Breakdown Voltage) ranging from 6.4V (minimum) to 7V (maximum), initiating conduction to clamp voltages exceeding these thresholds. The diode maintains an Ir (Reverse Leakage Current) of 400μA, ensuring minimal standby power consumption. It can handle peak pulse currents (Ipp) of up to 21.7mA for 10/1000μs pulses, with a low clamping voltage (VC) of 9.2V. Additionally, it offers a Ppp (Peak Pulse Power) rating of 200W for 10/1000μs pulses, effectively dissipating transient power to safeguard connected electronics.
?The Polar Bidirectional TVS (Transient Voltage Suppression) Diode is an advanced semiconductor component designed to safeguard sensitive electronic circuits from transient voltage spikes and surges in both directions. Featuring a VRWM (Working Peak Reverse Voltage) of 33V, this diode offers reliable protection within its operational voltage range. It is engineered with bidirectional VBR (Breakdown Voltage) specifications, with a minimum clamping voltage of 36.7V and a maximum of 40.6V, ensuring effective suppression of voltage spikes to protect connected components. The diode maintains an ultra-low reverse leakage current (Ir) of 1μA, ensuring minimal power consumption and high efficiency during normal operation. It can handle peak pulse currents (Ipp) of up to 28.2A and transient power dissipation (Ppp) of 1500W for 10/1000μs pulses.
