Diodes are fundamental components in electronic circuits, serving essential roles across a broad range of applications. This article delves into the characteristics, parameters, and applications of diodes, providing crucial information for procurement and engineering teams in the consumer electronics industry. Understanding the intricacies of diodes is vital for optimizing electronic designs and ensuring the reliability of electronic devices.

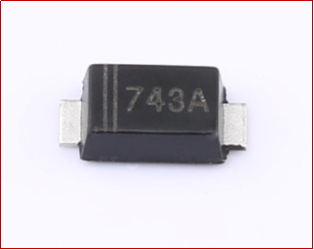

SLKOR 1SMAF4743A Zener Diode SMAF

What is a Diode?

A diode is a semiconductor device that allows current to flow in one direction only. This unidirectional behavior is achieved through the use of a p-n junction, which forms the basis of the diode's operation. When forward-biased, the diode conducts current, whereas it blocks current flow when reverse-biased. This characteristic makes diodes essential in rectification, signal modulation, and protection circuits.

The Development History of Diodes

The concept of the diode dates back to the early 20th century. The first practical diodes were the vacuum tube rectifiers, which were later succeeded by semiconductor diodes in the 1950s. The advent of silicon technology further enhanced the performance and reliability of diodes, leading to their widespread use in modern electronics. Today, advancements in materials and manufacturing techniques continue to evolve the diode technology.

Characteristics of Diodes

Diodes exhibit several key characteristics that are crucial for their operation and application:

Forward Voltage drop: The voltage required for the diode to conduct current in the forward direction.
Reverse Breakdown Voltage: The voltage at which the diode begins to conduct in the reverse direction.
Reverse Recovery Time: The time required for the diode to switch from conducting to blocking mode.

Understanding these characteristics is essential for selecting the right diode for specific applications and ensuring optimal performance in electronic circuits.

Parameters of Diodes

When evaluating diodes, several key parameters should be considered:

Peak Inverse Voltage (PIV): The maximum reverse voltage that the diode can withstand without breaking down.
Forward Current (IF): The maximum current that the diode can handle in the forward direction.
Power Dissipation: The amount of power the diode can dissipate without damage, typically managed through heat sinks or other cooling methods.

These parameters are critical for ensuring that the diode performs reliably within its specified limits.

Roles of Diodes in Electronic Circuits

Diodes play several vital roles in electronic circuits:

Rectification: Converting alternating current (AC) to direct current (DC), a fundamental function in power supplies.
Signal Demodulation: Extracting information from modulated signals in communication systems.
Protection: Preventing reverse current damage in sensitive components, commonly used in clamping and snubber circuits.

These roles demonstrate the versatility and importance of diodes in both analog and digital electronic systems.

Applications of Diodes

Diodes are utilized in a wide array of applications, reflecting their versatility and functionality:

Power Rectifiers: Used in power supplies to convert AC to DC.
Signal Processing: Employed in radio frequency circuits and signal modulation.
Protection Circuits: Safeguard against voltage spikes and reverse polarity.

Each application leverages specific properties of diodes to enhance the performance and reliability of electronic devices.

Manufacturers of Diodes

Several reputable companies are known for their high-quality diodes:

Texas Instruments: Offers a wide range of diodes for various electronic applications.
STMicroelectronics: Provides advanced diodes with innovative features for modern electronics.
ON Semiconductor: Known for their reliable and high-performance diodes in diverse industrial sectors.

These manufacturers are key players in the semiconductor industry, contributing to the development and supply of high-quality diodes.

Conclusion

Understanding the fundamentals of diodes is essential for procurement and engineering teams in the consumer electronics industry. From their development history and characteristics to their parameters, roles, and applications, diodes are integral components in modern electronic systems.
