Almost all electronic products need to use operational amplifier, operational amplifier (referred to as operational amplifier), its full English name is Operation Amplifier, abbreviated as OPAM, which is a high-gain voltage amplifier with DC coupling, differential mode input and usually single-ended output. Today, we'll give you some basic knowledge about operation.

Looking through all the books and courses of analog electronic technology, when introducing the operational amplifier circuit, it is nothing more than defining the circuit first. For example, this is a non-inverting amplifier, then deducing the relationship between its output and input, and then getting Vo=(1+Rf)Vi, which is an inverting amplifier, and then getting VO = 0-RF * VI. Finally, students often get the impression that it is enough to remember the formula! If we change the circuit a little, they won't find their way north! I have interviewed at least 100 candidates for electronics major with college degree or above. As a result, I can analyze the operational amplifier circuit given by me perfectly. There are no more than 10 candidates! It is conceivable that other majors graduated.

Today, I'll teach you two invincible tricks. These two tricks are clearly written in all the teaching materials of operational amplifier circuits, namely "virtual short" and "virtual break". However, if you want to use them brilliantly, you must have a deep foundation.

The Concepts of Shortness and Imperfection

Because the voltage amplification factor of operational amplifier is very large, the open-loop voltage amplification factor of general-purpose operational amplifier is above 80dB. However, the output voltage of the operational amplifier is limited, generally ranging from 10V to 14V. Therefore, the differential mode input voltage of the operational amplifier is less than 1mV, and the two input terminals are approximately equipotential, which is equivalent to "short circuit". The larger the amplification factor of the open-loop voltage, the closer the potentials of the two input terminals are to equal. "Virtual short circuit" means that when the operational amplifier is in a linear state, the two input terminals can be regarded as equipotential. This feature is called virtual short circuit, or virtual short circuit for short. Obviously, the two input terminals cannot be really short-circuited. Because the differential mode input resistance of operational amplifier is very large, the input resistance of general-purpose operational amplifier is above 1mω. Therefore, the current flowing into the input terminal of the operational amplifier is often less than 1uA, which is far less than the current of the circuit outside the input terminal. Therefore, the two input terminals of the operational amplifier can usually be regarded as open circuit, and the greater the input resistance, the closer the two input terminals are to open circuit. "Virtual break" means that when the operational amplifier is in a linear state, the two input terminals can be regarded as equivalent open circuits. This feature is called false open circuit, or virtual break for short. Obviously, the two input terminals can't be really disconnected. When analyzing the operational principle of the operational amplifier circuit, first of all, please temporarily forget what co-directional amplification, reverse amplification, adder, subtractor and differential input, and temporarily forget the formula of the input-output relationship. These things will only disturb you and make you more confused. Please ignore the input bias current, common mode rejection ratio, offset voltage and other circuit parameters for the time being. This is something that designers should consider. What we understand is the ideal amplifier (in fact, in maintenance and most design processes, there will be no problem to analyze the actual amplifier as an ideal amplifier). Ok, let's grab two "axe"-"virtual short" and "virtual broken", and begin to "help the ox with my skill".

2f2a8124f27af3be98d8574e34f91332

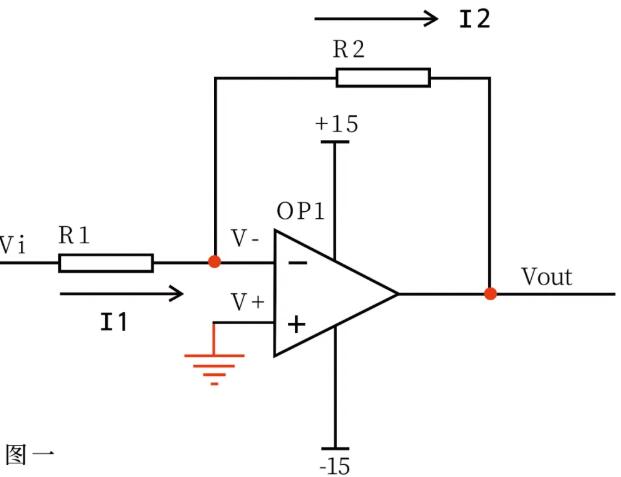

As shown in Figure 1, the non-inverting terminal of an operational amplifier is grounded =0V, and the inverting terminal and the non-inverting terminal are short, so it is also 0V. The input resistance of the inverting input terminal is very high, and there is almost no current injection or outflow. Then R1 and R2 are equivalent to series connection, and the current flowing through each component in a series circuit is the same, that is, the current flowing through R1 and R2 is the same. The current i1 flowing through R1 = (VI-V-)/R1 ... A the current I2 flowing through R2 = (V-VOUT)/R2 ... BV-= V+= 0 ... Ci1 = I2 ... D Vout = (-R2/R1)*Vi is obtained by solving the above junior middle school algebraic equation. This is the input-output relationship of the legendary reverse amplifier.

9cdb13936021ac6f71ae52b1b55e64a0

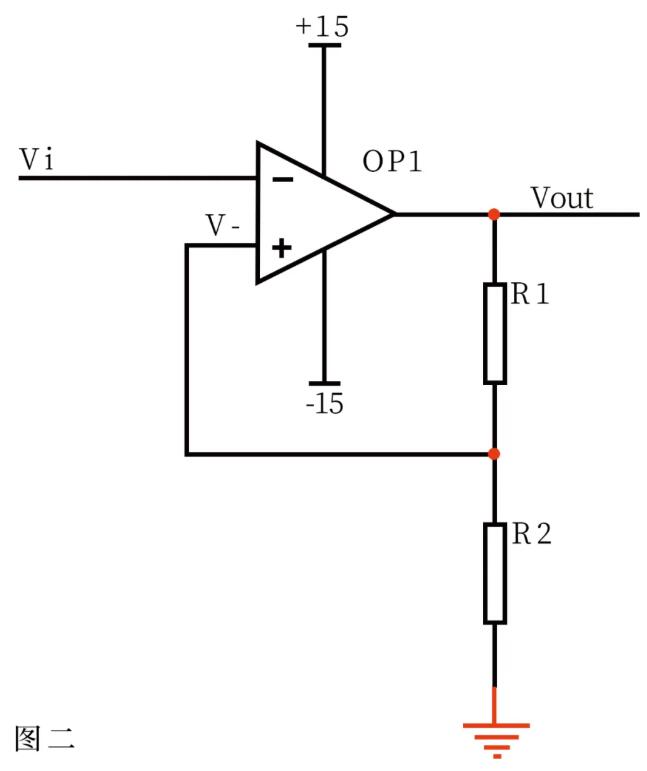

In Figure 2, Vi and V- are imaginary short, so Vi = V- a is imaginary. There is no current input and output at the reverse input terminal, and the current through R1 and R2 is equal. Let this current be I, which is obtained by Ohm's law: I = Vout/(R1+R2) b ViEqual to the voltage division on R2, i.e. Vi = I*R2 ……c Vout=Vi*(R1+R2)/R2 is obtained by abc formula. This is the formula of the legendary non-inverting amplifier.

309ddfdc7fa375fbc17dff319996cc79

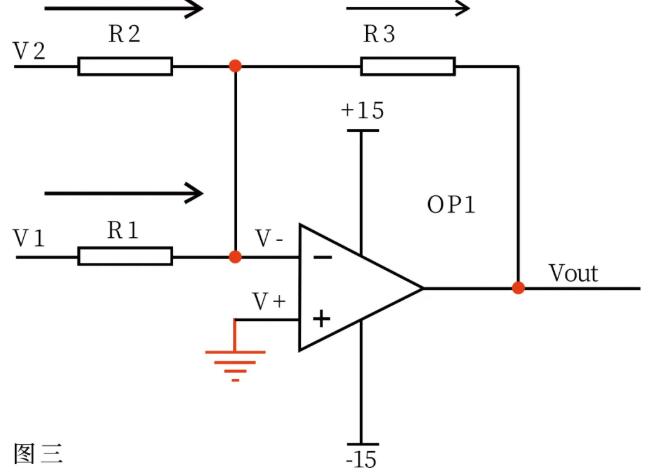

In Figure 3, it is known from imaginary short: V- = V+ = 0 ……a is known from imaginary break and Kirchhoff's law, and the sum of currents through R2 and R1 is equal to the current through R3, so (V1–V-)/R1+(V2–V-)/R2 = (V–VOUT)/R3 …… B is substituted into Formula A, and Formula B becomes

82431d0cfb9d2edf7a5f43e8320196f7

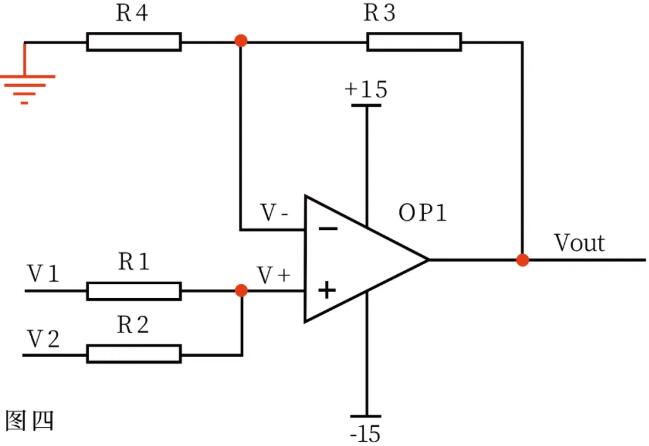

Please look at Figure 4. Because of the virtual break, no current flows through the non-inverting terminal of the operational amplifier, so the currents flowing through R1 and R2 are equal, and similarly, the currents flowing through R4 and R3 are equal. Therefore, (v1–v+)/R1 = (v+-v2)/R2 … A (vout–v-)/R3 = v-/R4 … B is known from the imaginary short: v+= v-… C If R1=R2 and R3=R4, then V+= (v1 bae397da3e608e53cb03439051e5ee0b

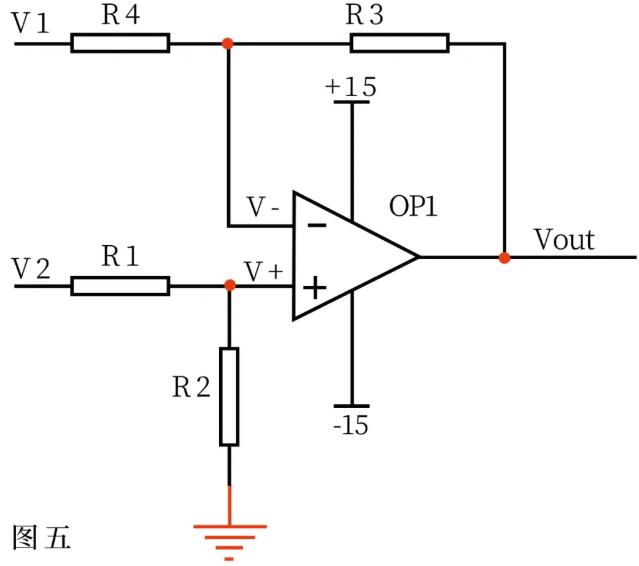

Fig. 5 shows that the current through R1 is equal to the current through R2, and similarly, the current through R4 is equal to the current through R3, so there are (V2–V+)/R1 = V+/R2 … A (V1–V-)/R4 = (V-VOUT)/R3 … B If R1=R2, then V+= V2/2. Then v-= (vout+v1)/2 ... d is known from the imaginary short v+= v-... e so Vout=V2-V1. This is the legendary subtractor.

f9d40f6e781c740a65e42fa5645a5dd6

In the circuit shown in Figure 6, the voltage at the reverse input terminal is equal to that at the same direction terminal, and the current through R1 is equal to that through C1. The current I through R1 = v1/R1 and the current I through C1 = c * duc/dt =-c * dvout/dt, so the output voltage of Vout=((-1/(R1*C1))∫V1dt is proportional to the integration of the input voltage with time. This is the legendary integration circuit. If V1 is a constant voltage U, the above formula is transformed into Vout = -U*t/(R1*C1) t is time, and the output voltage of Vout is a straight line from 0 to negative power supply voltage.

6fe6466d5647626a4c3f3892340c324e

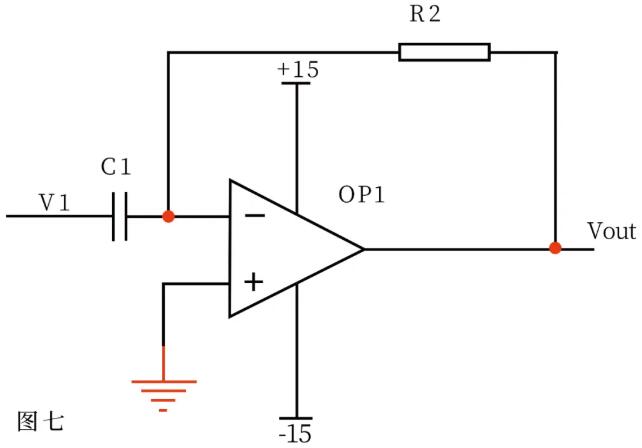

In Figure 7, the current through capacitor C1 and resistor R2 is equal, and the voltage at the same terminal and the reverse terminal of the operational amplifier is equal. Then: Vout = -i * R2 = -(R2*C1)dV1/dt This is a differential circuit. If V1 is a DC voltage added suddenly, the output Vout corresponds to a pulse with the opposite direction to V1.

519d02052e10d1da1976e067513d8166

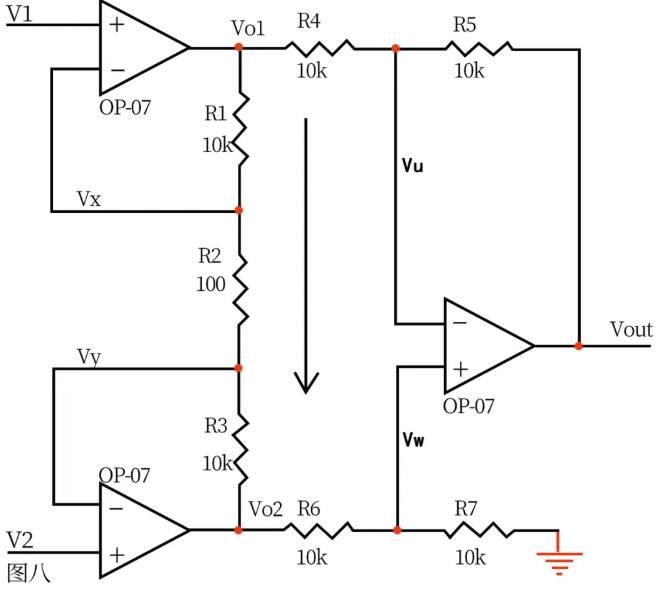

In Figure 8, Vx = V1 ……a Vy = V2 ……b is known by imaginary fault. If no current flows through the input of the operational amplifier, R1, R2 and R3 can be regarded as series connection, and the current through each resistor is the same. The current I = (VX-VY)/R2 ... C is: VO1-VO2 = I * (R1+R2+R3) = (VX-VY) (R1+R2+R3)/R2 ... D is known by imaginary fault, and the current flowing through R6 is equal to that flowing through R7. If R6=R7, VW = Then vout–vu = vu–vo1, so vu = (vout+vo1)/2 … f is known by imaginary short, Vu = Vw ……g is vout = VO2–vo1 of efg … h is vout = (Vy -Vx) (R1+R2+R3)/R2 of dh in the above formula (R1+) This circuit is the legendary differential amplifier circuit.

a6f5995b832798a36f4a716809f0eed3

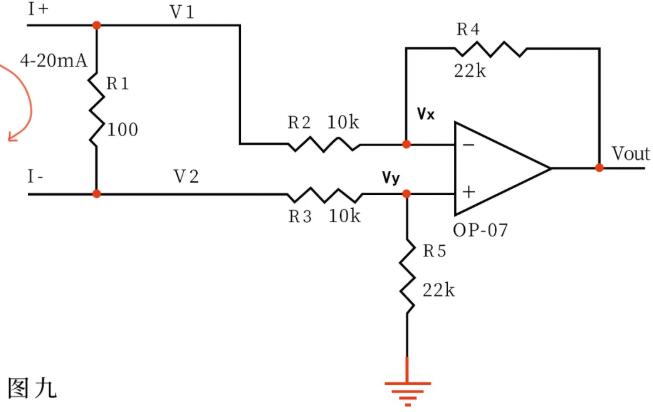

Analyze a circuit that everyone is exposed to more. Many controllers accept 0~20mA or 4~20mA current from various testing instruments. The circuit converts this current into voltage and then sends it to ADC for conversion into digital signal. Figure 9 is such a typical circuit. As shown in figure 4~20mA current flows through the sampling 100Ω resistor R1, and a voltage difference of 0.4~2V will be generated on R1. It is known from the supposition that if no current flows through the input of the operational amplifier, the currents flowing through R3 and R5 are equal, and the currents flowing through R2 and R4 are equal. Therefore: (V2-VY)/R3 = VY/R5 … A (V1-VX)/R2 = (VX-VOUT)/R4 … B: Vx = Vy ……c The current varies from 0 to 20 mA, Then v1 = v2+(0.4 ~ 2) ... d is obtained by substituting cd formula into B formula (v2+(0.4 ~ 2)-vy)/R2 = (vy-vout)/R4 ... e If R3=R2 and R4=R5, then Vout =-(0.4 ~ 2) is obtained by E-A. The formula f Vout = -(0.88~4.4)V, that is, 4~20mA current is converted into -0.88 ~ -4.4V voltage, which can be sent to ADC for processing.

8e567312fe39046cf6e0ebd385497a08

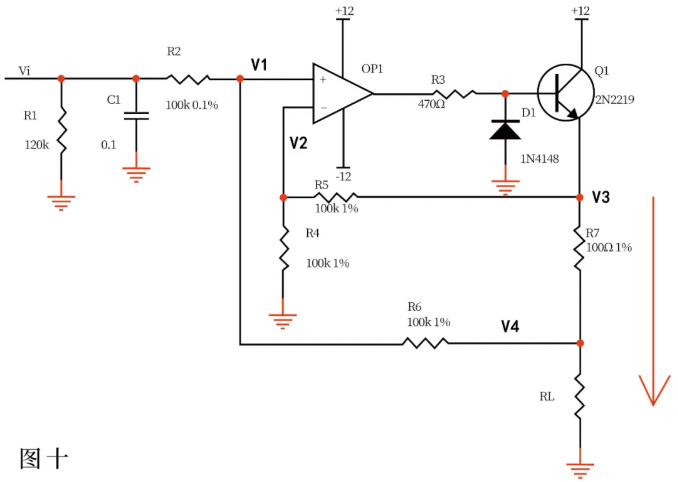

Current can be converted into voltage, and voltage can also be converted into current. Figure 10 is such a circuit. The negative feedback in the figure is not directly fed back through the resistor, but the emitter junction of transistor Q1 is connected in series. Don't think it is a comparator. As long as it is an amplifier circuit, the law of virtual short and virtual break is still in line!

It is known from the supposition that no current flows through the input of the operational amplifier.，

Then (VI–v1)/R2 = (v1–v4)/R6 … a
In the same way (v3–v2)/r5 = v2/R4 … b
Knowing v1 = v2 ... c by virtual short.
If R2=R6 and R4=R5, V3-V4=Vi by abc formula

The above formula shows that if the voltage across R7 is equal to the input voltage Vi, the current I through R7 = VI/R7, and if the load Rl < < 100 kω, the current through RL and R7 is basically the same.
