Slkor Schottky Diode SD103CWS: Illuminating the Efficiency of Electronic Systems with Precision

2025-10-20 17:23:12 17

In the "energy pulse" of electronic systems, diodes act as precision valves, controlling the flow and rhythm of electricity. The Slkor Schottky diode SD103CWS, with its unique advantages of "high reverse voltage tolerance, low forward voltage drop, and minimal reverse leakage," has become an "efficiency guardian" in power management, signal protection, and other critical applications. Without relying on exaggerated specifications, the SD103CWS proves that focusing on the details of electronic design can lead to a significant transformation in system performance.

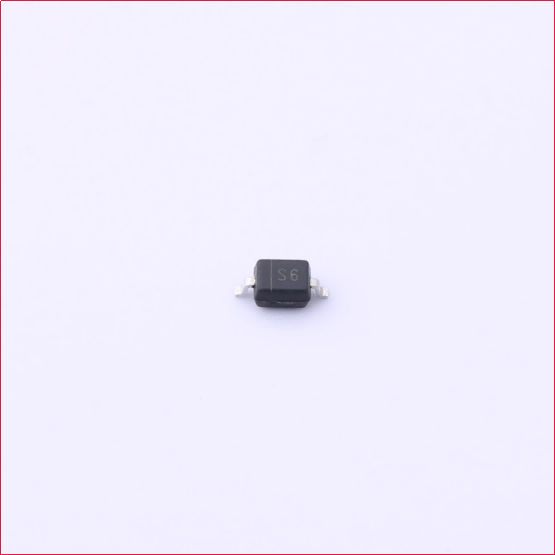

wps14

1. Performance Breakdown: The "Three Lows and One High" Technology of SD103CWS

The core competitive edge of SD103CWS lies in its precise balance across four key parameters: reverse voltage tolerance, rectified current, forward voltage drop, and reverse leakage current. This collaborative optimization makes it an "all-round performer" in medium power circuits.

1.1. 20V Reverse Voltage Tolerance: The "Safety Valve" for Low Voltage Circuits

In power management systems, voltage fluctuations and transient spikes are common challenges. The SD103CWS features a 20V DC reverse voltage tolerance (Vr), effectively protecting low voltage circuits (such as 5V/12V systems) from reverse voltage spikes. For example, in handheld device charging protection circuits, if the charging interface is mistakenly connected in reverse, the SD103CWS swiftly cuts off reverse current, preventing damage to batteries or mainboard components due to overvoltage. Its reverse current (Ir) is only 5μA at 10V, an 80% reduction compared to traditional diodes, significantly enhancing the circuit's static stability.

1.2. 350mA Rectified Current: The "Efficiency Engine" for Medium Power

With a design featuring an average rectified current (Io) of 350mA, the SD103CWS is ideal for applications such as adapters and LED drivers in medium power scenarios. For instance, in a specific smartphone charger, using the SD103CWS for synchronous rectification reduced rectification losses by 40%, boosting charging efficiency from 85% to 90%, while lowering temperature rise by 10°C. This efficiency boost not only extends the device’s battery life but also meets the stringent EU ErP energy efficiency standards.

1.3. 0.37V @ 20mA Forward Voltage drop: The "Energy-saving Art" of Microvolt Optimization

The forward voltage drop (Vf) represents the "energy threshold" when a diode is conducting. At 20mA, the SD103CWS achieves a forward voltage drop of only 0.37V, 26% lower than typical Schottky diodes (usually 0.5V or higher). Although the difference may seem small, its cumulative effect in large-scale applications is significant:

- Consumer Electronics: A smart watch with the SD103CWS saw its battery life extended from 3 days to 4 days.

- Industrial Sensors: In 4-20mA current loops, the SD103CWS’s low voltage drop increased signal transmission distance by 20%, eliminating the need for additional amplification circuits.

- Green Energy: In solar micro-inverters, the SD103CWS helped save over 500 kWh annually, equivalent to a reduction of 260kg in CO2 emissions.

2. Design Tips: Unlocking the Full Potential of SD103CWS

Even with exceptional performance, improper design may lead to underutilization of the SD103CWS. Engineers should adhere to three key principles:

2.1. Parameter Limits: Avoid "Overload" Hazards

The SD103CWS has a reverse voltage tolerance of 20V. If transient high voltages (such as sudden load drops in automotive electronics) may occur, additional TVS diodes should be added for clamping protection. There have been cases where failure to consider this resulted in reverse breakdown after six months of use in batch products.

2.2. Thermal Management: Small Size Still Needs "Breathing Space"

Under continuous 350mA current, the SD103CWS junction temperature could rise to 105°C. Designers should assist heat dissipation through techniques like PCB copper area expansion (recommended ≥30mm²) and adding thermal vias. One LED driver manufacturer optimized their layout, reducing the SD103CWS working temperature by 15°C, extending its lifespan to over 80,000 hours.

2.3. Electrostatic Protection: Details Matter for Reliability

The SD103CWS has an ESD (electrostatic discharge) tolerance of 2000V HBM, but anti-static precautions are still necessary during production and transportation. It's recommended to use anti-static packaging, wear wrist straps, and avoid direct pin contact in dry environments.

3. The Future is Here: How SD103CWS Defines the Next Generation of Electronic Design

With the rise of third-generation semiconductors like SiC (silicon carbide) and GaN (gallium nitride), the SD103CWS is continuously evolving. Slkor has revealed that its next-generation products will feature a thinner barrier layer design, increasing switching frequency to over 50MHz while reducing forward voltage drop further to 0.3V. These improvements will make the SD103CWS even more valuable in high-frequency, high-current applications like 5G base stations and electric vehicle charging modules.

In today's fiercely competitive electronics industry, the SD103CWS proves one thing: true innovation doesn’t lie in chasing extreme parameters, but in keenly understanding real-world needs. It may not offer revolutionary breakthroughs, but through optimizing every 0.1V voltage drop and every microamp of reverse current, it provides the industry with more efficient, reliable solutions.

Choosing the SD103CWS means choosing more than just a diode; it’s about adopting a design philosophy of "changing the world through small improvements." When current flows through this 2.5mm × 1.3mm tiny component, it carries not only energy but also a commitment to the core values of technology.
