DSK16 Schottky Diode: Unlocking the Future of Efficient Electronics with Precision

2025-09-08 17:31:32 144

In today’s world of electronic devices, where smartphones, smart homes, and industrial automation continuously push for “slim, efficient, and low-power” designs, the performance of each component can make or break a product’s market success. As the “gatekeeper of energy flow” in circuits, even the slightest optimization of a Schottky diode's efficiency, speed, and reliability can lead to a significant leap in system-level performance.

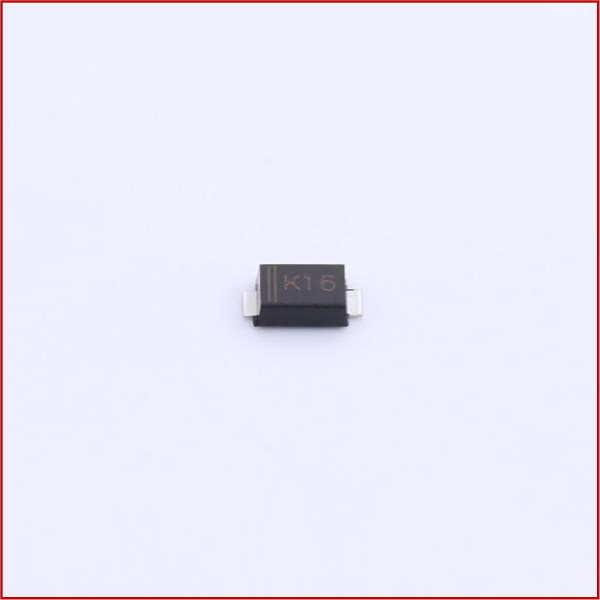

The DSK16 Schottky diode, developed by Slkor, is one such component that defines industry standards with its “precision advantage.” With key parameters like 60V reverse voltage, 1A rectifying current, and an ultra-low 700mV forward voltage drop, it offers an ideal solution for medium-to-low power circuit designs in consumer electronics, industrial control, and new energy fields.

Performance Analysis: Three Core Advantages Addressing Design Pain Points

1. Ultra-Low Forward Voltage drop (Vf = 700mV at 1A): The "Invisible Engine" for Efficiency Boost

Traditional Schottky diodes have a forward voltage drop of over 800mV at 1A current, but the DSK16 optimizes its barrier structure and doping process to reduce this to 700mV. This brings several key benefits:

Reduced Power Consumption by 12.5%: In circuits running continuously (such as power adapters and LED drivers), the DSK16 can save several kilowatt-hours annually (approximately 1.76 kWh when operating at 220V/1A load for 8000 hours).

Significant Heat Reduction: The low power consumption results in lower device temperature rise, allowing for stable operation without the need for additional heat dissipation designs, aiding miniaturization and lightweight designs.

System Efficiency Boost: In battery-powered devices like drones and portable medical instruments, the DSK16’s low loss properties can extend battery life, enhancing user experience.

2. 60V Reverse Voltage (Vr): The "Safety Boundary" for Medium-Low Voltage Applications

The DSK16’s 60V reverse voltage design perfectly matches the voltage requirements of mainstream applications in consumer electronics and industrial control:

Consumer Electronics: Ideal for 24V/48V fast charging, laptop power supplies, etc., protecting against voltage fluctuations that could lead to device breakdown.

Industrial Control: Provides reliable reverse protection in 24V DC systems, like PLCs and sensors, preventing damage from reverse power connections.

New Energy Auxiliary Circuits: In solar micro-inverters and energy storage systems, the DSK16 can handle transient voltage spikes, ensuring system stability.

3. 1mA Reverse Current (Ir@60V): The "Zero Leakage" Promise at Low Temperature Rise

Reverse current is a critical indicator of leakage when the diode is in the off state. The DSK16’s reverse current at 60V is just 1mA, far below the industry average of 2-5mA. This brings two major advantages:

Extremely Low Standby Power: In long-standby applications such as IoT devices and smart meters, the DSK16 significantly reduces static power consumption, prolonging battery life.

Stable Performance in High-Temperature Environments: Since reverse current tends to rise exponentially with temperature, the DSK16 utilizes material innovations to suppress this trend, maintaining low leakage even at 85°C, thus preventing performance degradation due to thermal runaway.

Application Scenarios: From Laboratory to Industrialization as the "All-Rounder"

The DSK16’s “efficient, compact, and reliable” characteristics make it the ideal choice for electronic designs across industries:

1. Consumer Electronics: The "Balancing Act" of Slimness and Long Battery Life

In smartphone and tablet charging circuits, the DSK16 reduces energy loss with its ultra-low forward voltage drop, while its compact package (such as SOD-123) saves PCB space, enabling lighter and slimmer devices. Moreover, in battery-limited applications like TWS earbud charging cases and smartwatches, the DSK16’s low power consumption can significantly extend battery life.

2. Industrial Control: Stable Operation in "Extremes"

Industrial environments are harsh, with significant temperature fluctuations and strong electromagnetic interference. The DSK16’s wide operating temperature range of -40°C to 125°C and high ESD protection capabilities ensure outstanding performance in motor drives, PLC I/O modules, etc. For example, in servo motor control circuits, the DSK16 can quickly respond to PWM signals, reducing switching losses and improving control accuracy.

3. New Energy Auxiliary Circuits: The "Guardian" of Green Energy

In solar micro-inverters, the DSK16 handles rectification and reverse protection, improving power generation efficiency. In energy storage system BMS (Battery Management Systems), the DSK16 monitors battery voltage with its low reverse current, ensuring accurate sampling and preventing false trigger of protection mechanisms.

Design Guidelines: Three Principles to Maximize DSK16’s Potential

To fully leverage the DSK16’s performance advantages, designers should adhere to the following principles:

1. “Safety Margin” Design: Although the DSK16 is rated for 60V/1A, it’s recommended to leave a 20% margin in actual circuits (e.g., working voltage ≤ 48V, current ≤ 0.8A) to account for transient overvoltage/overcurrent conditions.

2. Thermal Management Optimization: In high-power scenarios, increase copper foil area and use thermal pads to reduce junction temperature, ensuring long-term stable operation.

3. Layout to Minimize Parasitic Parameters: Shorten the lead length between the DSK16 and switching elements to reduce parasitic inductance and avoid voltage oscillation under high-frequency switching.

Slkor: Empowering Industrial Innovation Through "Technological Excellence"

As a national high-tech enterprise, Slkor is dedicated to pushing the boundaries of semiconductor performance. The company’s self-developed ultra-low barrier Schottky technology optimizes both forward voltage drop and reverse leakage by precisely controlling the metal-semiconductor interface density. Additionally, its fully automated production lines and automotive-grade quality control system ensure each DSK16 can withstand extreme temperature tests from -55°C to 150°C, as well as 1000-hour high-temperature reverse bias aging tests.

Conclusion: DSK16 — The "Performance Pivot" for High-Efficiency Electronics Design

In an era where “efficiency reigns and user experience is paramount,” the DSK16 Schottky diode is more than just a component; it embodies a “small but mighty” design philosophy. By optimizing parameters down to the millimeter level, it provides crucial support for system-level performance enhancement. Whether advancing next-generation consumer electronics or upgrading industrial automation, the DSK16 will be your most trusted “performance partner.”

Choosing the DSK16 is choosing to stay “one step ahead” in the competitive race!

About Slkor：

SLKOR, headquartered in Shenzhen, China, is a rapidly emerging national high-tech enterprise in the power semiconductor sector. With R&D centers in Beijing and Suzhou, its core technical team originates from Tsinghua University. As an innovator in silicon carbide (SiC) power device technology, SLKOR's products are widely used in new energy vehicles, photovoltaic power generation, industrial IoT, and consumer electronics, providing critical semiconductor solutions to over 10,000 clients globally. The company delivers more than 2 billion units annually, with its SiC MOSFETs and 5th-generation ultrafast recovery SBD diodes setting industry benchmarks in efficiency ratio and thermal stability. SLKOR holds over 100 invention patents and offers 2,000+ product models, continually expanding its IP portfolio across power devices, sensors, and power management ICs. Certifications including ISO 9001, EU RoHS/REACH, and CP65 compliance demonstrate the company's steadfast commitment to technological innovation, lean manufacturing, and sustainable development.
