<span style="font-family: arial, helvetica, sans-serif; font-size: 16px;">Everything about Darlington Transistor</span>

Darlington transistors are crucial components in electronic circuits, renowned for their unique amplification capabilities. This article provides an in-depth exploration of the Darlington transistor, covering its characteristics, parameters, applications, and development history. Tailored for procurement and engineering teams, this guide aims to enhance your understanding of Darlington transistors and their role in consumer electronics.

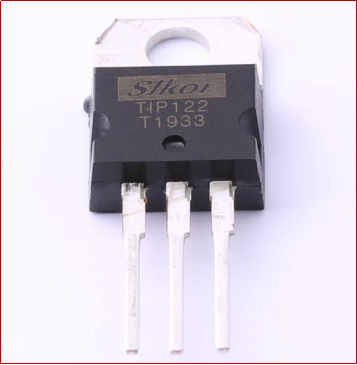

SLKOR TIP122 NPN Darlington Power Transistors TO-220

What is a Darlington Transistor?

A Darlington transistor is a type of semiconductor device designed to provide high current gain by combining two transistors in a single package. This configuration allows for exceptional amplification capabilities, making it suitable for various applications in electronic circuits. The Darlington transistor works by stacking two transistors in a way that the output of the first transistor drives the base of the second transistor, resulting in a compounded gain effect.

The Development History of Darlington Transistors

The Darlington transistor was invented by Sidney Darlington in 1953. This invention revolutionized the field of electronic amplification by offering a highly effective way to achieve high current gain. Initially, the technology was implemented in analog circuits, but its versatility soon led to widespread use in various electronic devices. Over the decades, advancements in semiconductor technology have improved the efficiency and reliability of Darlington transistors, making them integral to modern electronics.

Characteristics of Darlington Transistors

Darlington transistors are distinguished by several key characteristics that make them valuable in electronic circuits:

High Current Gain: The most notable feature of a Darlington transistor is its high current gain, often exceeding that of a single transistor.
Increased Input Impedance: This transistor configuration offers higher input impedance, which reduces the load on preceding stages in the circuit.
Low Saturation Voltage: Darlington transistors typically exhibit a low saturation voltage, contributing to their efficiency in switching applications.

Parameters of Darlington Transistors

When selecting a Darlington transistor, several parameters must be considered:

Current Gain (β): This is a measure of how much the transistor amplifies the input signal. Darlington transistors offer significantly higher gain compared to standard transistors.
Collector-Emitter Saturation Voltage (V_CE(sat)): This parameter indicates the voltage drop across the transistor when it is fully on. Lower saturation voltage improves efficiency.
Power Dissipation: This measures the maximum power the transistor can dissipate without damage. Adequate heat management is crucial to prevent overheating.

Roles of Darlington Transistors in Electronic Circuits

Darlington transistors play several important roles in electronic circuits:

Amplification: They are used in audio and radio frequency amplifiers to enhance signal strength.
Switching: Due to their high current gain, Darlington transistors are effective as electronic switches in various applications.
Signal Conditioning: They help in conditioning signals to ensure proper functionality of electronic systems.

Applications of Darlington Transistors

The versatility of Darlington transistors makes them suitable for numerous applications:

Consumer Electronics: Used in devices like amplifiers, power supplies, and audio equipment.
Industrial Equipment: Employed in control circuits and motor drives due to their high gain and switching capabilities.
Automotive Systems: Utilized in various automotive electronic systems, including lighting and engine control modules.

Manufacturers of Darlington Transistors

Several leading companies are renowned for their production of high-quality Darlington transistors:

Texas Instruments: Known for a wide range of Darlington transistors with reliable performance.
STMicroelectronics: Offers advanced Darlington transistors with various specifications to meet diverse needs.
ON Semiconductor: Provides a variety of Darlington transistors tailored for different applications and industries.

For more detailed information about Darlington transistors, you can visit Texas Instruments.
