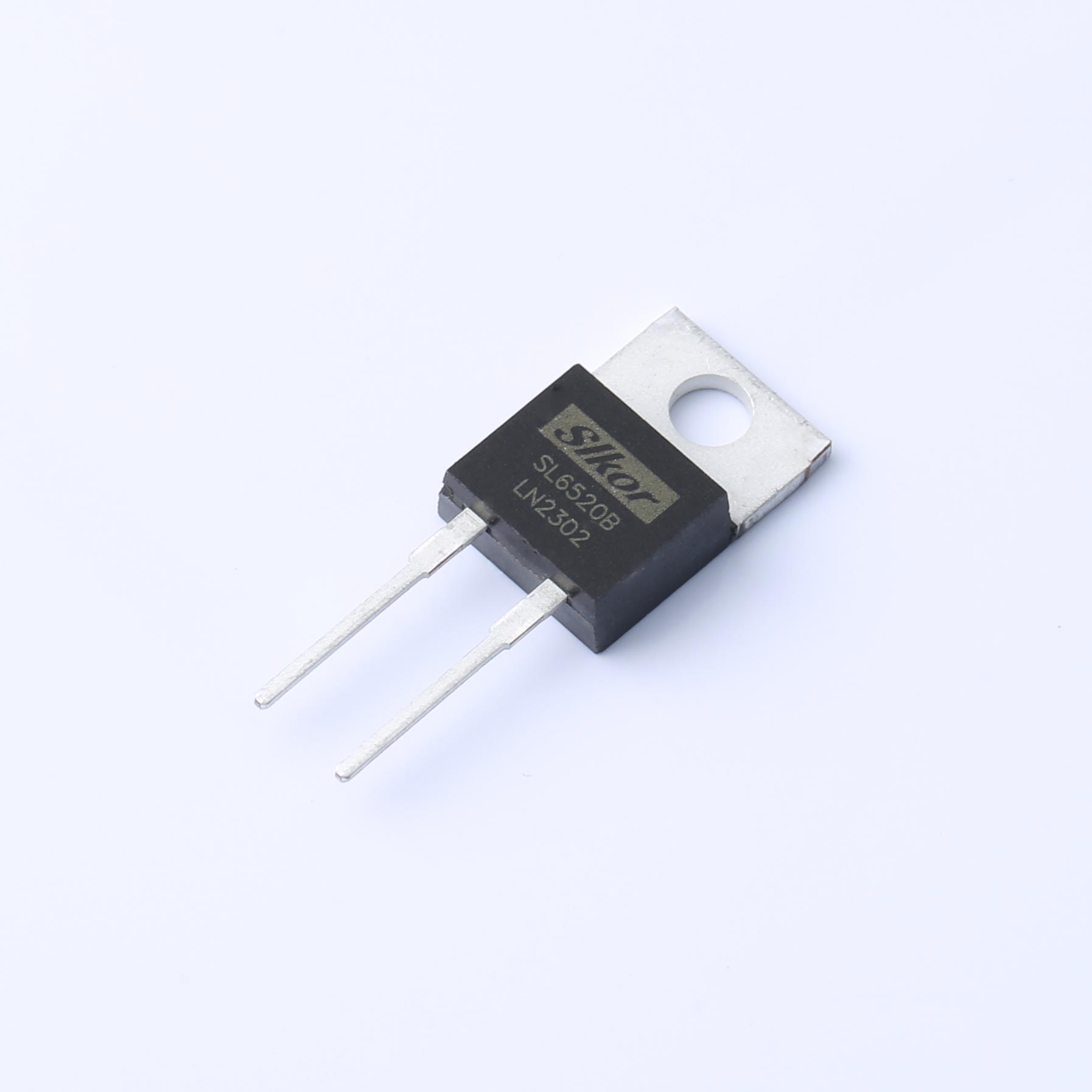

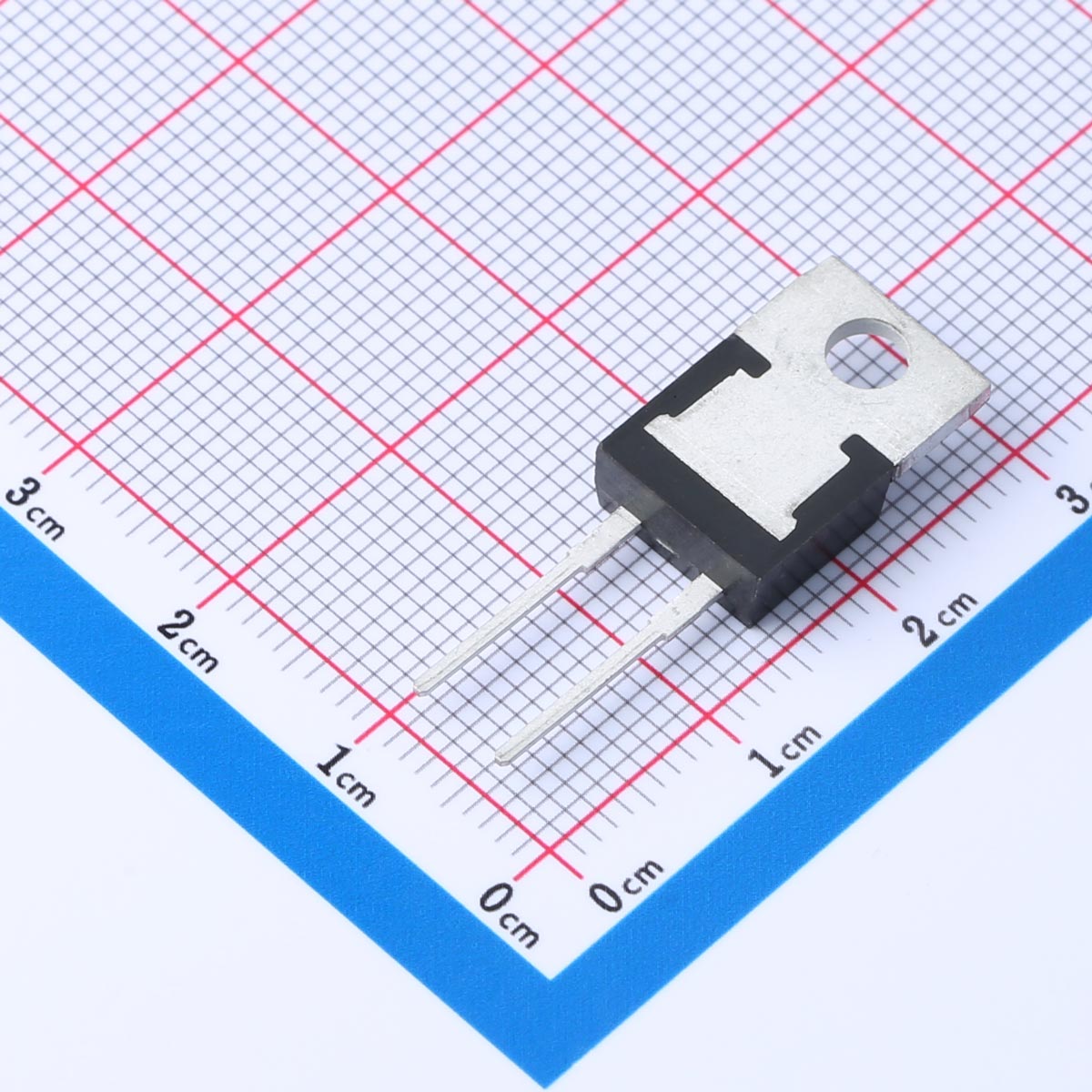

SL6520B Schottky Barrier Diodes TO-220-2
Download datasheet Inquiry
| VRRM | 650V |
| IF | 20A(Tc=154℃) |
| Qc | 62nC |
? High surge currentcapability
? Noreverse recovery
? Positive Temperature Coefficient
? Easy to paralleling
? Halogen-free /RoHS compliant
Applications
? Solar inverter
? Power factor correction
? Data Center
? Switch mode power supply
Benifits
? High-speed switching
? Low heat dissipation requirements
? Reduce size and cost of the system
? High-reliability
? System efficiency improvement
| File Name | Title | Description |
|---|---|---|

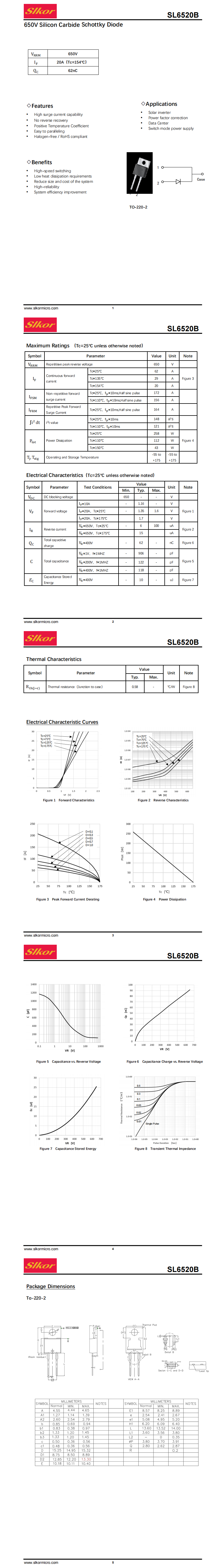

| SL6520B TO-220-2.pdf | SL6520B TO-220-2 | - |
