The series of detector diode can be packed in many fomms to meet demands in different application scenes.We should ensure that when two diodes are installed in one surface packaging, they are taken out from adjacent positions of the same wafer, to ensure high matching degree on performance.

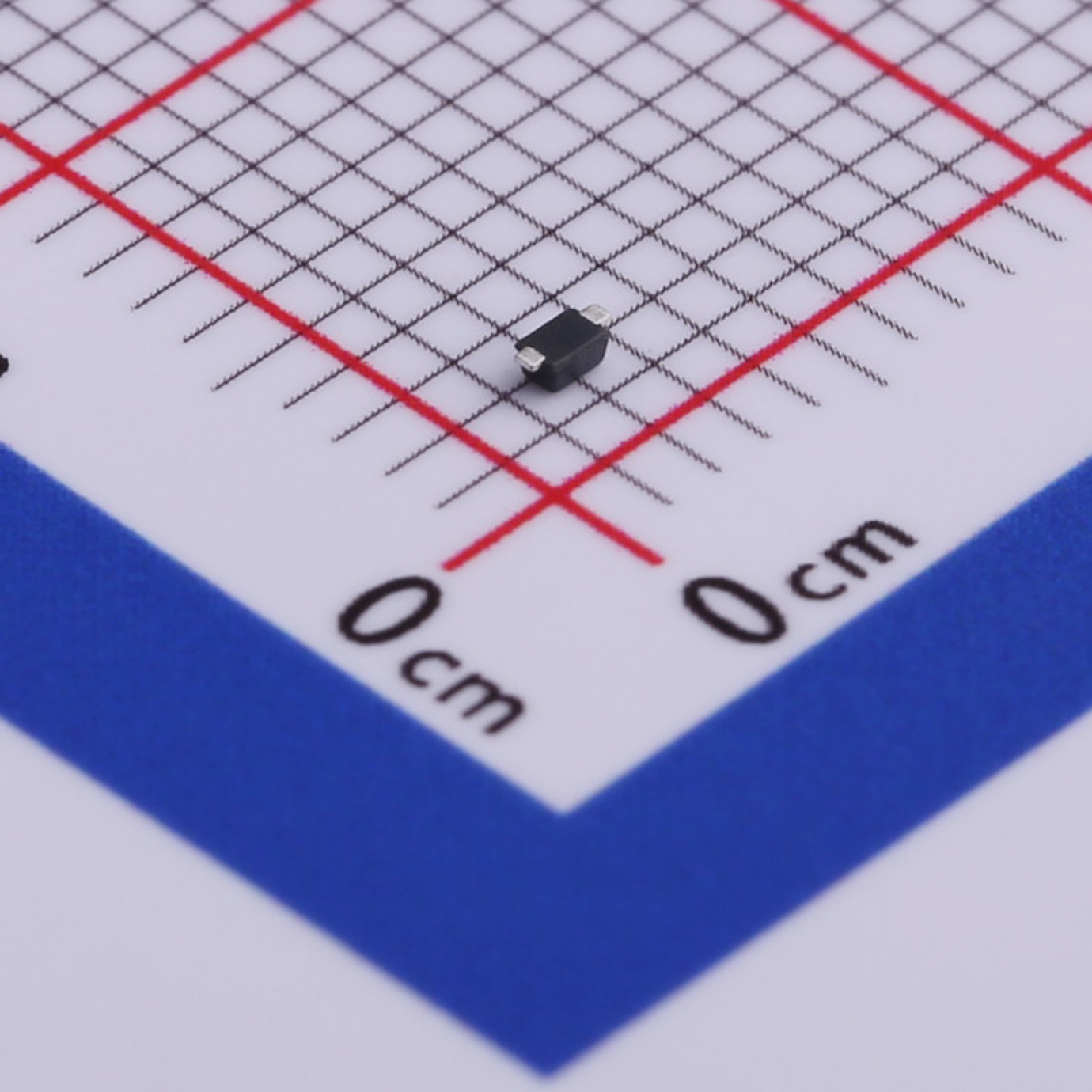

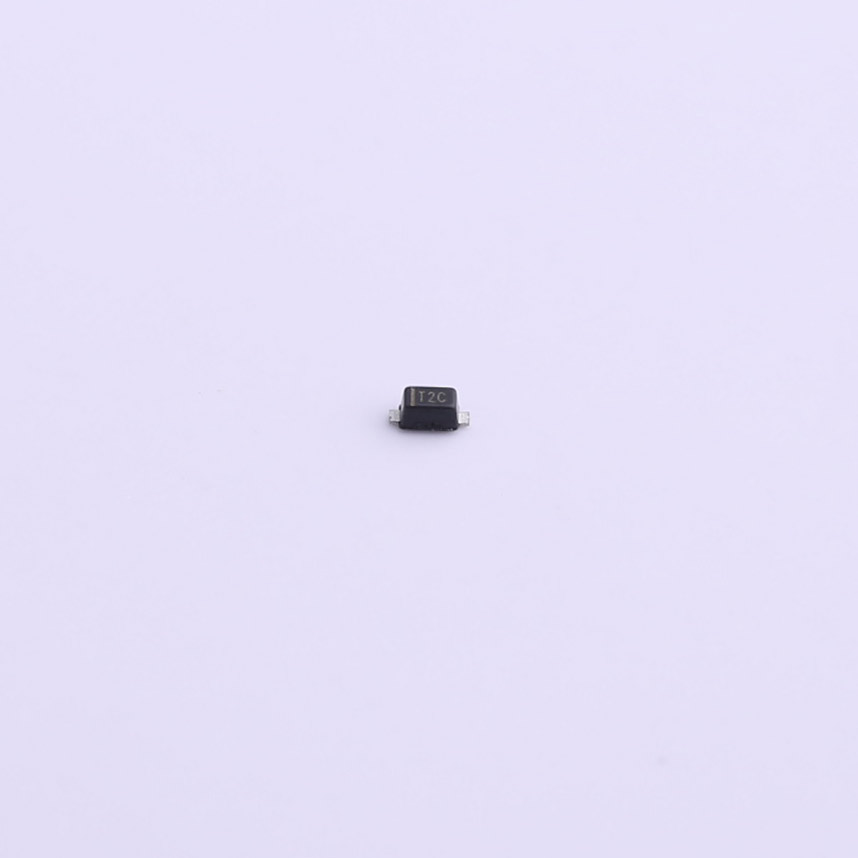

Download datasheet InquirySurface Mount Low Barrier Schottky Diode
Descriptions
The series of detector diode can be packed in many fomms to meet demands in different application scenes.We should ensure that when two diodes are installed in one surface packaging, they are taken out from adjacent positions of the same wafer, to ensure high matching degree on performance.
Characteristics
Multiple packaging forms for SOT-23 and SOD523
High detection sensitivity (36 m V/uW)
Can be made as the banding and the scrolling packaging forms
Dual-diode packaging for high matching degree
Better thermal conductivity for high power dissipation
Lead free
| File Name | Title | Description |
|---|---|---|

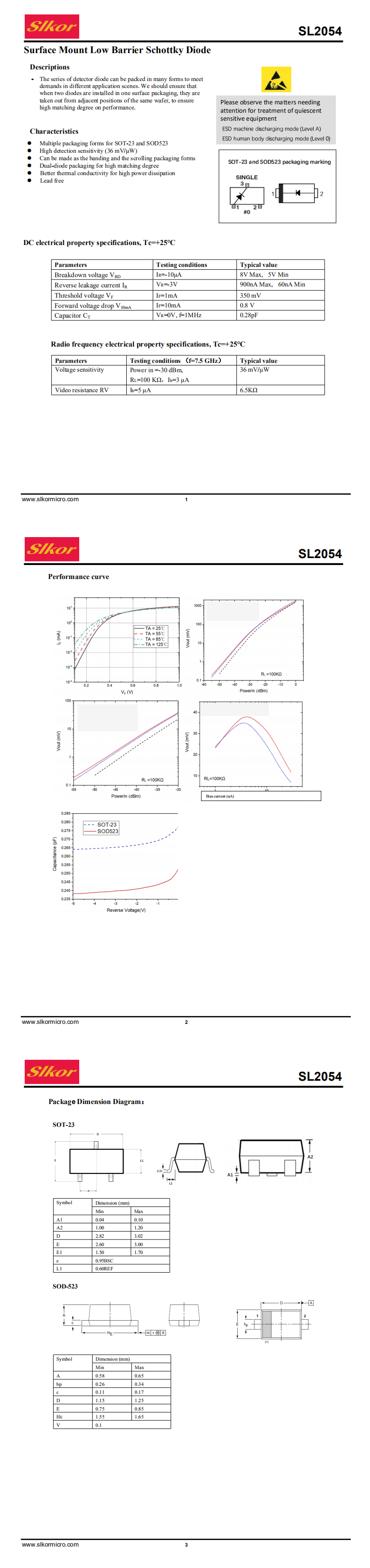

| SL2054.pdf | SL2054 | - |
