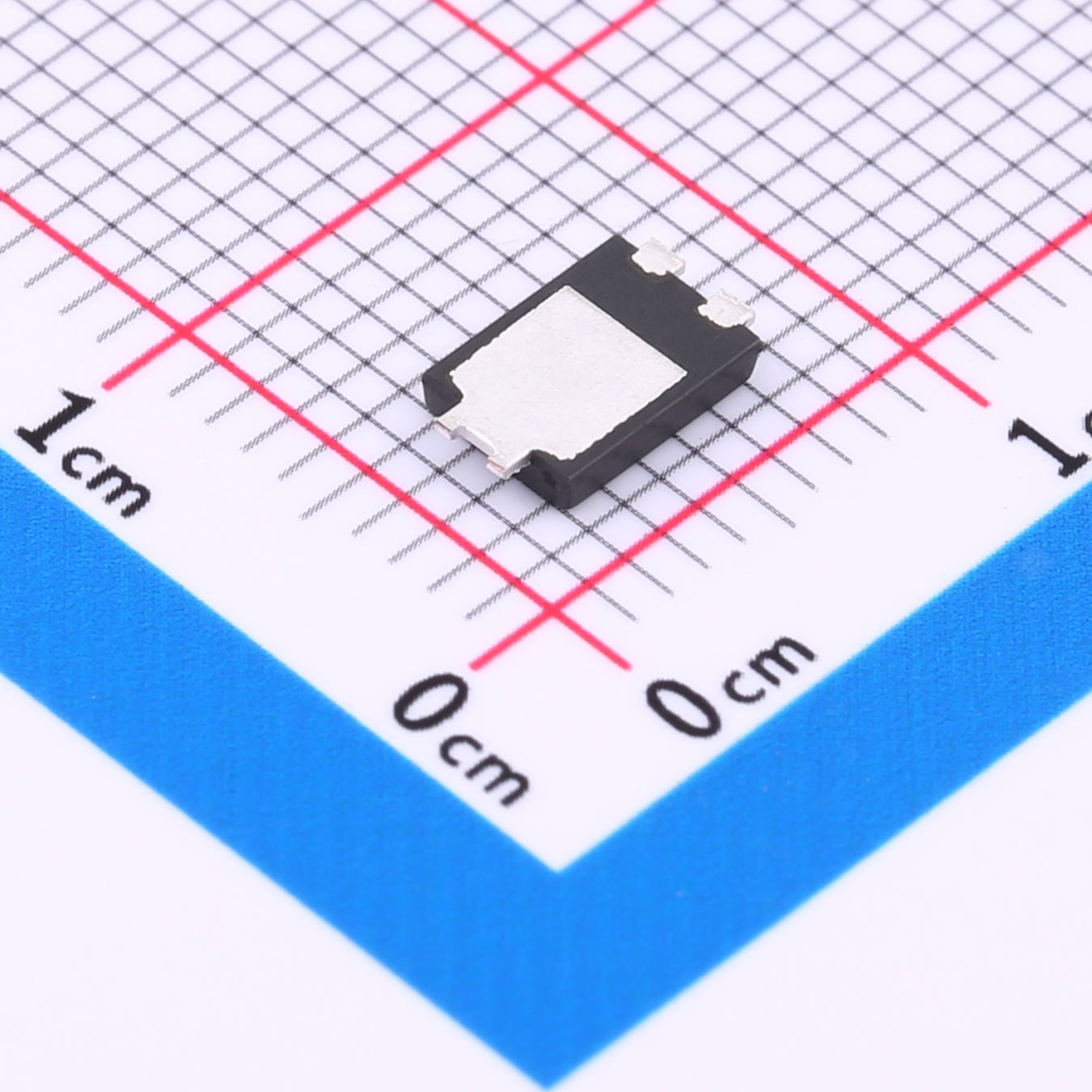

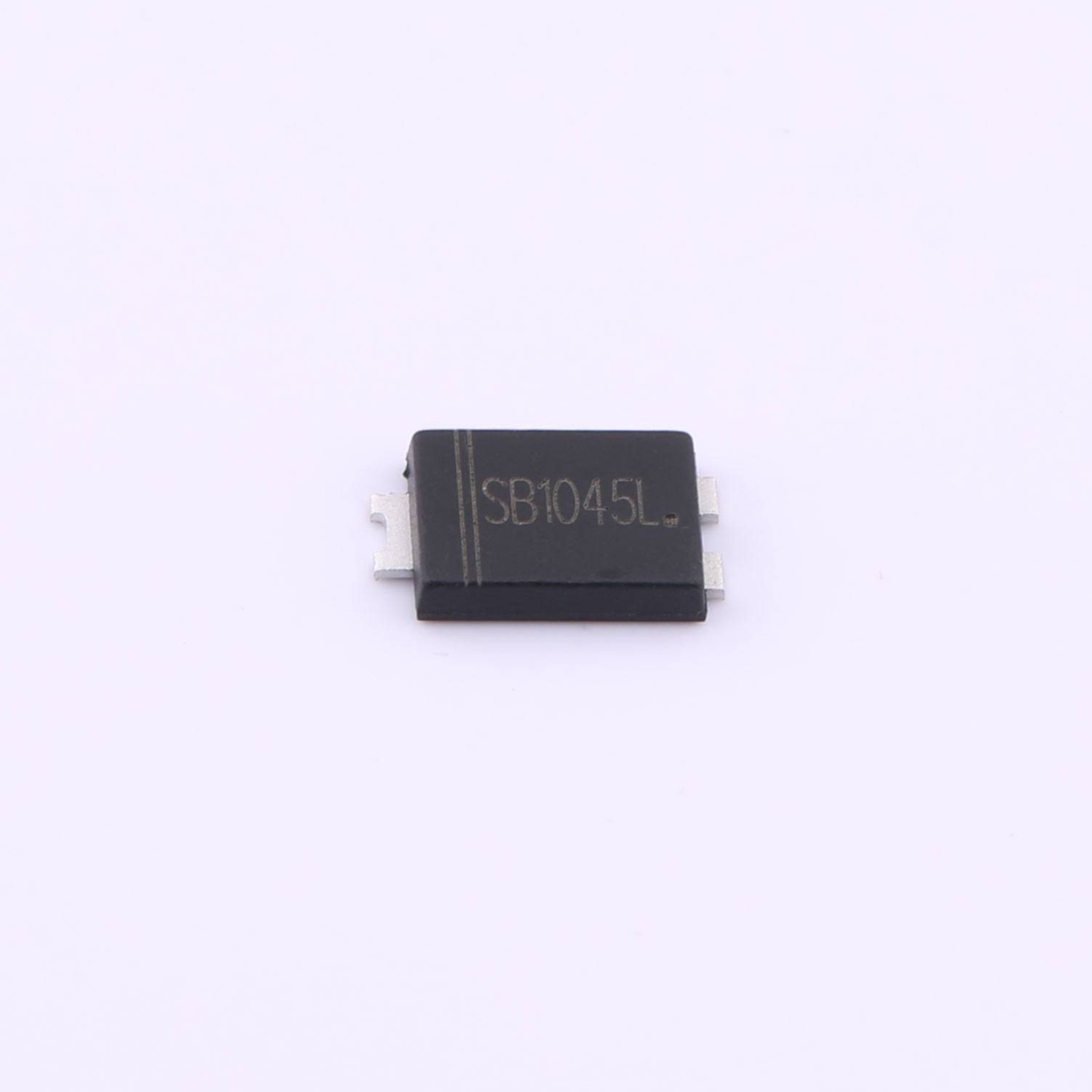

SB1045L Schottky Barrier Diodes TO-277
Download datasheet Inquiry
Features
? Low forward voltage drop.
? Excellent high temperature stability.
? Fast switching capability.
? Suffix "G" indicates Halogen-free part, ex.CP10S45SG.
? Lead-free parts meet environmental standards of MIL-STD-19500 /228
Mechanical Data
? Epoxy : UL94-V0 rated flame retardant.
? Case : Molded plastic, TO-277.
? Lead : Solder plated, solderable per MIL-STD-750, Method 2026.
? Polarity: Indicated by cathode band.
? Mounting Position : Any.
? Weight :Approximated 0.093 grams.
| File Name | Title | Description |
|---|---|---|

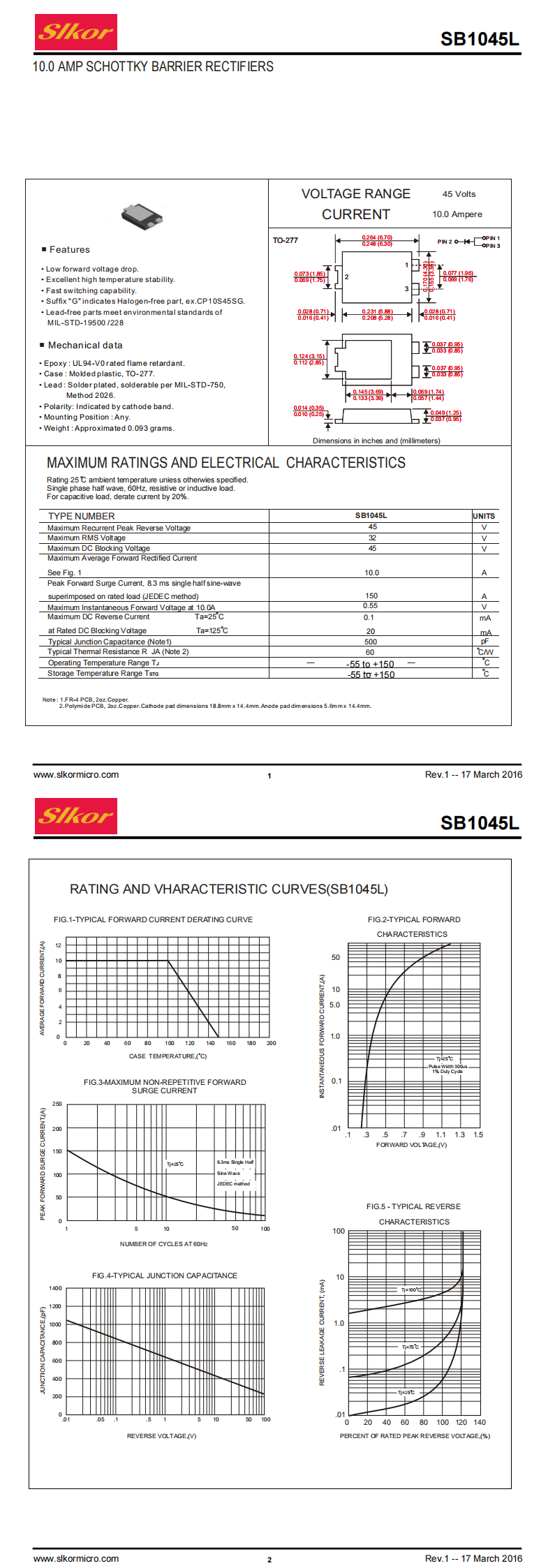

| SB1045L TO-277.pdf | SB1045L TO-277 | - |
