SURFACE MOUNT SCHOTTKY BARRIER DIODES


VOLTAGE RANGE: 20-200V

CURRENT: 1.0 A


Features

The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

Metal silicon junction, majority carrier conduction

Low power loss, high efficiency

High forward surge current capability

High temperature soldering guaranteed: 250C/10 seconds, 0.375(9.5mm) lead length, 5 Ibs.(2.3kg) tension


Mechanical Data

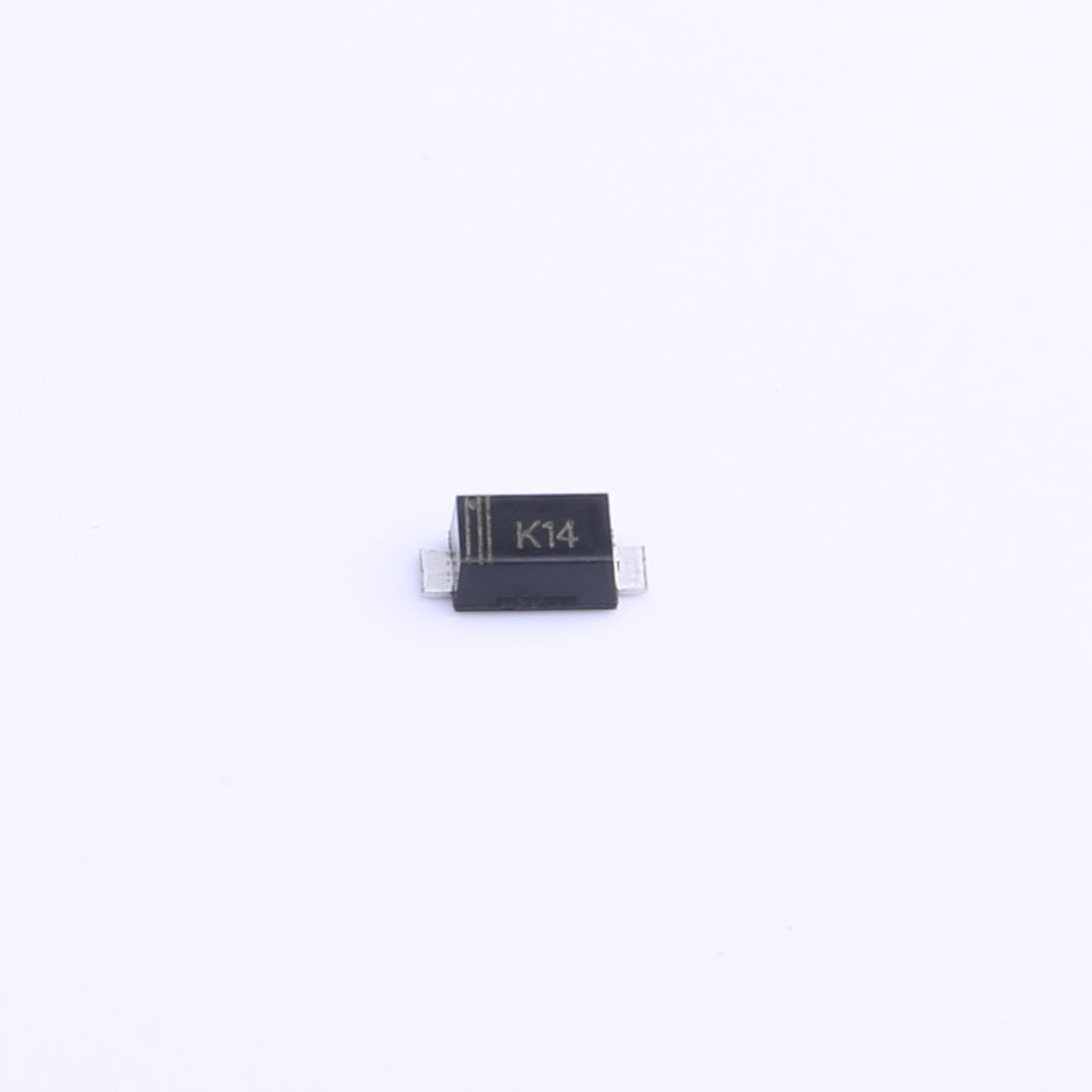

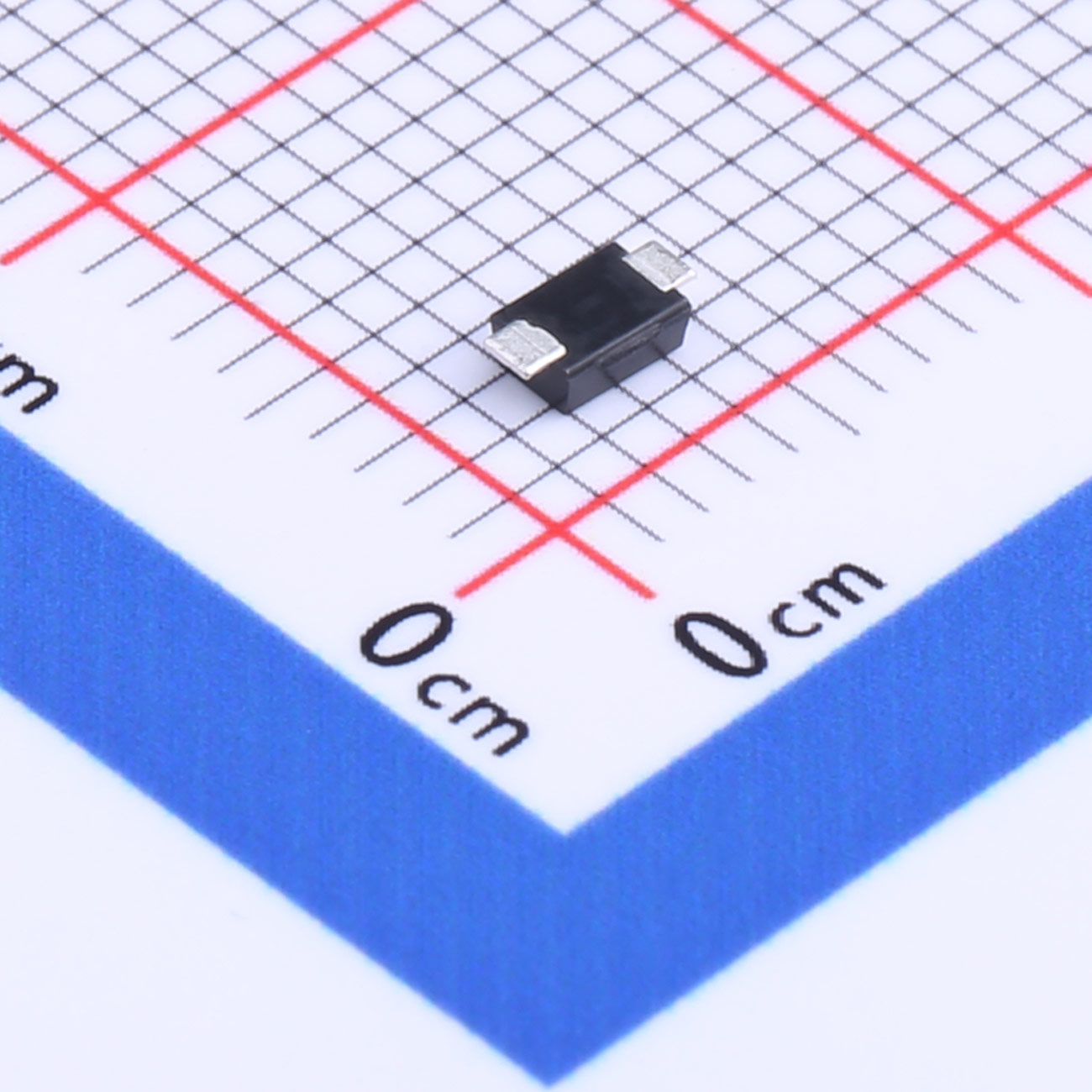

Case: SOD-123Fl plastic body over passivated junction

Terminals: Plated axial leads, solderable per MIL-STD-750.Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight: 0.0007 ounce, 0.02 grams
