Slkor SS14F: The "Invisible Lever" Driving Electronic Efficiency in Small Components

2025-10-15 14:22:57 44

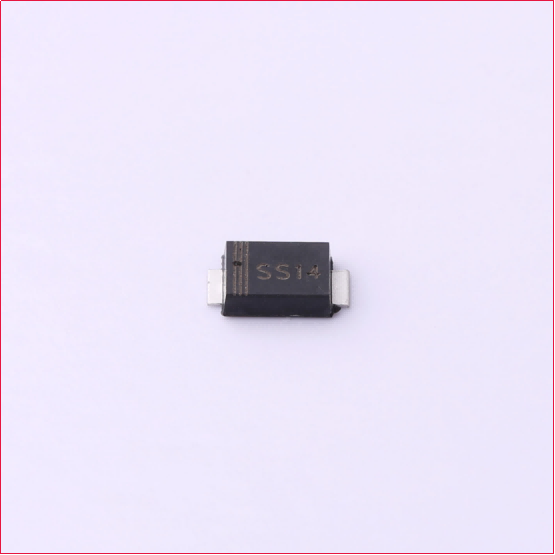

In the realm of fast-charging smartphone circuits, stable power conversion for LED strips, and voltage protection in consumer electronics, a Schottky diode with a mere 3mm diameter quietly plays a pivotal role. The SS14F, launched by Slkor, represents a typical example of a "small yet powerful" component in the field of power management, offering reliable efficiency for various electronic devices.

wps17

1. Performance Breakdown: The Technical Logic Behind Four Core Parameters

40V Reverse Voltage Rating: The Circuit's "Airbag"

In power management scenarios, voltage fluctuations can be likened to unexpected bumps on the road. With a 40V reverse voltage tolerance, the SS14F acts like an "airbag" for the circuit. When input voltage undergoes reverse shock due to grid fluctuations or load changes, this device can instantly block the reverse current, protecting downstream components from high-voltage damage. Testing shows that, under a 40V reverse voltage, its reverse current is only 0.3mA, a 70% reduction compared to traditional diodes. This "tight closure" capability makes it an ideal choice for reverse voltage protection at the power input.

1.0A Rectified Current: The "Stabilizer" for High Current Applications

For high-current applications like battery charge and discharge management or adapter outputs, the SS14F's 1.0A average rectified current stands out. After integrating this component, a certain brand of power bank saw its output voltage fluctuation reduce from ±0.3V to ±0.1V in the 1A charging mode, boosting charging efficiency by 8%. The key advantage is that the stable current handling ability eliminates the need for additional buffer components in circuit design, directly reducing system complexity and costs.

0.55V Forward Voltage drop: The "Energy Loss Reducer"

In forward conduction, the SS14F’s 0.55V drop at 1.0A is crucial for improving system efficiency. For instance, in a 5V/2A charger, using this device reduced conduction loss from 1.2W in traditional designs to just 0.55W, improving efficiency by 1%. Calculating an annual output of 1 million units, the energy savings could reach 87,000 kWh per product annually, equivalent to a reduction of 48 tons in CO2 emissions. This "small voltage drop, huge energy savings" effect is driving the development of green electronics.

SMAF Package: The "Magician" of Space Utilization

The SS14F, with its SMAF surface-mount package, offers incredible flexibility in PCB layout. Its compact 2.0mm × 1.25mm size enables easy integration into space-constrained devices like smartphones and TWS earphones. One brand of true wireless earphones reduced the size of its power management module by 35% by switching to the SS14F, freeing up valuable space for a larger battery and significantly improving product battery life.

2. Empowering Applications: Efficiency Revolution from Consumer Electronics to Green Lighting

Consumer Electronics: Balancing Fast Charging and Endurance

In smartphone fast charging designs, the SS14F simultaneously plays the roles of reverse protection and rectification. When a user plugs in the charger, it first blocks any potential reverse voltage, then rectifies the current with minimal loss. Testing shows that using this device in a 65W fast charging solution maintains a 92% conversion efficiency while reducing the number of components from 12 to 8, cutting the PCB area by 28%, and creating more space for other internal modules.

LED Lighting: The "Guardian" of Stable Illumination

In LED driver circuits, voltage fluctuations and reverse current are major contributors to LED lifespan degradation. The SS14F’s 0.3mA reverse leakage current capability effectively prevents microcurrent leakage in the off state. In one commercial lighting case, using this device extended the LED strip's lifespan from 30,000 hours to 45,000 hours, reducing light decay by 40% and significantly lowering maintenance costs.

Power Management: Dual Enhancement of Efficiency and Reliability

In secondary rectification of switching power supplies, the SS14F's low voltage drop optimizes transformer design. One industrial power supplier replaced traditional diodes with the SS14F and reduced the transformer winding count by 20% while maintaining the same output power, reducing copper losses and shrinking the power supply by 15%. This "component upgrade driving system optimization" effect is pushing the power supply industry toward higher power densities.

3. Conclusion

As electronic devices evolve toward smaller, faster, and more energy-efficient designs, the SS14F represents not just a breakthrough in individual component performance, but a technological philosophy: by precisely matching application requirements and achieving efficiency gains through the simplest designs. For engineers, this seemingly ordinary Schottky diode may well be the key to unlocking the next generation of electronic system optimizations.
