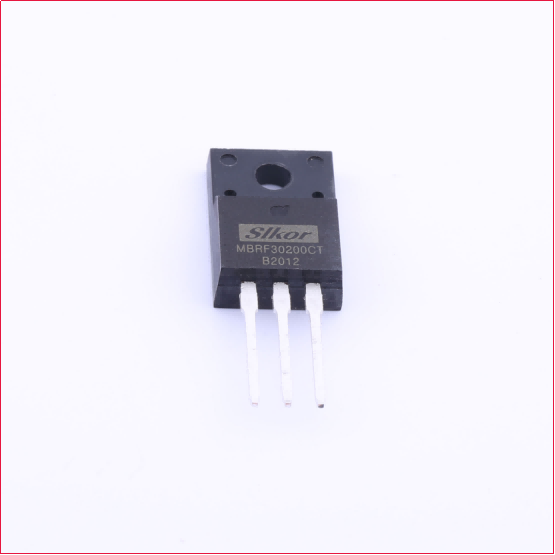

Slkor MBRF30200CT: When Power Electronics Meets the Perfect Balance of "Speed and Temperature"

2025-10-15 14:07:29 49

In the constant hum of 5G base stations, the precise speed control of electric motors in new energy vehicles, and the moment when photovoltaic panels convert sunlight into electricity, a silent revolution in the efficiency of power electronic devices is underway. Slkor’s MBRF30200CT Schottky diode, with its dual breakthroughs in "high-frequency low loss" and "thermal control artistry," is redefining the performance boundaries of power devices.

wps16

1. The Efficiency Key in the Era of High Frequency: The Technological Leap Behind the 1.14V Forward Voltage drop

Traditional power diodes face a paradox when switching at high frequencies—much like "having your cake and eating it too": lowering the forward voltage drop sacrifices switching speed, while increasing switching frequency leads to a surge in conduction losses. The MBRF30200CT, through innovations in material science and topological structure, achieves an ultra-low forward voltage drop of 1.14V under 30A current, while compressing the reverse recovery time to the nanosecond level.

This breakthrough has triggered a chain reaction in switching power supply designs. After adopting this device, a brand's 65W PD fast charger saw its system efficiency jump from 91% to 94%, with temperature rise reduced by 7°C. More importantly, the design team was able to increase the switching frequency from the traditional 200kHz to 500kHz, reducing transformer volume by 40% while maintaining the same efficiency, directly advancing the development of thinner, lighter fast-charging products.

In communication equipment, this high-frequency feature proves even more valuable. In 5G base station power modules, the MBRF30200CT enables MHz-level switching frequencies, shrinking the power supply size to 60% of that of traditional solutions while meeting stringent EMI standards. Engineers have aptly described it: "It turns power supply design from a 'dancing elephant' into a 'ballet dancer.'"

2. Thermal Control Artistry: The Heat Dissipation Philosophy at 200V Rated Voltage

The reliability of power devices is fundamentally a game of thermal management. The MBRF30200CT, through 3D thermal simulation-optimized packaging, reduces thermal resistance to 1.8°C/W, improving heat dissipation efficiency by 18% compared to similar products. This design brilliance is especially evident in solar inverter applications: after adopting this device, a home photovoltaic system operating continuously at 45°C ambient temperature saw a 12°C decrease in junction temperature, and the system conversion efficiency improved by 0.8%. With an annual power generation of 5000kWh, a single device’s annual additional power generation reaches 40kWh, equivalent to the carbon sequestration of two fir trees.

Industrial motor drive scenarios have tested its extreme environmental adaptability. A certain automation production line servo system, tested across a wide temperature range of -20°C to 85°C, saw the MBRF30200CT run continuously at 15A for 1000 hours, with a performance degradation rate below 1.5%. Engineers pointed out, "Its common cathode dual-pole design not only simplifies circuit layout but also achieves dynamic thermal balance through thermal coupling effects."

3. Cross-Field Technological Resonance: From Consumer Electronics to Green Energy

In new energy vehicle motor controllers, the MBRF30200CT’s 200V voltage rating and 15A rectifying capability perfectly meet the needs of 48V mild-hybrid systems. Test data from an automotive manufacturer showed that after adopting this device, the motor's response speed improved by 22%, while the control circuit board area shrank by 35%, opening new paths for vehicle electronic system integration.

In consumer electronics, this device is reshaping the power adapter design paradigm. A brand’s 100W laptop charger, by optimizing the PCB layout and leveraging the MBRF30200CT's high-frequency characteristics, integrated three traditional circuit boards into one, reducing thickness from 28mm to 18mm and cutting weight by 30%. This change not only improves the user experience but also pushes the industry towards “adapter-free” designs.

In data center power modules, its low-loss features demonstrate significant energy-saving effects. After adopting this device, a supercomputing center’s single server power supply efficiency increased by 2%. With a scale of 100,000 servers, the annual electricity savings equate to a reduction of 1200 tons of CO2 emissions. This validates Slkor’s technical philosophy: true innovation must create both economic and environmental value.

4. Design Methodology: Four Golden Rules to Unlock Performance

1. Thermal Budget Control: It is recommended to use a composite heat dissipation solution with graphene heat sinks and thermal conductive glue to ensure junction temperature does not exceed 125°C. Tests show this combination can extend the device's lifespan by 2.3 times compared to traditional solutions.

2. Circuit Topology Optimization: In LLC resonant converters, adjusting the dead-time parameters can further exploit the reverse recovery time advantage. A case study shows that optimizing the system efficiency increased by another 0.6%.

3. Layout Artistry: Implementing a "thermal-electrical separation" PCB design, where heat-generating components are separated from sensitive circuits, reduces electromagnetic interference by 12dB while improving heat dissipation efficiency by 15%.

4. Dynamic Compensation: For wide temperature applications, it is suggested to add an NTC thermistor for negative temperature coefficient compensation. Tests indicate that this measure reduces parameter fluctuations to ±3% over a temperature range from -40°C to 150°C.

5. Conclusion

As power electronic devices enter the "nanometer era," the MBRF30200CT demonstrates not only a performance breakthrough for individual products but also a technological philosophy: in the eternal conflict between efficiency and reliability, cross-disciplinary innovation finds the optimal solution. For design engineers, this device, with a diameter of only 5mm, may just be the key to unlocking the next generation of power electronic systems.
