The 6N135/ 6N136 consists of a high efficient AlGaAs Light Emitting Diode and a high speed optical detector. This design provides excellent AC and DC isolation between the input and output sides of the Optocoupler.Connection for the bias of the photodiode improves the speed that of a conventional phototransistor coupler by reducing the base-collector capacitances.
The internal shield ensureshigh common mode transient immunity. A guaranteed common mode transient immunityis up to 1KV
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Slkor alternative equivalents to ISOCOM.
| ISOCOM | Slkor Replacements | ||
| Part Number | Part Number | Product Category | Package |

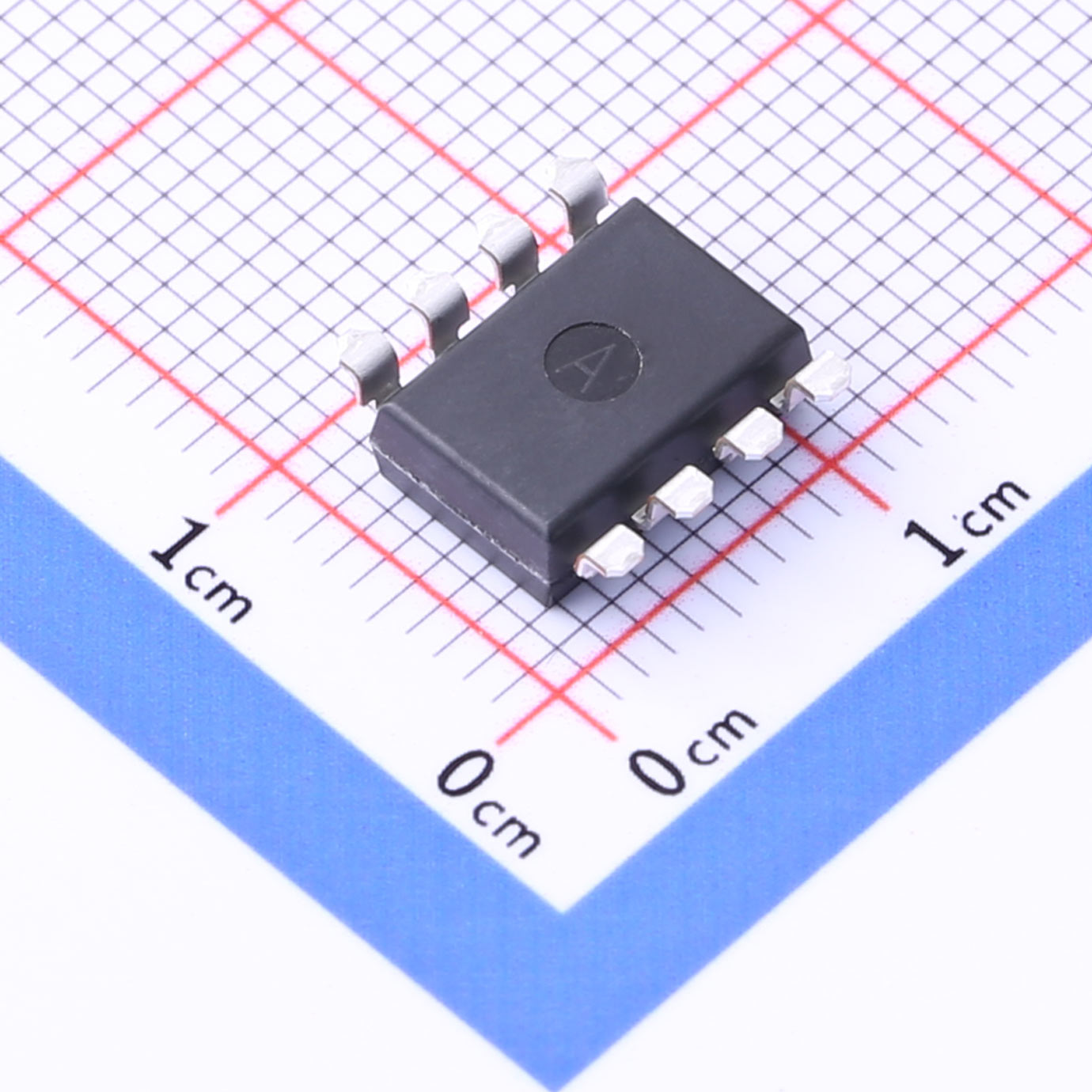

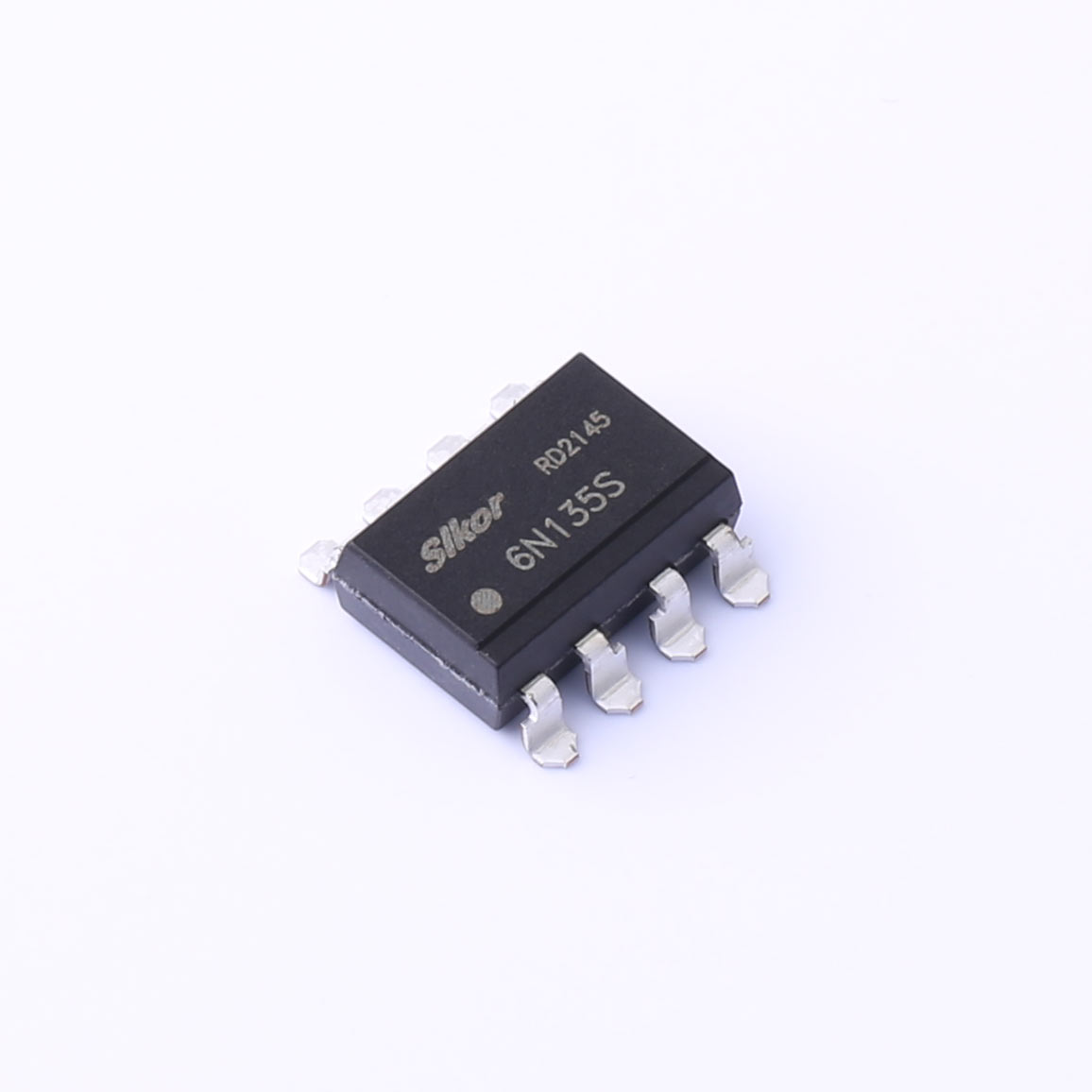

| 6N135SM | 6N135S | Optocoupler | SMD-8 |
| ICPLM611 | SLM611 | Optocoupler | SMD-5 |
| IS3H7C | SL3H7C | Optocoupler | SOP-4 |
1Mbit/s High Speed Transistor Photo Coupler
Description
The 6N135/ 6N136 consists of a high efficient AlGaAs Light Emitting Diode and a high speed optical detector. This design provides excellent AC and DC isolation between the input and output sides of the Optocoupler.Connection for the bias of the photodiode improves the speed that of a conventional phototransistor coupler by reducing the base-collector capacitances.
The internal shield ensureshigh common mode transient immunity. A guaranteed common mode transient immunityis up to 1KV
Features
● High speed – 1MBd typical
● Highisolation voltage between input and output (Viso=5000 Vrms )
● Operating temperature range - 55 °C to 100 °C
● Guaranteed performance from 0°C to 70°C
Applications
●Line receivers
●Telecommunication equipment
●Out interface to CMOS-LSTTL-TTL
●Wide bandwidth analog coupling
●Pulse transformer replacement
| File Name | Title | Description |
|---|---|---|
| 6N136 DIP-8.pdf | 6N136 DIP-8 | - |
