LMV321 is a low-power consumption system with good performance and economy. It has high unit gain frequency and the designated conversion rate of 0.4V/μs, and the quiescent current is only 430 μA / amplifier (5V). The input common-mode scope includes grounding; for this reason, the device can work in both single power supply applications and dual power supply applications. In addition, the device can drive large capacitive loads comfortably.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Function description
LMV321 is a low-power consumption system with good performance and economy. It has high unit gain frequency and the designated conversion rate of 0.4V/μs, and the quiescent current is only 430 μA / amplifier (5V). The input common-mode scope includes grounding; for this reason, the device can work in both single power supply applications and dual power supply applications. In addition, the device can drive large capacitive loads comfortably.

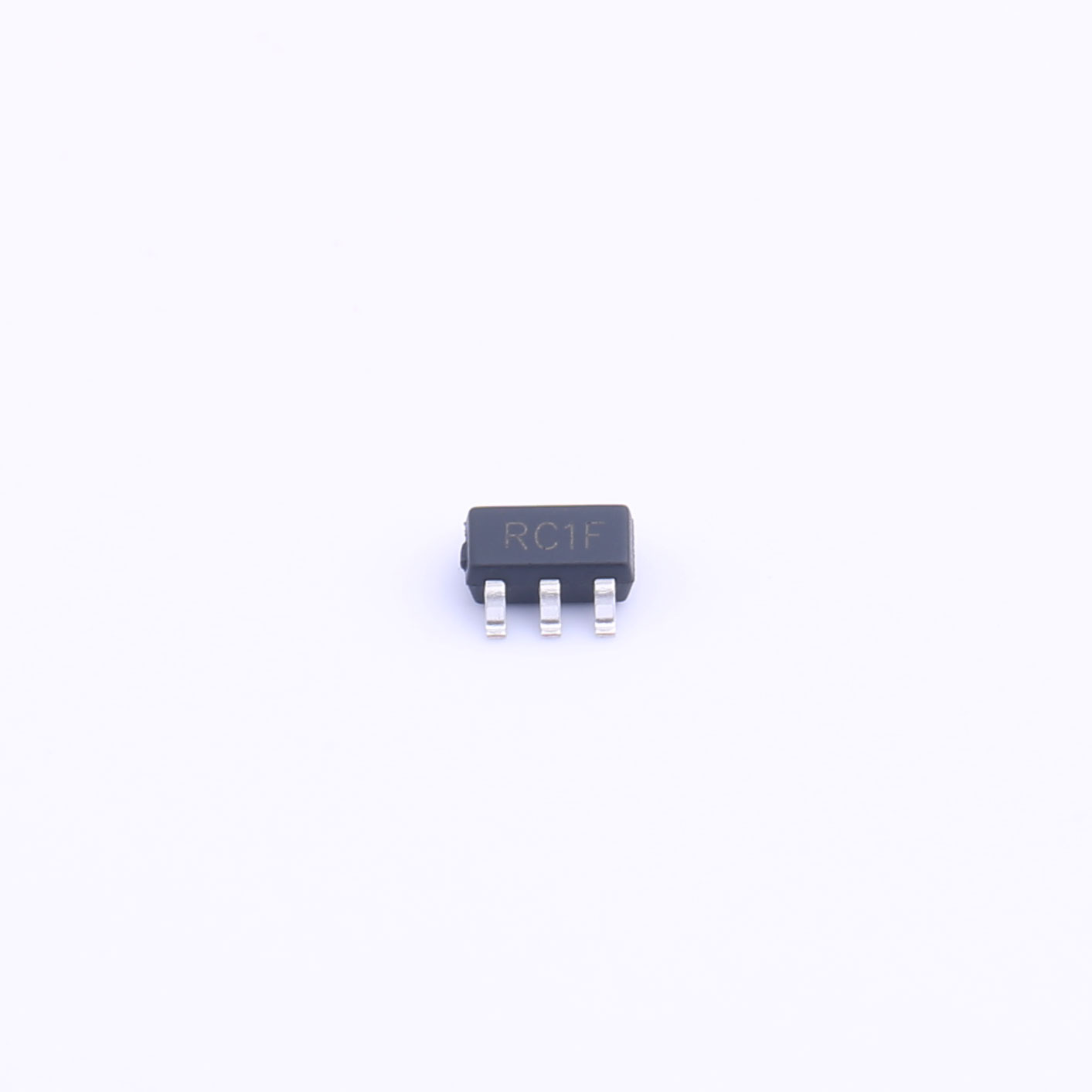

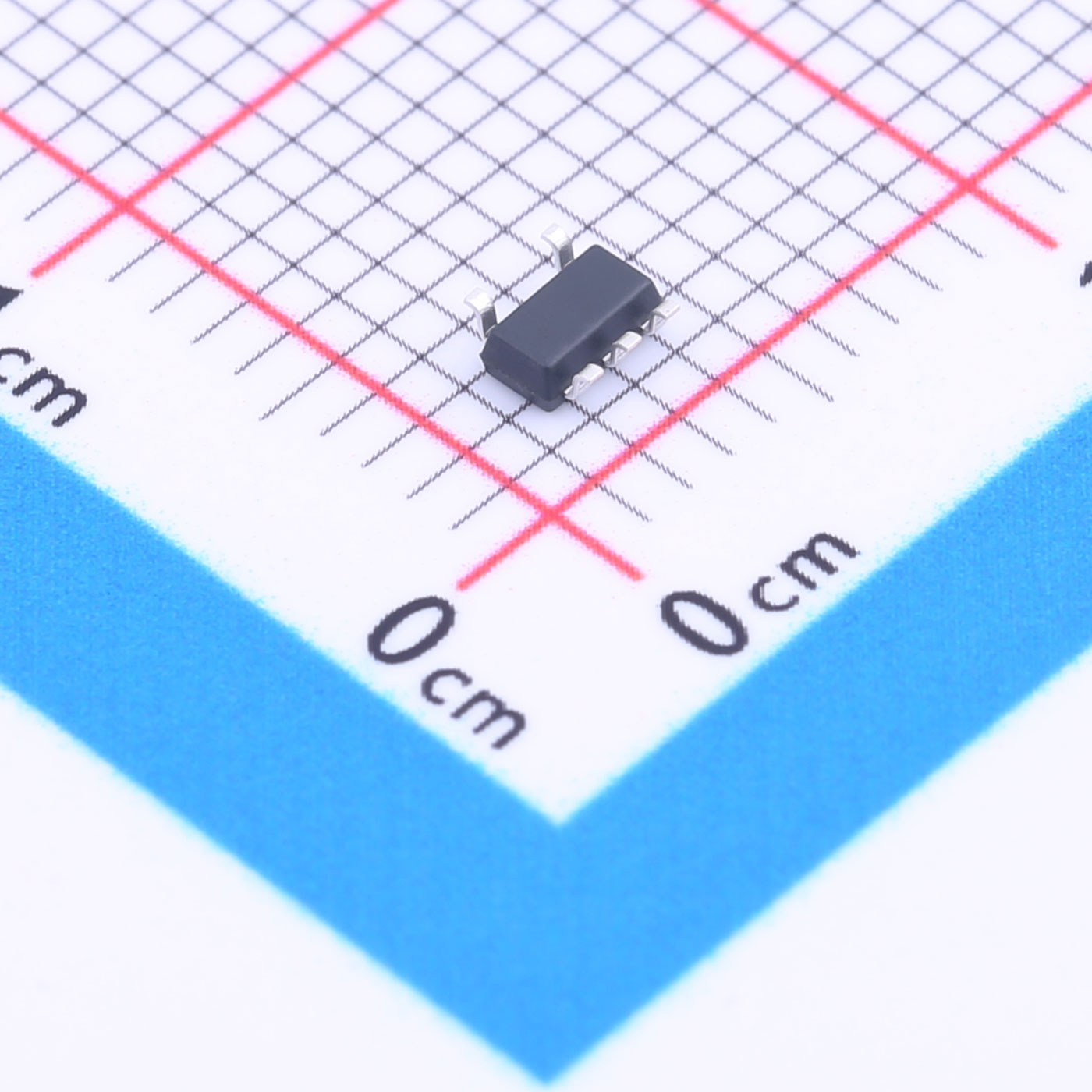

SOT-23 package is adopted for LMV321. Generally speaking, LMV321 is an operational amplifier with low power consumption and wide power supply ranges, which can be designed for various applications with favorable price.
Characteristics
●VCC = 5V, TA = 25°C. Typical value, unless otherwise specified
●Gain bandwidth product: 1MHZ
●Low Supply current 430μA
●Low input bias current 45nA
●Volt Current Condenser Input +3V to 5.5V
●Stable unit gains
●Stable high capacitor loads
Applications
●Charger
●Power adapter
●Sensor interface
●Piezoelectric sensor amplifier
●Medical instruments
●Audio output
●Mobile communication portable system

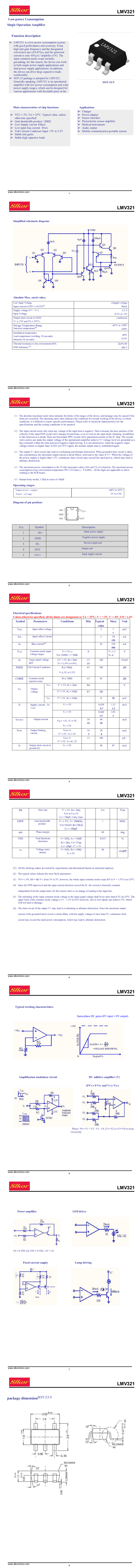

| File Name | Title | Description |
|---|---|---|
| LMV321.pdf | LMV321 | - |
