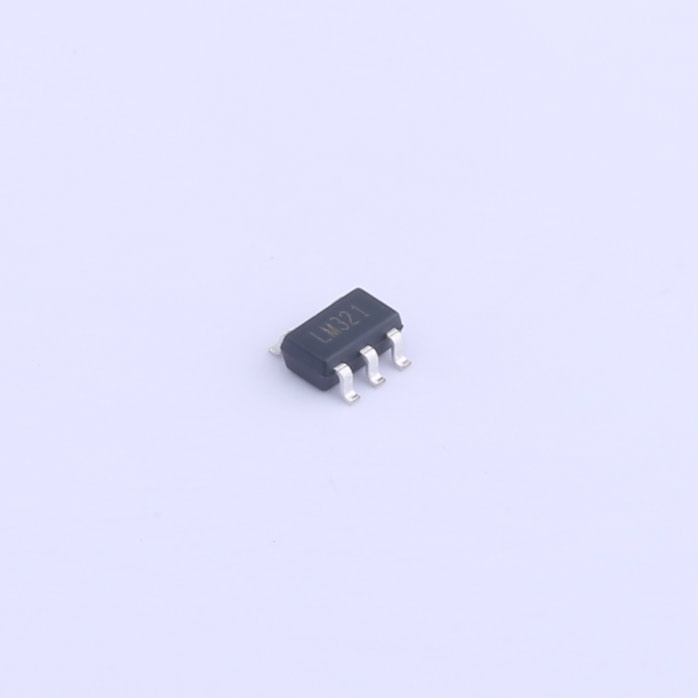

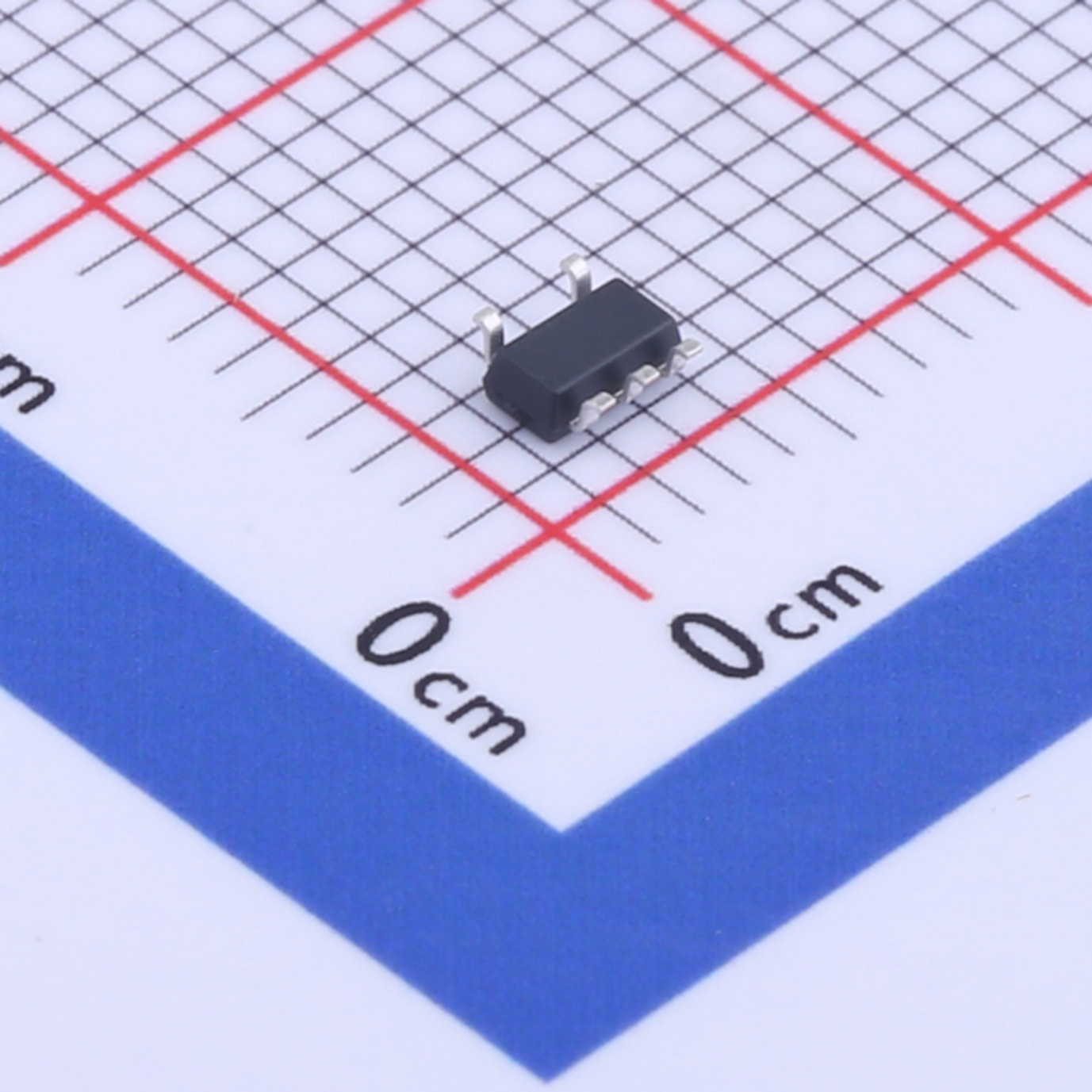

LM321 is a low power, wide power range performance operational amplifier；The static current is only 430 μA per amplifier (5V) with high unit gain frequency and A voltage swing rate of 0.4V/μs.Input common model circuit includes ground, so the device can operate in single - and dual-power applications.It can also comfortably drive large capacity loads.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
LM321 is a low power, wide power range performance operational amplifier；The static current is only 430 μA per amplifier (5V) with high unit gain frequency and A voltage swing rate of 0.4V/μs.Input common model circuit includes ground, so the device can operate in single - and dual-power applications.It can also comfortably drive large capacity loads.
Features
●Low quiescent current
●Low input bias current
●Wide range of supply voltage
●High capacity load stability
Applications
●Communication infrastructure
●Battery charger
●Power supply

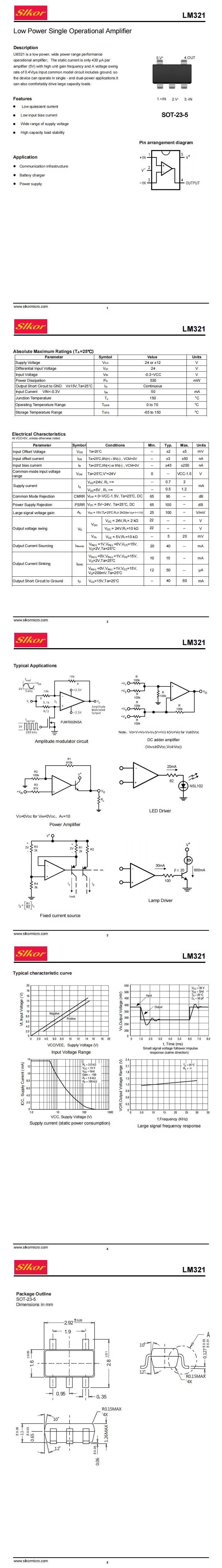

| File Name | Title | Description |
|---|---|---|
| LM321.PDF | LM321 | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
