The 78MXXA series of three-terminal package with several fixed output voltages making it useful in a wide range of applications.
Download datasheet Inquiry
Three-Terminal Low Current Positive Voltage Regulators
Description
lThe 78MXXA series of three-terminal package with several fixed output voltages making it useful in a wide range of applications.
Features
lWide range of available,fixed output voltage.
lLow cost.
lInternal short-circuit current limiting.
lInternal thermal overload protection.
lNo extermal components required.
lComplementary negative regulators offered (SL79LXX series).
Application
lThree-terminal positive voltage regulator.
| File Name | Title | Description |
|---|---|---|
| SL78L10 SOT-89.pdf | SL78L10 SOT-89 | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.

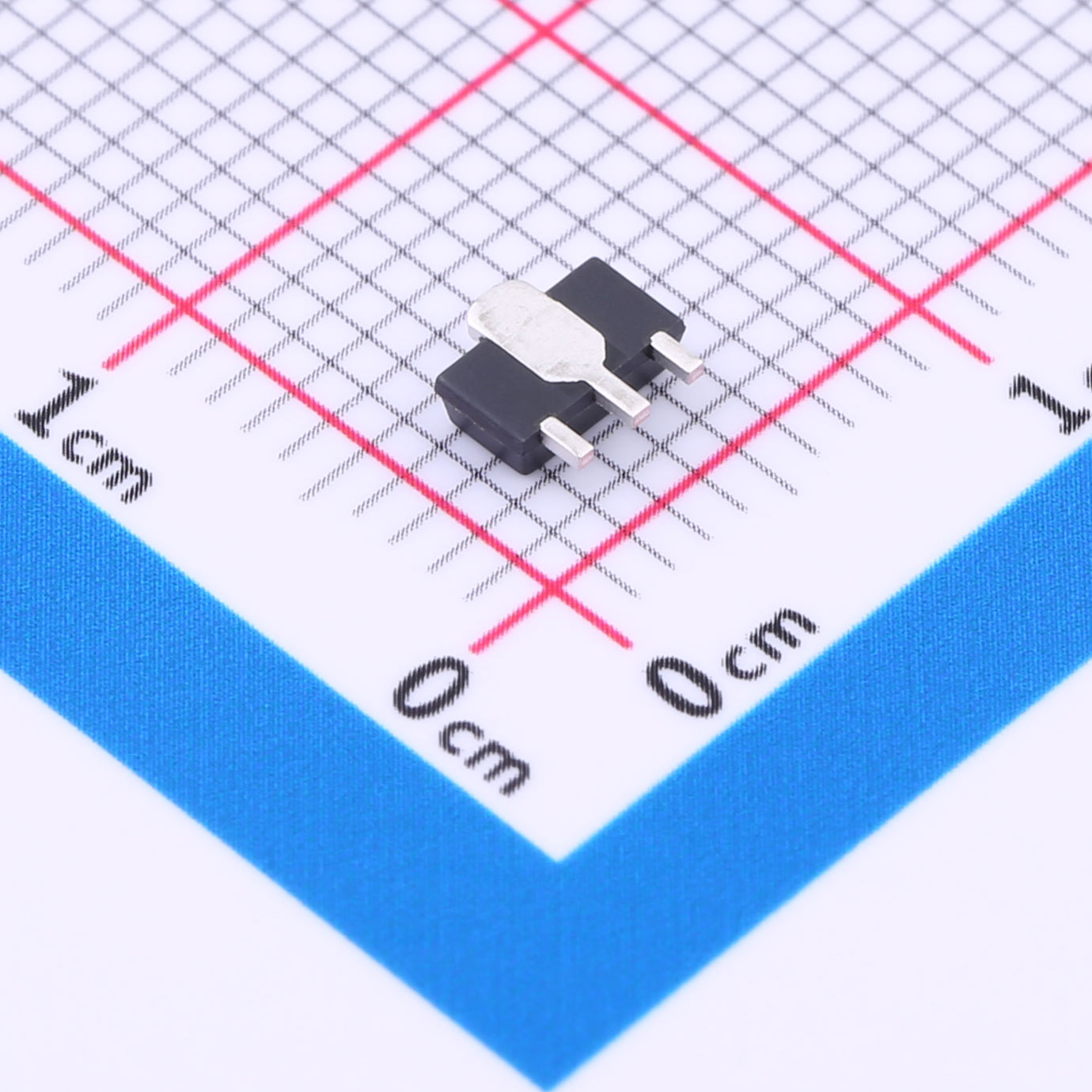

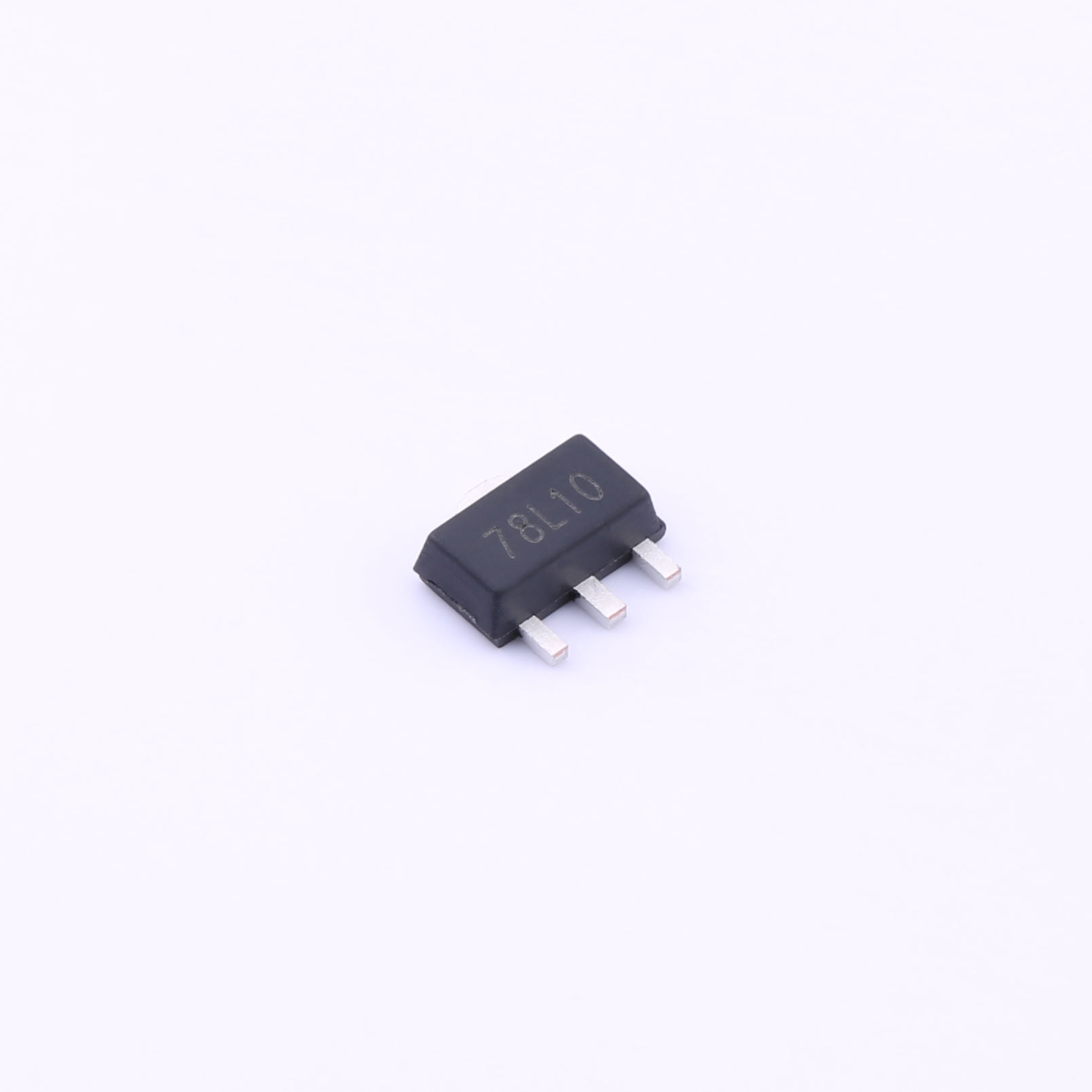

SOT-89 Encapsulate Three terminal voltage regulators
