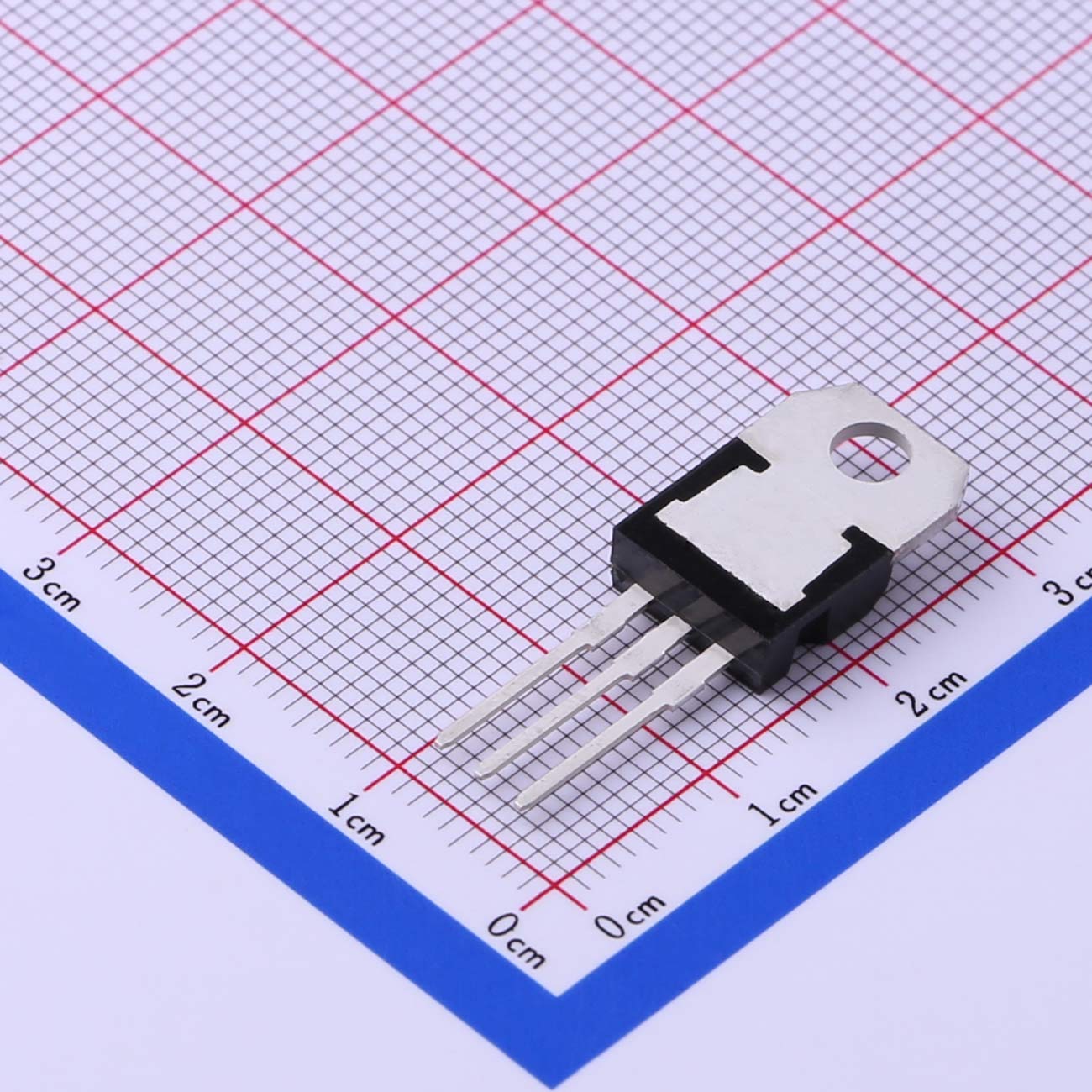

?The SL7812 is a high-performance voltage regulator designed to deliver a stable 12V output from a wide range of input voltages. Encased in a durable TO-220 package, this regulator efficiently handles input voltages up to 40V, ensuring reliable power regulation for diverse electronic applications. With a low dropout voltage (Vdrop) of 2V and capable of providing up to 1A of output current, the SL7812 is optimized for efficiency and heat dissipation, making it suitable for both commercial and industrial use.
Download datasheet Inquiry
Our advantages:
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description:
The SL7812 is a high-performance voltage regulator designed to deliver a stable 12V output from a wide range of input voltages. Encased in a durable TO-220 package, this regulator efficiently handles input voltages up to 40V, ensuring reliable power regulation for diverse electronic applications. With a low dropout voltage (Vdrop) of 2V and capable of providing up to 1A of output current, the SL7812 is optimized for efficiency and heat dissipation, making it suitable for both commercial and industrial use.
Features:
● Output Current up to 1A
● Fixed output voltage of 5V, 6V, 8V, 9V, 10V, 12V,15V, 18V and 24V available
● Thermal overload shutdown protection
● Short circuit current limiting
● Output transistor SOA protection
● RoHS Compliance
Applications:
● High Efficiency Linear Regulator
● Post Regulation for Switching Supply
● Microprocessor Power Supply
● Mother Board
| File Name | Title | Description |
|---|---|---|
| SL7815.pdf | SL7815 | - |
