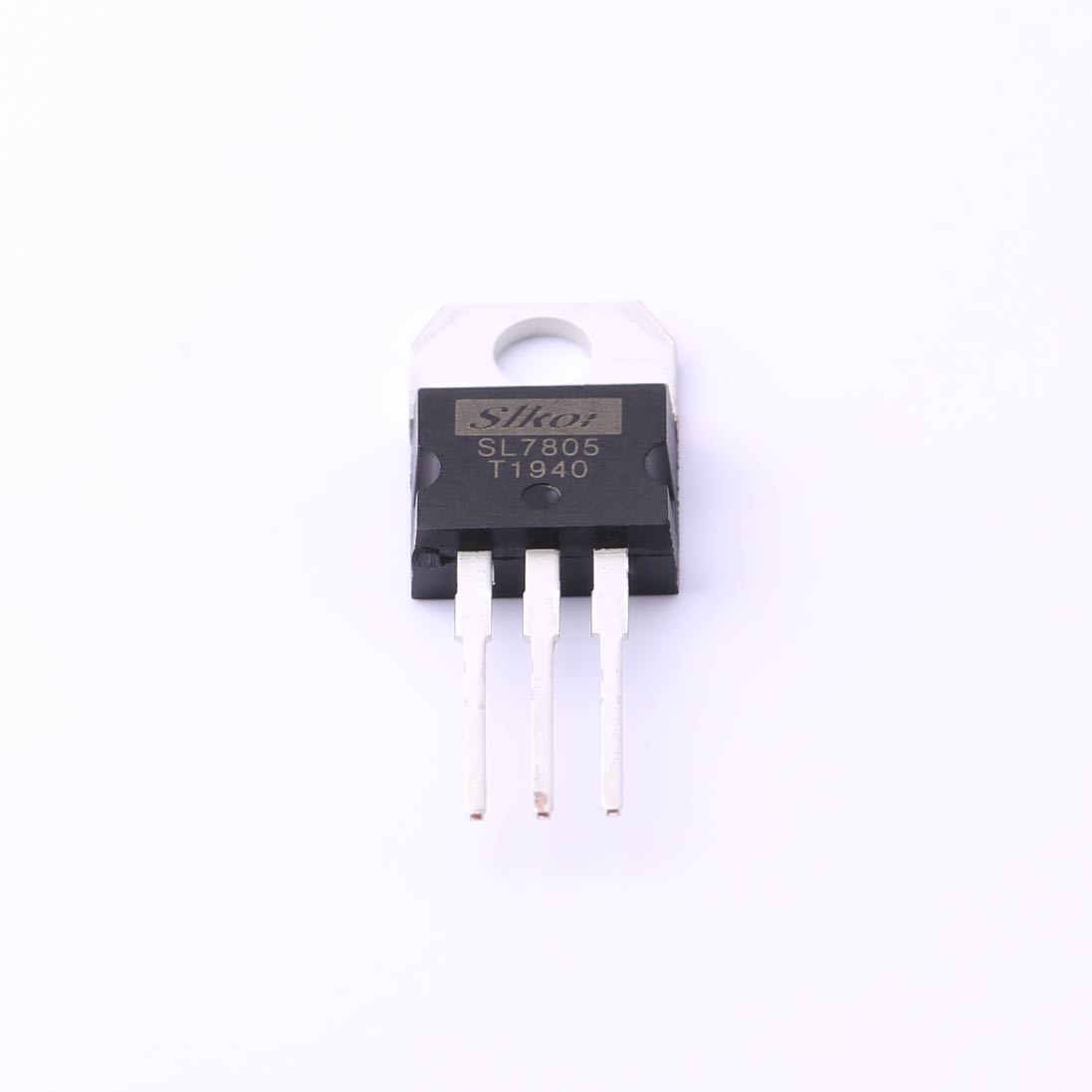

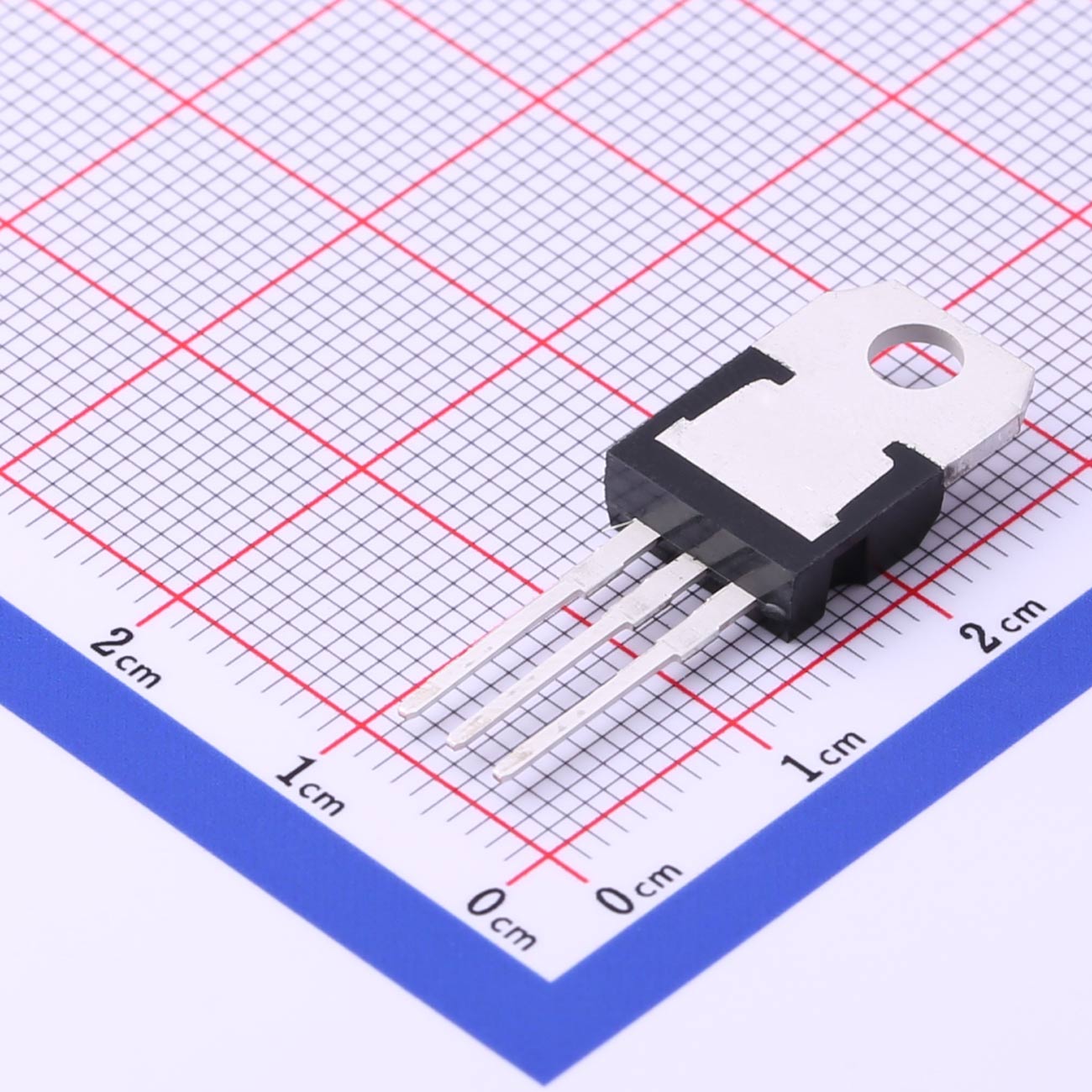

The SL7805 is a Low dropout (LDO) voltage regulator designed to provide a stable 5V output from a higher input voltage source. Enclosed in a robust TO-220 package, this regulator can accept input voltages up to 25V, making it suitable for a wide range of applications where reliable voltage regulation is critical. With a dropout voltage (Vdrop) of 2V and a maximum output current (IOUT) of 1A, the SL7805 efficiently regulates power while minimizing energy loss and heat dissipation.
Download datasheet Inquiry
Our advantages:
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description:
The SL7805 is a Low dropout (LDO) voltage regulator designed to provide a stable 5V output from a higher input voltage source. Enclosed in a robust TO-220 package, this regulator can accept input voltages up to 25V, making it suitable for a wide range of applications where reliable voltage regulation is critical. With a dropout voltage (Vdrop) of 2V and a maximum output current (IOUT) of 1A, the SL7805 efficiently regulates power while minimizing energy loss and heat dissipation.
Features:
● Output Current up to 1A
● Fixed output voltage of 5V, 6V, 8V, 9V,
10V, 12V,15V, 18V and 24V available
● Thermal overload shutdown protection
● Short circuit current limiting
● Output transistor SOA protection
● RoHS Compliance
Applications:
● High Efficiency Linear Regulator
● Post Regulation for Switching Supply
● Microprocessor Power Supply
● Mother Board
