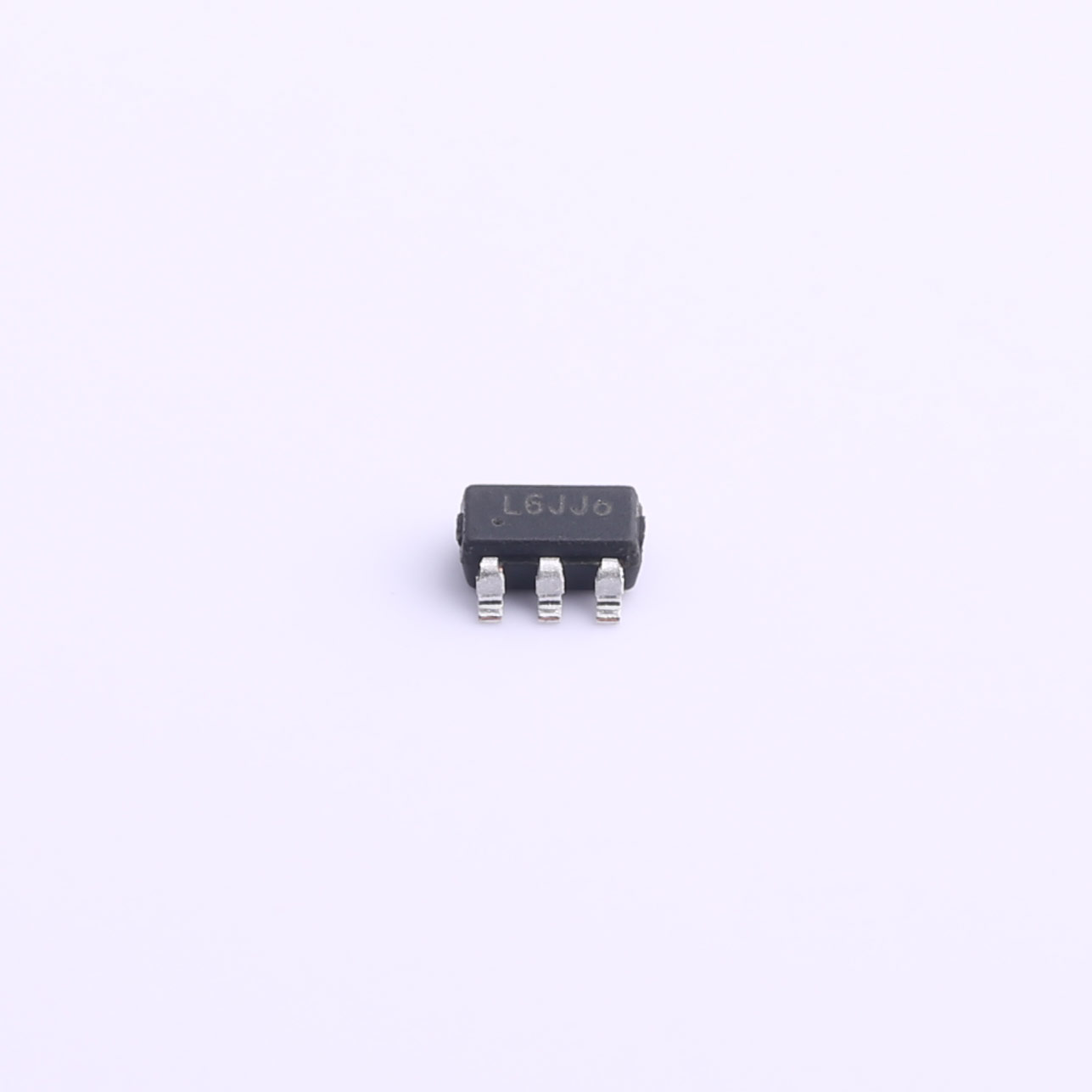

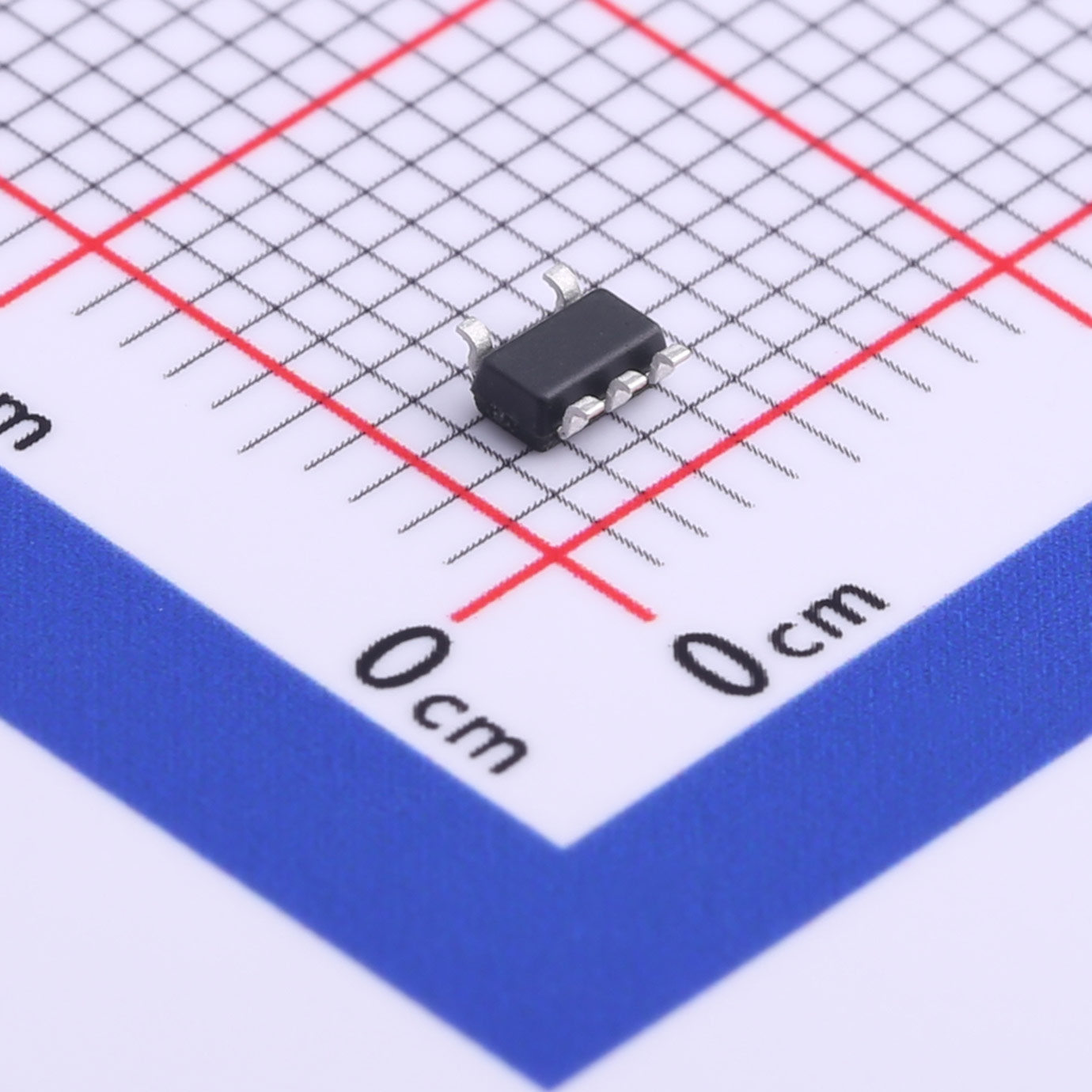

The SL6206 series products are high performance and low dropout linear regulators. The SL6206 series products support maximum 300 mA output current with low quiescent current and high PSRR. The SL6206 series products is stable with ceramic output capacitor from 2.2 μF to 10 μF. The SL6206 series products have a high PSRR with 60 dB at 1 KHz. This feature makes SL6206 series products very suitable for power-sensitive applications with high noise from previous stage power supply. As low as 50 μA quiescent current and shutdown current makes the SL6206 series products ideal choices for portable devices with battery power supply.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The SL6206 series products are high performance and low
dropout linear regulators. The SL6206 series products support
maximum 300 mA output current with low quiescent current and
high PSRR. The SL6206 series products is stable with ceramic
output capacitor from 2.2 μF to 10 μF.
The SL6206 series products have a high PSRR with 60 dB at 1
KHz. This feature makes SL6206 series products very suitable
for power-sensitive applications with high noise from previous
stage power supply. As low as 50 μA quiescent current and
shutdown current makes the SL6206 series products ideal
choices for portable devices with battery power supply.
Features
? Input Voltage Range: 2.5 V to 5.5 V
? Output Voltage Options:
◆ Fixed Voltage: 1.2 V, 1.8 V, 2.5 V, 2.8 V, 3 V, 3.3 V
◆ Adjustable Voltage: 0.8 V to 5 V
? ±2% Output Accuracy Through Operating Conditions
? Maximum Output Current: 300 mA
? Low dropout Voltage: 200 mV at 300 mA
? Low Quiescent Current and Shutdown Current
? Foldback Current Limit and Thermal Protection
? Stable with 2.2 μF Ceramic Capacitor
? Soft-start Limits Input Current Surge During Enable
? Thermal Shutdown Protection
? Junction Temperature Range: ?40°C to +125°C
Applications
? Handheld Devices with Battery Power Supply
? Video Surveillance
? Wireless and IoT modules

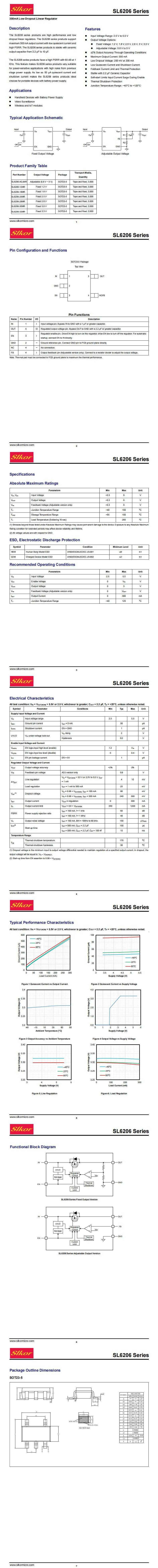

| File Name | Title | Description |
|---|---|---|
