High Input Impedance
Maximum junction temperature 175°C
High Speed Switching & Low Power Loss
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description:

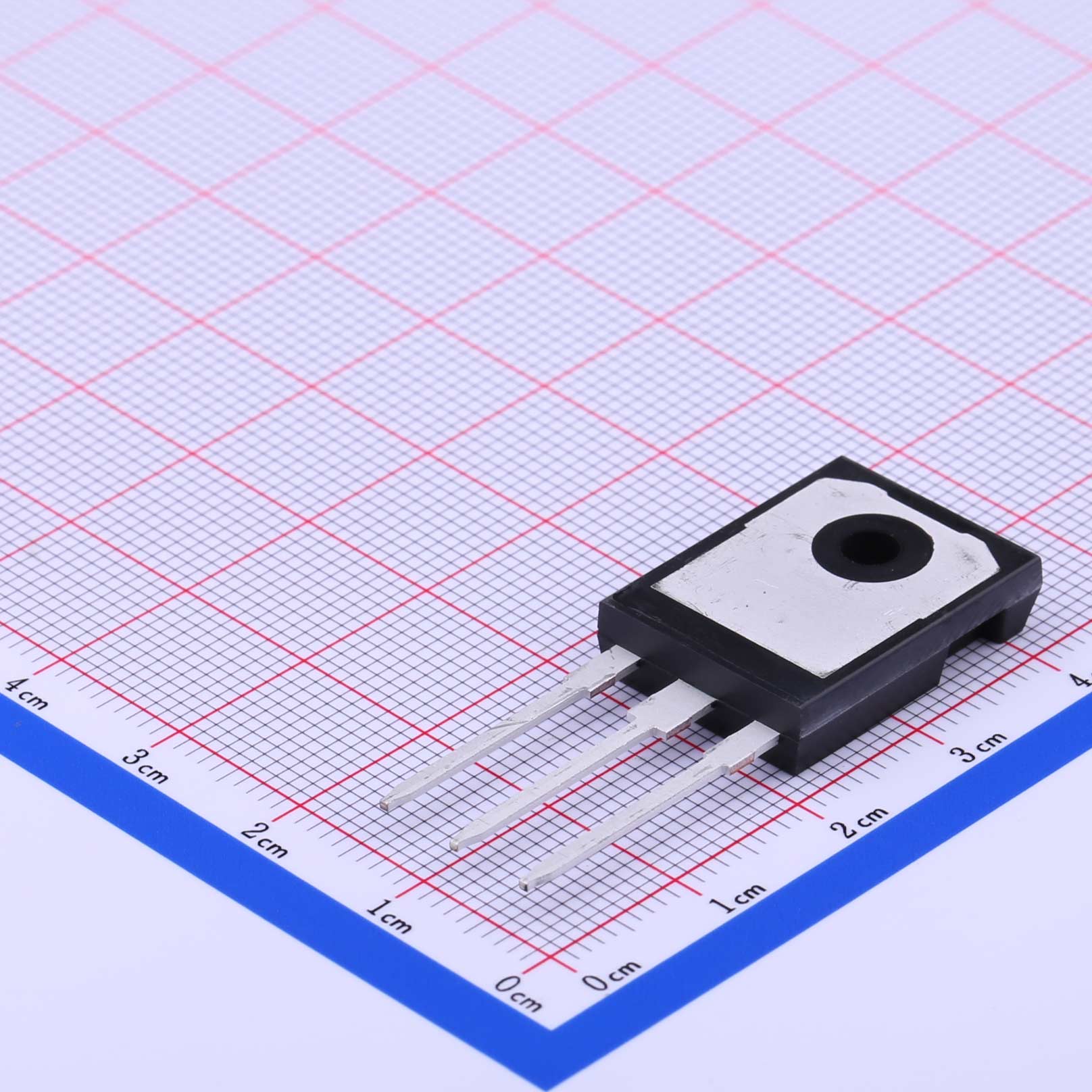

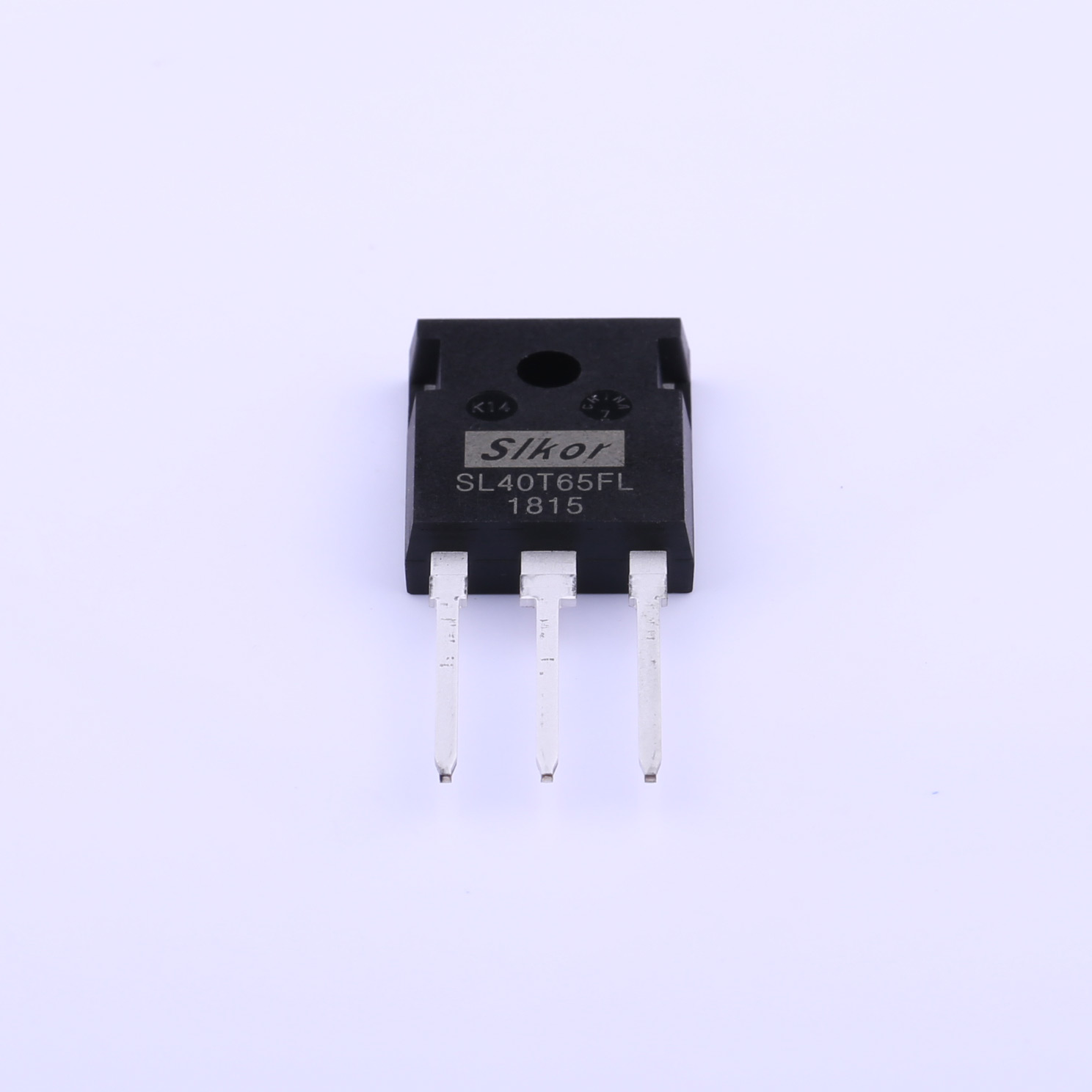

The SL40T65FL is a high-performance Insulated Gate Bipolar Transistor (IGBT) designed to deliver robust power handling capabilities in various industrial applications. With a voltage rating of 650V and a maximum collector current of 40A at a junction temperature of 100℃, this IGBT is engineered to provide efficient and reliable operation under demanding conditions. It is housed in a TO-247 package, ensuring ease of installation and thermal management.
Features
● High Speed Switching & Low Power Loss
● VCE(sat) = 1.95V @ IC = 40A
● Eoff = 0.35mJ @ TC = 25°C
● High Input Impedance
● trr = 80ns (typ.) @diF/dt = 1000A/ μs
● Maximum junction temperature 175°C
Applications
● PFC
● UPS
● PV Inverter
● Welder
● IH Cooker
| File Name | Title | Description |
|---|---|---|
| SL40T65FL.PDF | SL40T65FL | - |
| Proposition-65-Compliance-Report_1.pdf | Proposition 65 Compliance Report_1 | - |
| Proposition-65-Compliance-Report_2.pdf | Proposition 65 Compliance Report_2 | - |
| REACH.pdf | REACH | - |
| RoHS-1.pdf | RoHS | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
VCE(V)：650V IC@TC=100℃(A):80A PD@TC=25℃(W):375W TJ（℃）：-40~175℃ Package：TO-247
Low gate charge Trench FS Technology RoHS product
Low gate charge Trench FS Technology RoHS product
VCE(V)：1200V IC@TC=100℃(A):80A PD@TC=25℃(W):718W TJ（℃）：-55~175℃ Package：TO-247
VCE(V)：1200V IC@TC=100℃(A):30A PD@TC=25℃(W):125W TJ（℃）：-55~150℃ Package：TO-247
VCE(V)：1200V IC@TC=100℃(A):50A PD@TC=25℃(W):350W TJ（℃）：-55~150℃ Package：TO-247
Low gate charge Trench FS Technology RoHS product
Low gate charge Trench FS Technology RoHS product
