Description

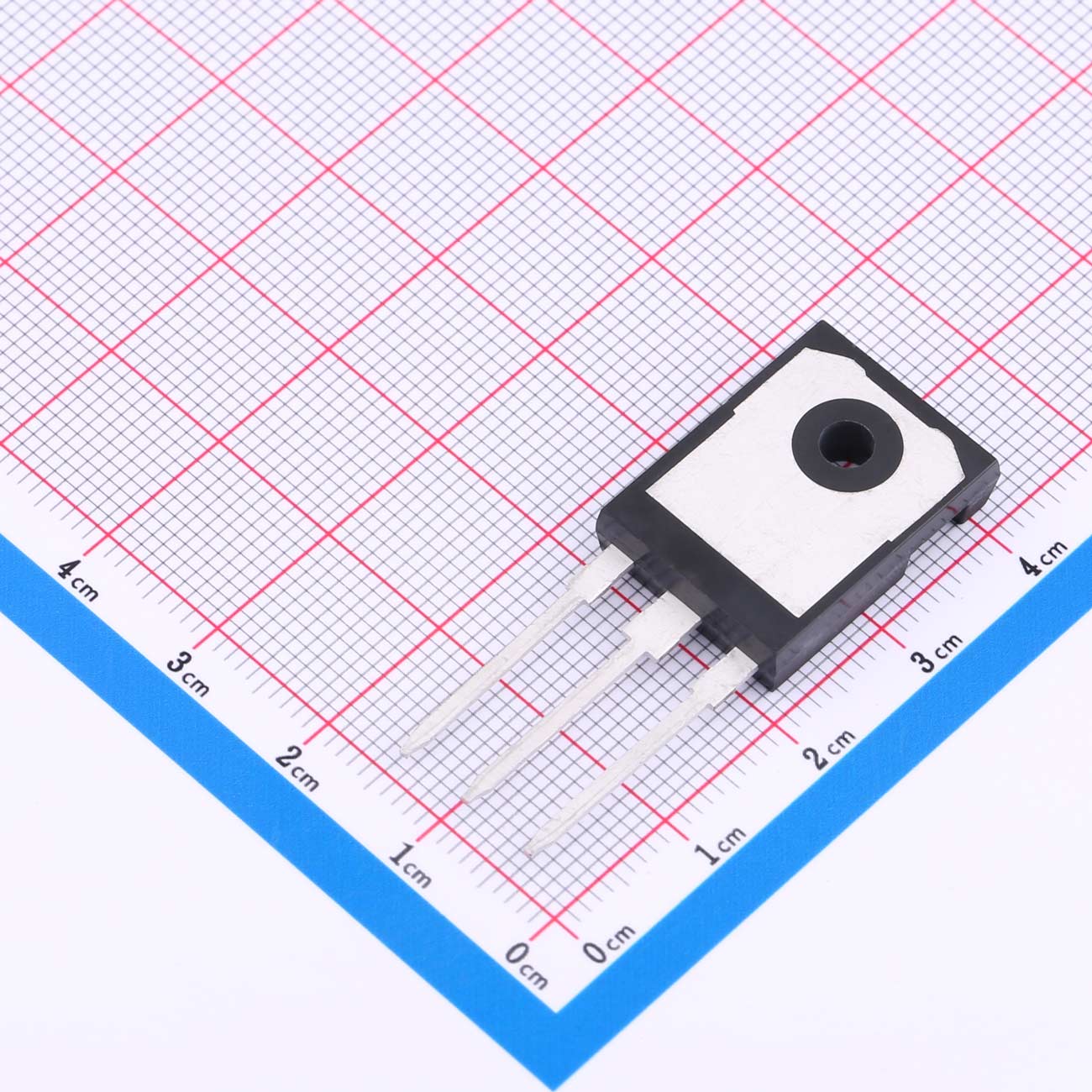

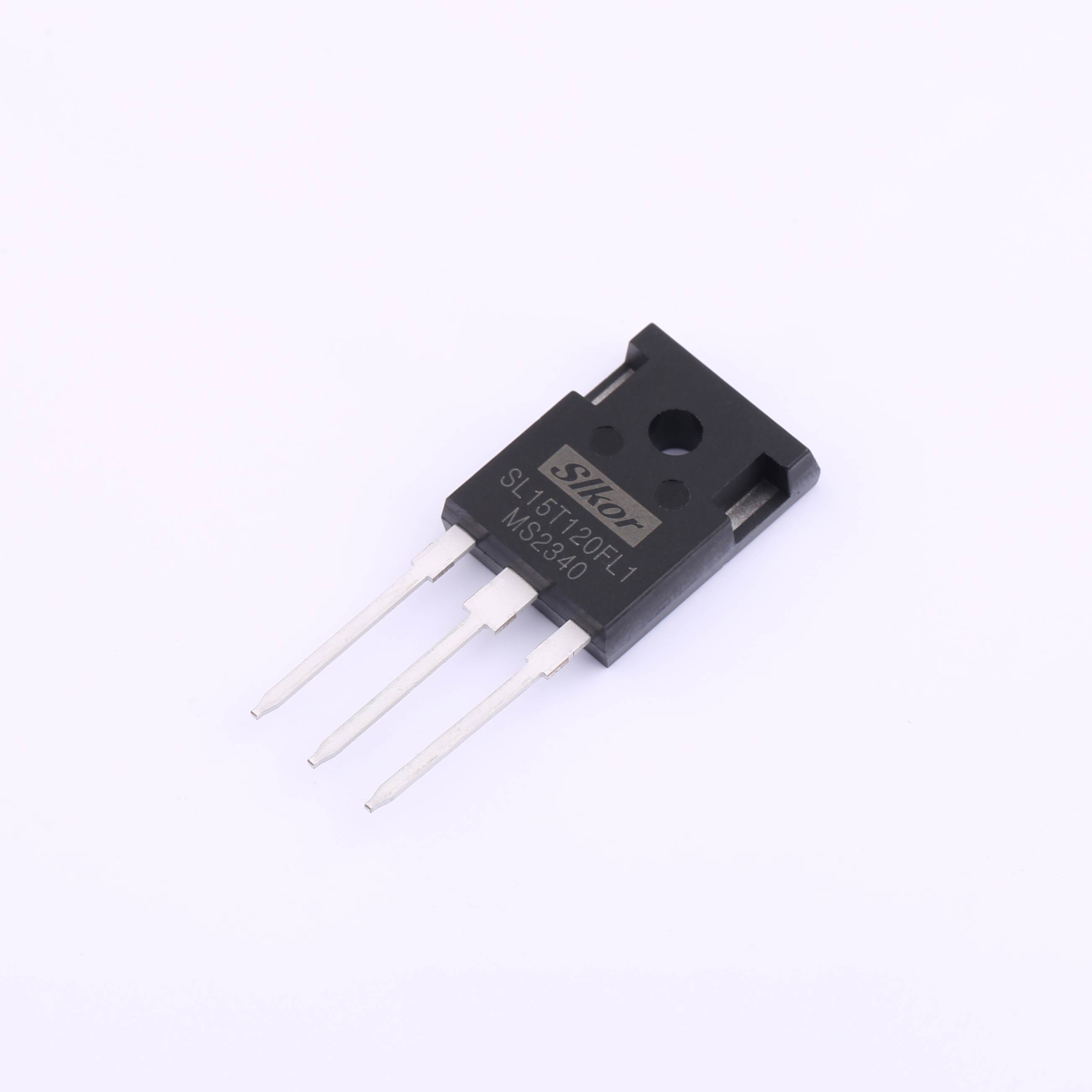

The SL15T120FL1 is a high-performance Insulated Gate Bipolar Transistor (IGBT) designed to meet demanding power switching requirements. Encased in a robust TO-247 package, this device offers exceptional voltage and current handling capabilities. It is ideal for a wide range of industrial, automotive, and consumer applications where high efficiency and reliability are crucial.
FEATURES
● Low gate charge
● Trench FS Technology
● RoHS product
Application
● General purpose inverters
● Induction heating(IH)
● UPS
| File Name | Title | Description |
|---|---|---|
| SL15T120FL1 TO-247.pdf | SL15T120FL1 TO-247 | - |
| Proposition-65-Compliance-Report_1.pdf | Proposition 65 Compliance Report_1 | - |
| Proposition-65-Compliance-Report_2.pdf | Proposition 65 Compliance Report_2 | - |
| REACH.pdf | REACH | - |
| RoHS-1.pdf | RoHS | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
Low gate charge Trench FS Technology RoHS product
High Input Impedance Maximum junction temperature 175°C High Speed Switching & Low Power Loss
VCE(V)：1200V IC@TC=100℃(A):80A PD@TC=25℃(W):718W TJ（℃）：-55~175℃ Package：TO-247
VCE(V)：1200V IC@TC=100℃(A):30A PD@TC=25℃(W):125W TJ（℃）：-55~150℃ Package：TO-247
VCE(V)：1200V IC@TC=100℃(A):50A PD@TC=25℃(W):350W TJ（℃）：-55~150℃ Package：TO-247
VCE(V)：650V IC@TC=100℃(A):80A PD@TC=25℃(W):375W TJ（℃）：-40~175℃ Package：TO-247
