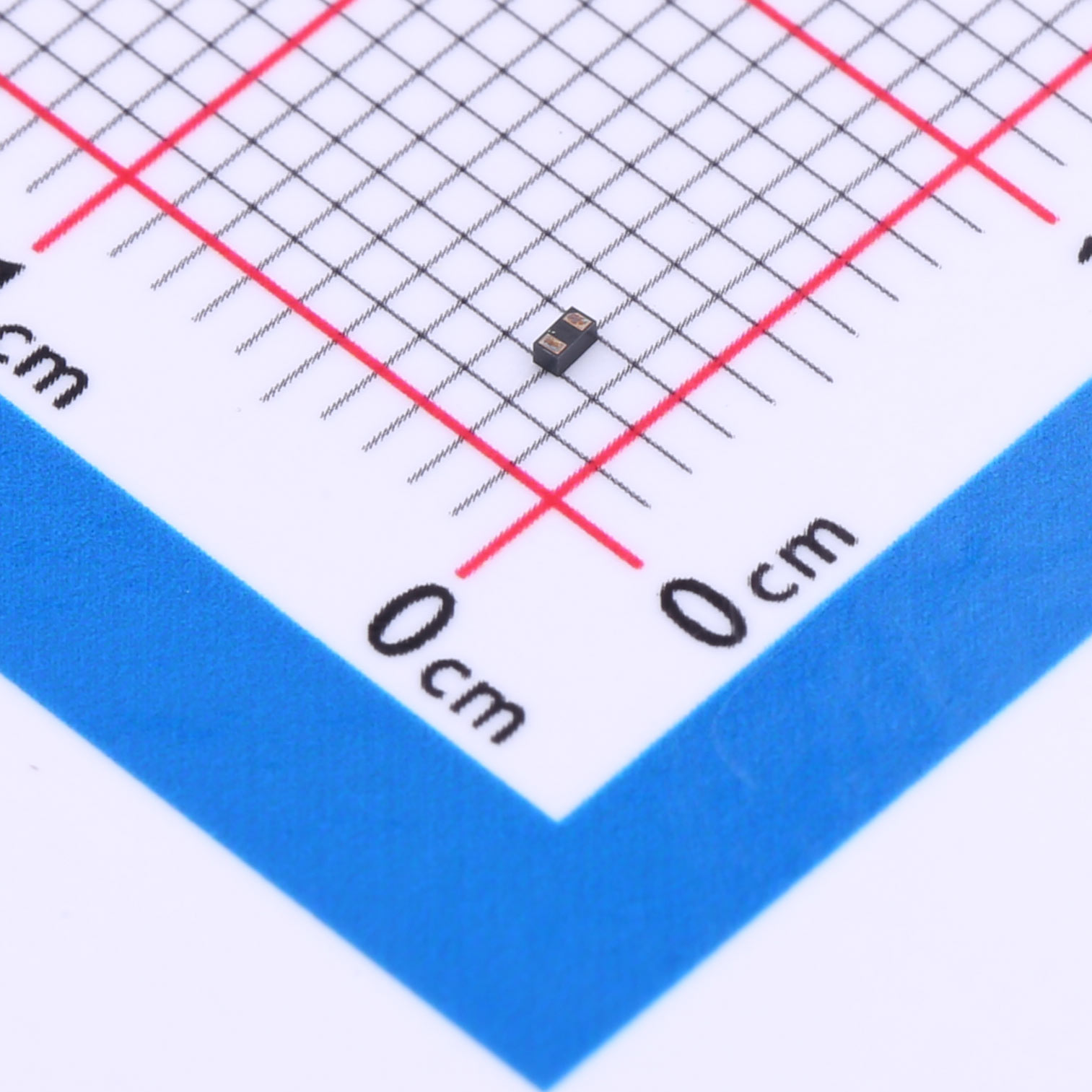

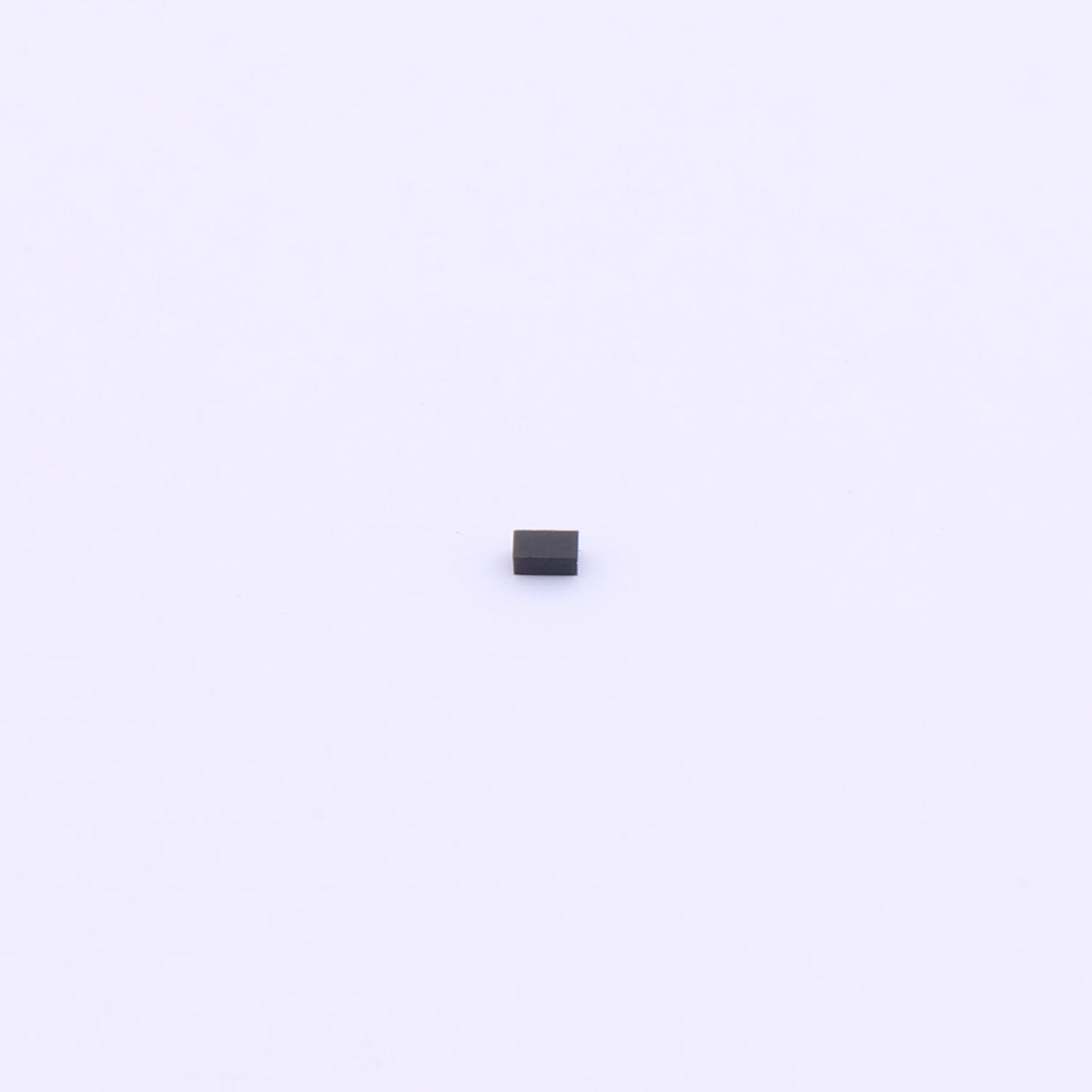

Introducing the WE05DF-BS, a highly efficient ESD protection diode designed to safeguard sensitive electronic components from electrostatic discharge (ESD) and transient voltage spikes. Encapsulated in the compact DFN1006 package, this diode provides robust protection while occupying minimal space on PCBs.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
Introducing the WE05DF-BS, a highly efficient ESD protection diode designed to safeguard sensitive electronic components from electrostatic discharge (ESD) and transient voltage spikes. Encapsulated in the compact DFN1006 package, this diode provides robust protection while occupying minimal space on PCBs.
Features
● Capacitance: 15pF(typ.)
● Reverse Working Voltage: 5V
● IEC 61000-4-2 (ESD Air): ±25KV
IEC 61000-4-2 (ESD Contact): ±25KV
IEC 61000-4-5 (Lightning 8/20μs): 5A
Application
● Smart Phone and Tablet PC
● TV and Set Top Box
● Wearable Devices
● PDA
| File Name | Title | Description |
|---|---|---|

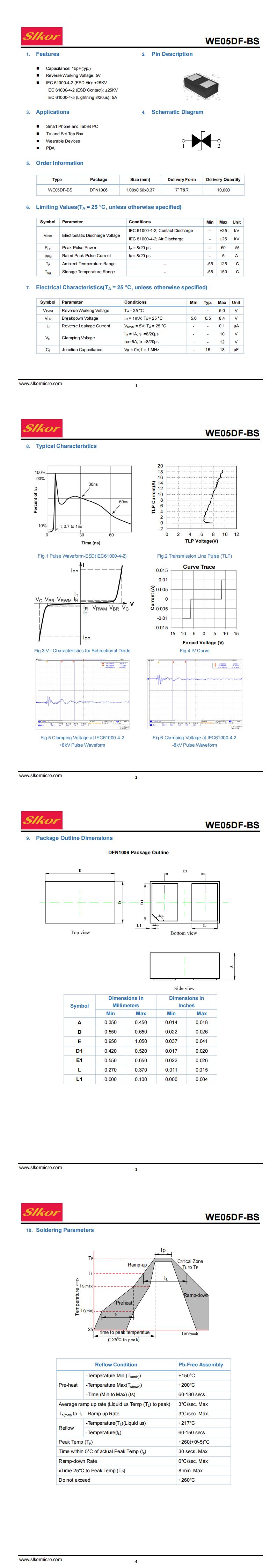

| WE05DF-BS DFN1006.pdf | WE05DF-BS DFN1006 | - |
