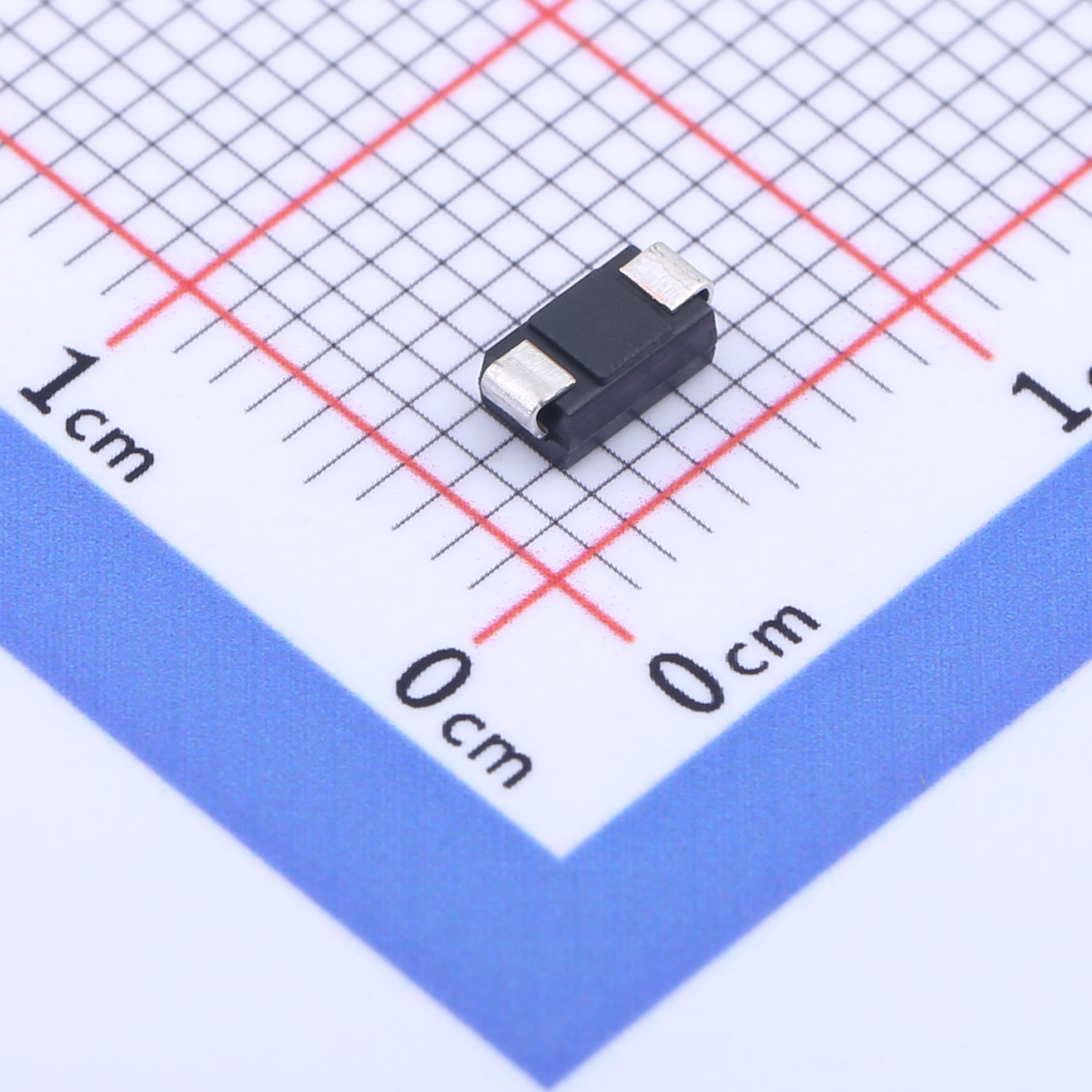

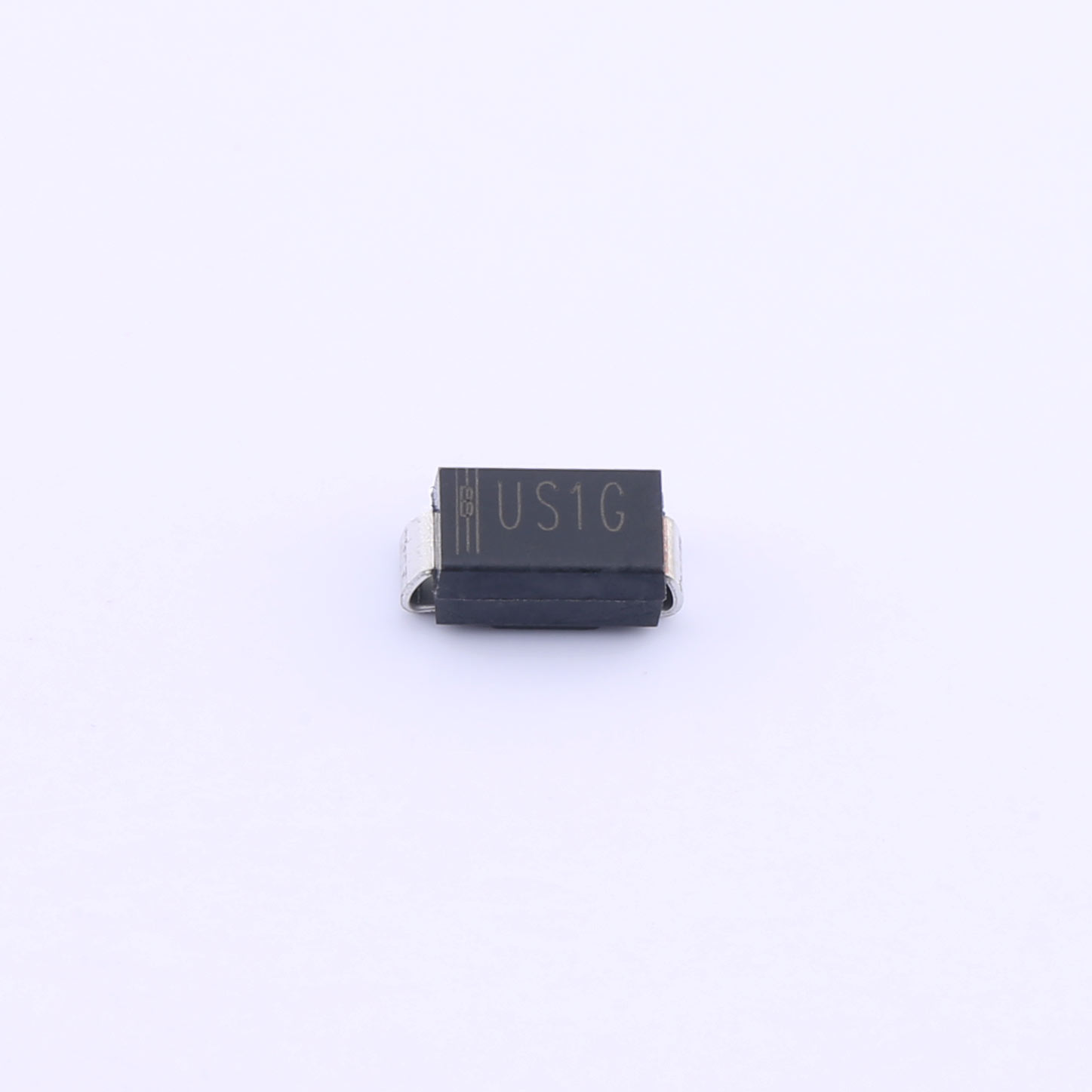

Introducing the US1G, an advanced surface mount ESD protection diode designed to safeguard sensitive electronic circuits from electrostatic discharge (ESD) and transient voltage spikes. Housed in the compact SMA package, this diode provides robust protection while maintaining high reliability and efficiency.
Download datasheet Inquiry
1.0A Surface Mount Ultra Fast Recovery Rectifier
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
Introducing the US1G, an advanced surface mount ESD protection diode designed to safeguard sensitive electronic circuits from electrostatic discharge (ESD) and transient voltage spikes. Housed in the compact SMA package, this diode provides robust protection while maintaining high reliability and efficiency.
Features
● Glass passivated junction chip
● Fast switching for high efficiency
● For surface mounted application
● High temperature soldering guaranteed: 250°C/10 seconds,
at terminals
● Plastic material used carries UL Classification 94V-0
● RoHS Compliance
Application
● Industrial Equipment: Protects control systems, PLCs, and industrial sensors from voltage surges and ESD events.
● Telecommunications: Essential for safeguarding telecom equipment such as routers, switches, and base stations from transient voltage spikes.
● Power Supplies: Ensures reliable operation of power supplies, inverters, and chargers by preventing damage from voltage transients.
● Consumer Electronics: Protects LCD displays, audio equipment, and other consumer electronics from ESD-related failures.

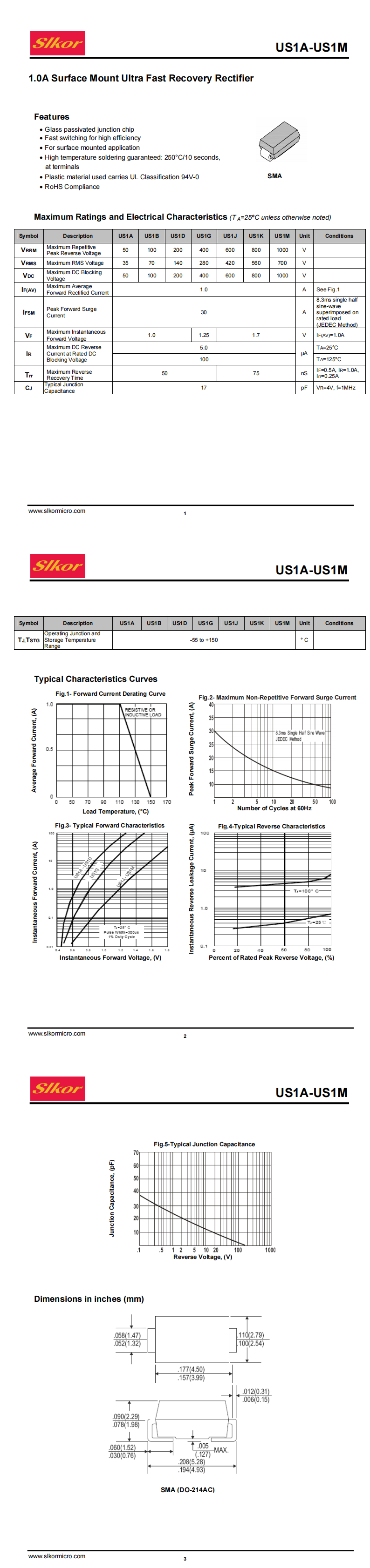

| File Name | Title | Description |
|---|---|---|
| US1G SMA.pdf | US1G SMA | - |
