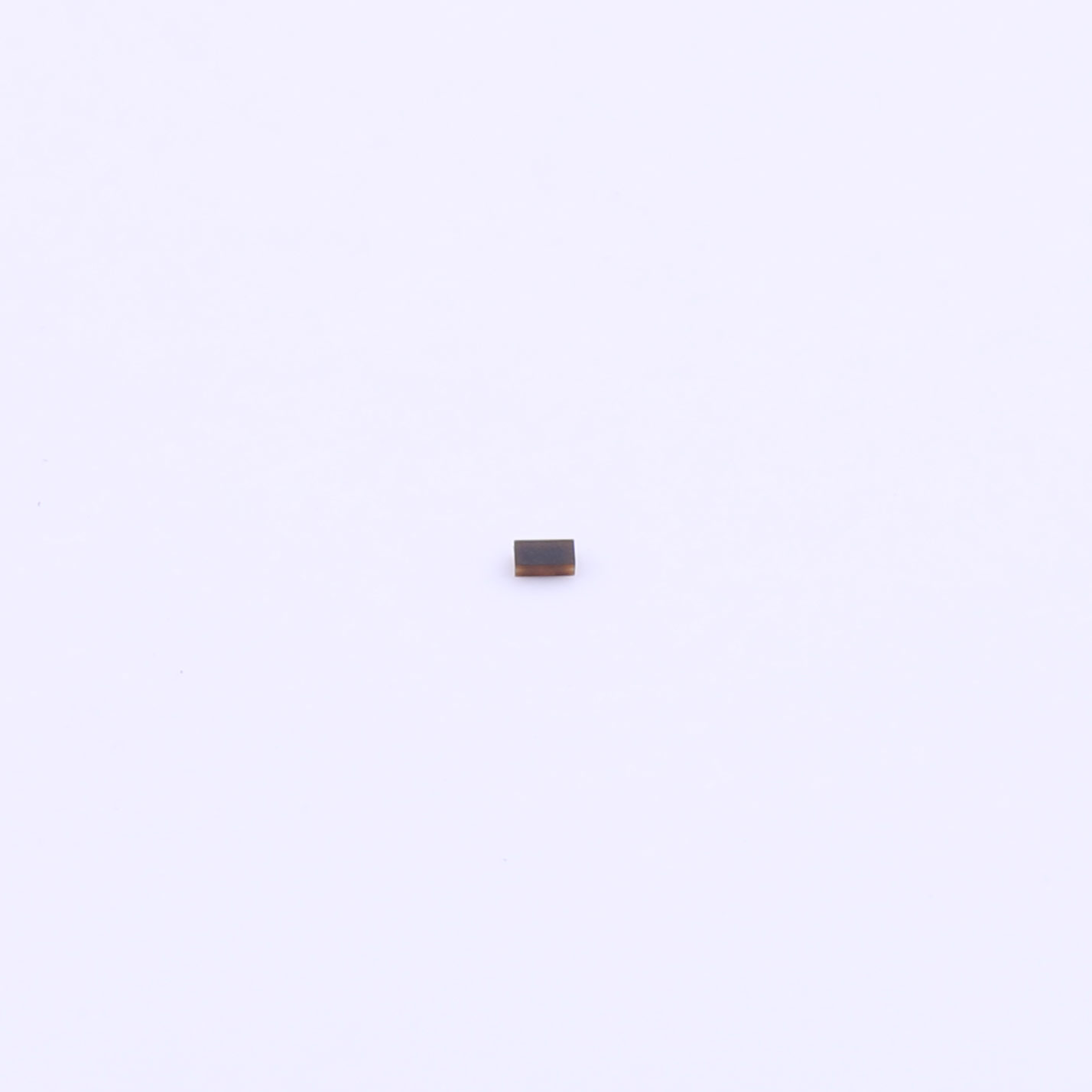

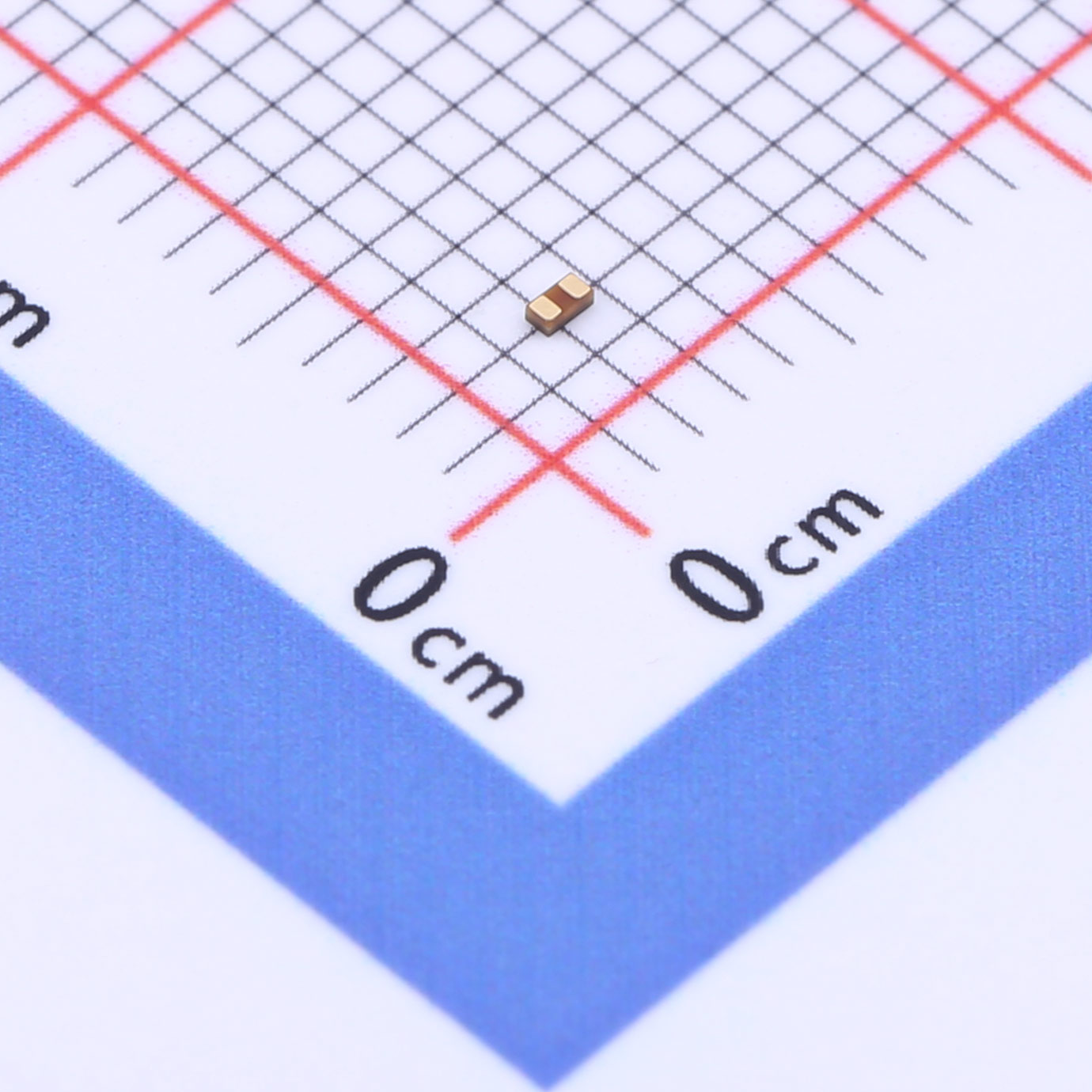

The SLPESD0542U005 is housed in a miniature 0402 package, making it ideal for space-constrained PCB designs where footprint efficiency is crucial. With an ultra-low reverse leakage current of 10nA, it ensures minimal power consumption during normal operation while providing robust protection against ESD events. The diode's clamping voltage of 40V efficiently suppresses transient voltages, safeguarding sensitive components without compromising signal integrity. Its ultra-low junction capacitance of 0.05pF minimizes signal distortion, making it suitable for high-speed data lines and RF applications.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The SLPESD0542U005 is housed in a miniature 0402 package, making it ideal for space-constrained PCB designs where footprint efficiency is crucial. With an ultra-low reverse leakage current of 10nA, it ensures minimal power consumption during normal operation while providing robust protection against ESD events. The diode's clamping voltage of 40V efficiently suppresses transient voltages, safeguarding sensitive components without compromising signal integrity. Its ultra-low junction capacitance of 0.05pF minimizes signal distortion, making it suitable for high-speed data lines and RF applications.
Features
● Ultra-Low capacitance:0.05pF(typ.)
● Low leakage current(<10nA)
● Fast response time(<1ns)
● Bi-directional,single line protection
● IEC 61000-4-2 (ESD Air): 15kV
IEC 61000-4-2 (ESD Contact): 8kV
Applications
● USB 3.0/3.1
● HDMI 1.3/1.4/2.0
● RF Antenna
● SATA and eSATA Interface
| File Name | Title | Description |
|---|---|---|

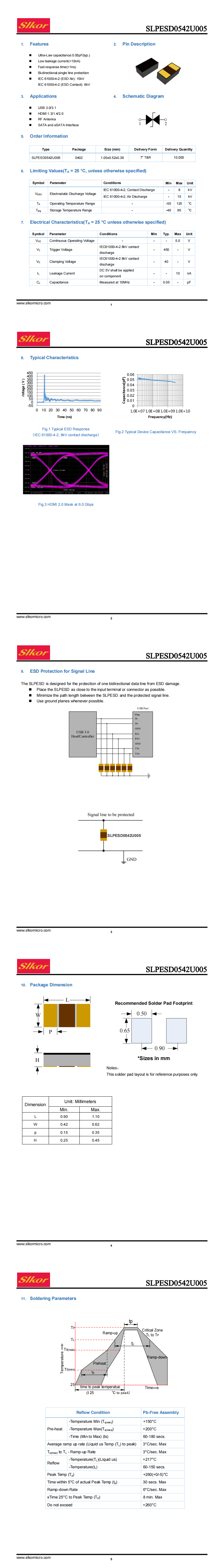

| SLPESD0542U005.pdf | SLPESD0542U005 | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
The SLESDPSA0402V05 is engineered to provide reliable protection for circuits with a maximum working voltage of 8V. Its low breakdown voltage, high clamping voltage, and extremely low junction capacitance make it ideal for applications where preserving signal integrity is critical.
The SLESD0402-V05 provides reliable protection for electronic circuits with a maximum working voltage of 5V. Its high breakdown voltage and low clamping voltage make it an excellent choice for safeguarding sensitive components in high-speed and precision applications.
The SLPESD0402-28 is a high-performance ESD protection diode designed for compact electronic circuits requiring robust transient voltage suppression. Encapsulated in the miniature 0402 package, it provides reliable protection against electrostatic discharge (ESD) while minimizing space on PCBs.
?The SLPESD0402-14 is an ultra-miniature ESD (Electrostatic Discharge) protection diode designed to safeguard sensitive electronic components and circuits from electrostatic discharge events. This diode offers robust protection with high surge capability and low capacitance, making it ideal for applications where protecting against ESD-induced damage is critical.
VRWM (max):5V VBR(min): 5.6V IR(max): 1μA VC(max): 9.5V Cj(max):15pF Package: DFN1006
VRWM (max):36V VBR(min): 40V IR(max): 1μA VC(max): 75V Cj(max):35pF Package: SOD-323
VRWM (max):24V VBR(min): 26.7V IR(max): 1μA VC(max): 52V Cj(max):50pF Package: SOD-323
VRWM (max):8V VBR(min): 8.5V IR(max): 1μA VC(max): 13.4V Cj(max):0.8pF Package: SOD-323
