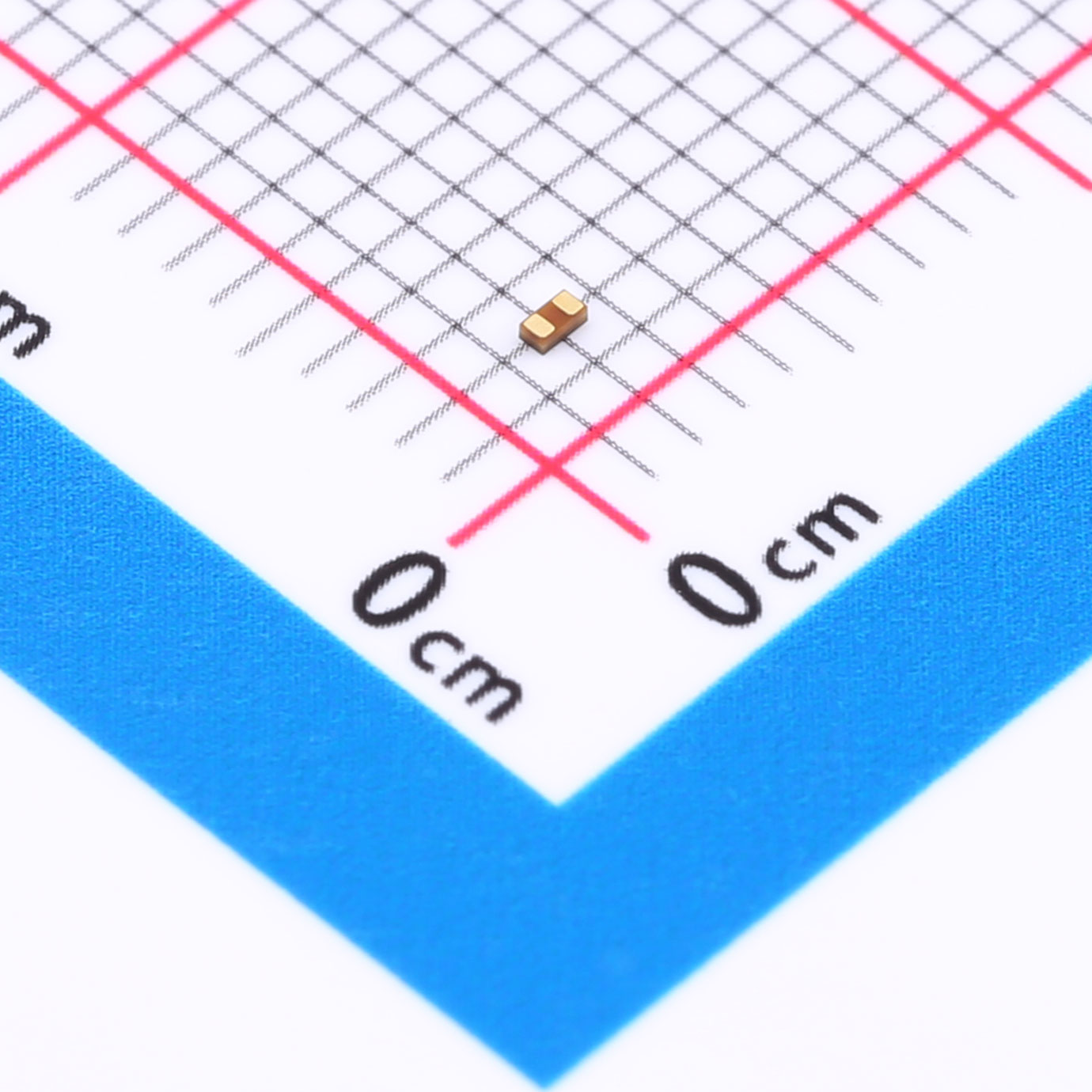

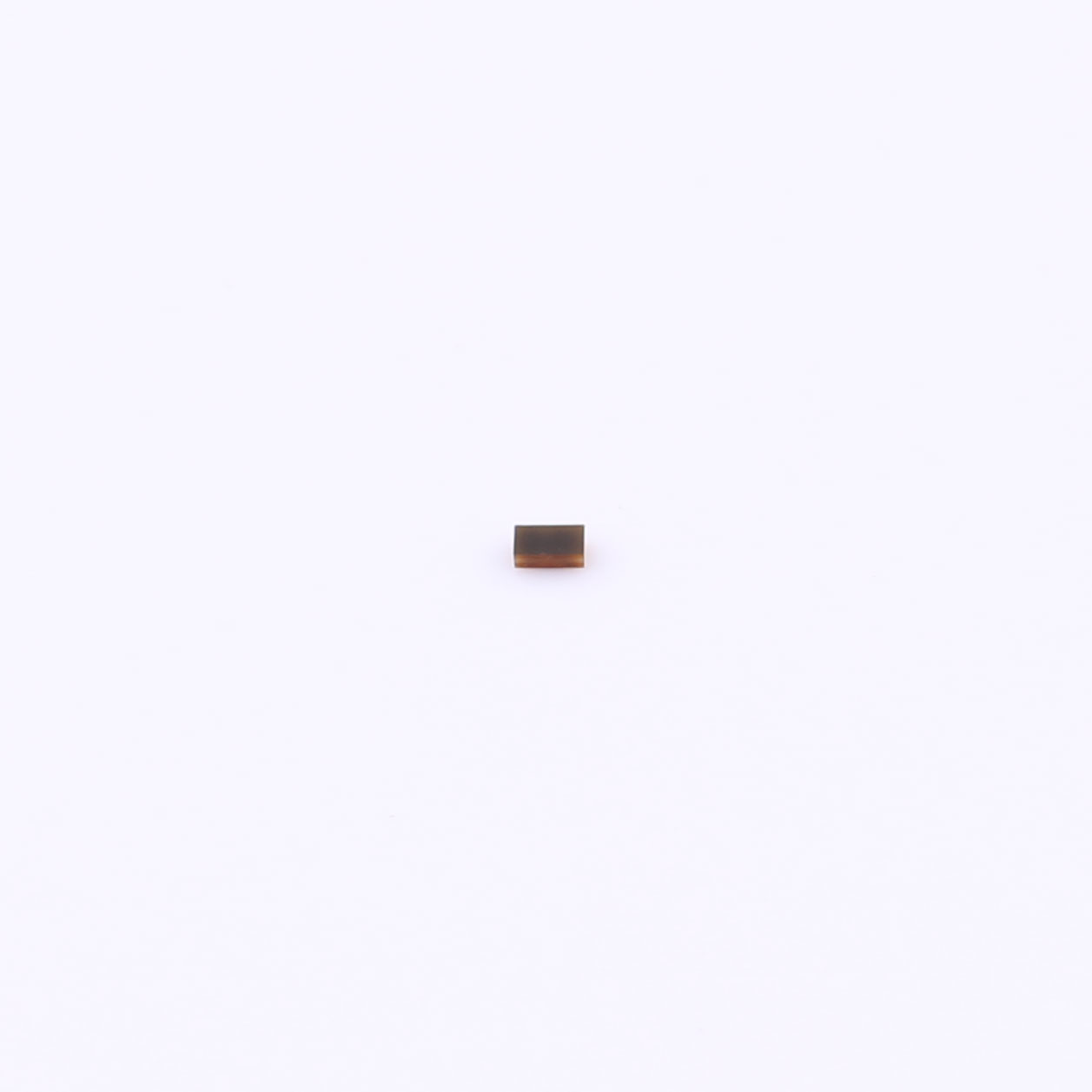

The SLESDPSA0402V05 is engineered to provide reliable protection for circuits with a maximum working voltage of 8V. Its low breakdown voltage, high clamping voltage, and extremely low junction capacitance make it ideal for applications where preserving signal integrity is critical.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The SLESDPSA0402V05 is engineered to provide reliable protection for circuits with a maximum working voltage of 8V. Its low breakdown voltage, high clamping voltage, and extremely low junction capacitance make it ideal for applications where preserving signal integrity is critical.
Features
● Ultra-Low capacitance:0.05pF(typ.)
● Low leakage current(<10nA)
● Fast response time(<1ns)
● Bi-directional,single line protection
● IEC 61000-4-2 (ESD Air): 15kV
IEC 61000-4-2 (ESD Contact): 8kV
Applications
● USB 3.0/3.1
● HDMI 1.3/1.4/2.0
● RF Antenna
● SATA and eSATA Interface
| File Name | Title | Description |
|---|---|---|

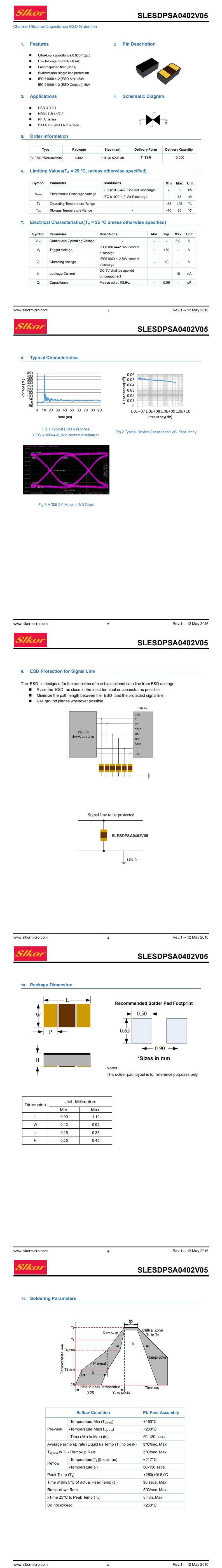

| SLESDPSA0402V05 0402.pdf | SLESDPSA0402V05 0402 | - |
